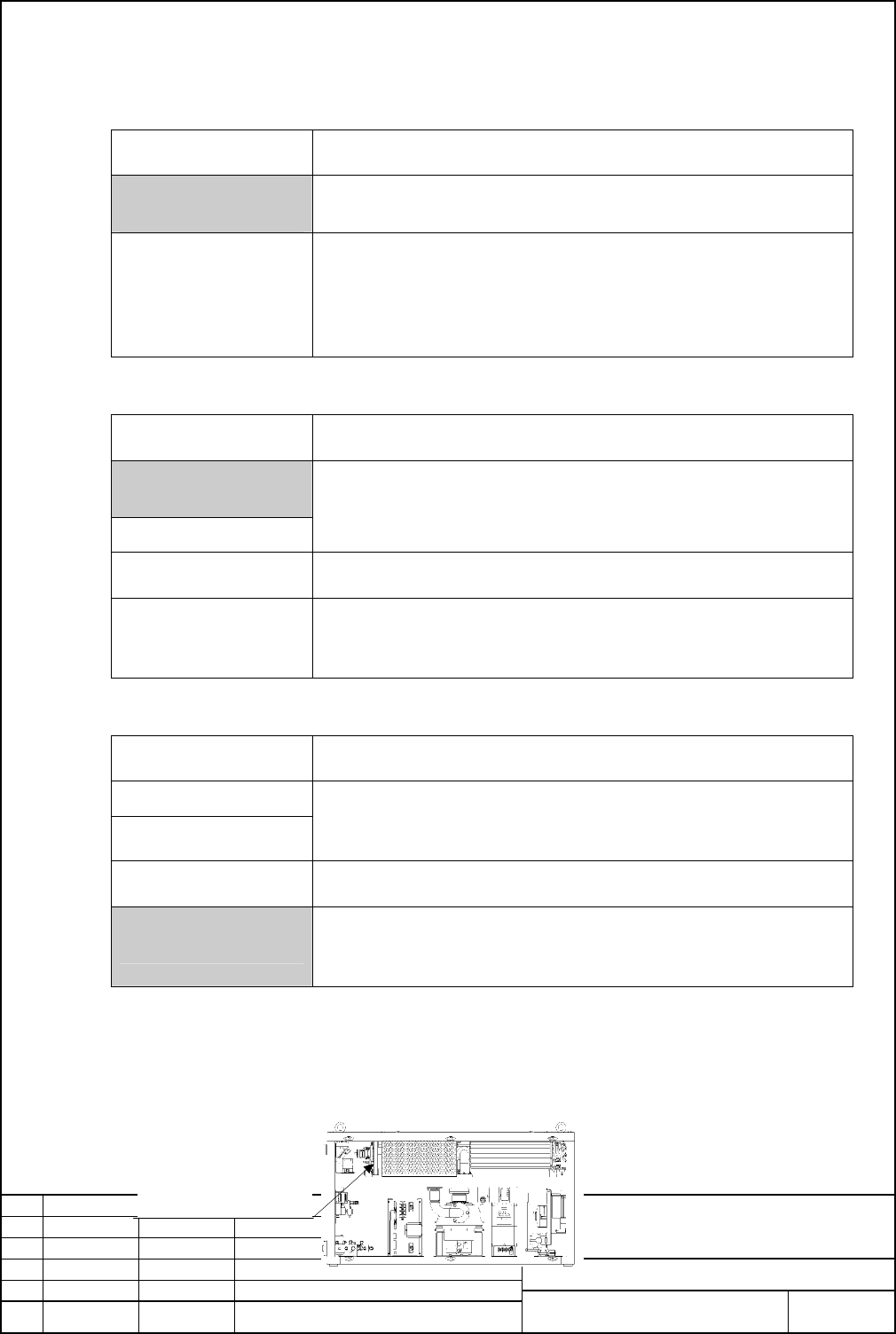

Addition of Warming-up Function in FANUC LASER C Series Additional Manual Page 3
Additional Manual
Addition of warming-up function in
FANUC LASER C series
3/4
FANUC LTD
A-81053E-074
Description Design Date Edit.
01 040610 T.WATANABE
Newly
Title
Sheet
Draw. No.
１）In case of using old software
1)It is irrelevant to the setting of parameter (TPS,OWU), and operation is the same
regardless of the setting.
Presence of the low
temperature sensor
Action of laser oscillator
Not equipped.
（Correct setting）
The cabinet temperature alarm is generated, when the
cabinet temperature rises.
Equipped.
The cabinet temperature alarm is generated when the laser
oscillator is less than 20℃ at the start-up, and the laser does
not start. Renew the software. When you cannot renew the
software, start the fan of the laser cabinet, make the cooling
water of the proper temperature circulate to warm the laser.
２）In case of no low temperature sensor with new software
Setting of parameter
(OTS,OWU)
Action of laser oscillator
（０，０）
Correct setting
（０，１）
As usual, the cabinet temperature alarm is generated when
the cabinet temperature rises.
（１，０）
The laser oscillator starts normally. However, the function
(cabinet temperature alarm, and warm up) becomes invalid.
（１，１） When the cabinet temperature rises (60℃ or more) , or the
cable or temperature sensor is damaged, the warm up
function malfunctions without alarm.
３）In case of installing the low temperature sensor with new software
Setting of parameter
(OTS,OWU)
Action of laser oscillator
（０，０）
（０，１）
The cabinet temperature alarm is generated when the
temperature of laser is less than 20℃ at the start-up, and the
laser does not start. Set the parameter to (1,1).
（１，０）
The laser oscillator starts normally. However, the function
(cabinet temperature alarm, and warm up) becomes invalid.
（１，１）
Correct setting
This setting makes the new function effective. The warm up
function is executed when the laser temperature is 20℃ or
less .
6.Installation position of low temperature sensor
The low temperature sensor is installed on the side of the resonator plate in all models.
・C1000-E
Low temperature sensor
installation position
