FANUC Series 16i/18i/21i Additional Manual Page 4

Additional Manual
Warning message
When Warning message is displayed, the message display is not done.
Sample
O0001 (#3018 OPERATOR MESSAGE) ;
:
#3018 = 1 (STEP-2) ; “STEP-2” is displayed.
:
#3018 = 0 ; “STEP-2” is cleared.
:
#3018 = 1 ; “STEP-2” is displayed again.
:
#3018 = 1 (STEP-3) ; “STEP-3” is displayed instead of “STEP-2”.
:
M30 ;
Message display

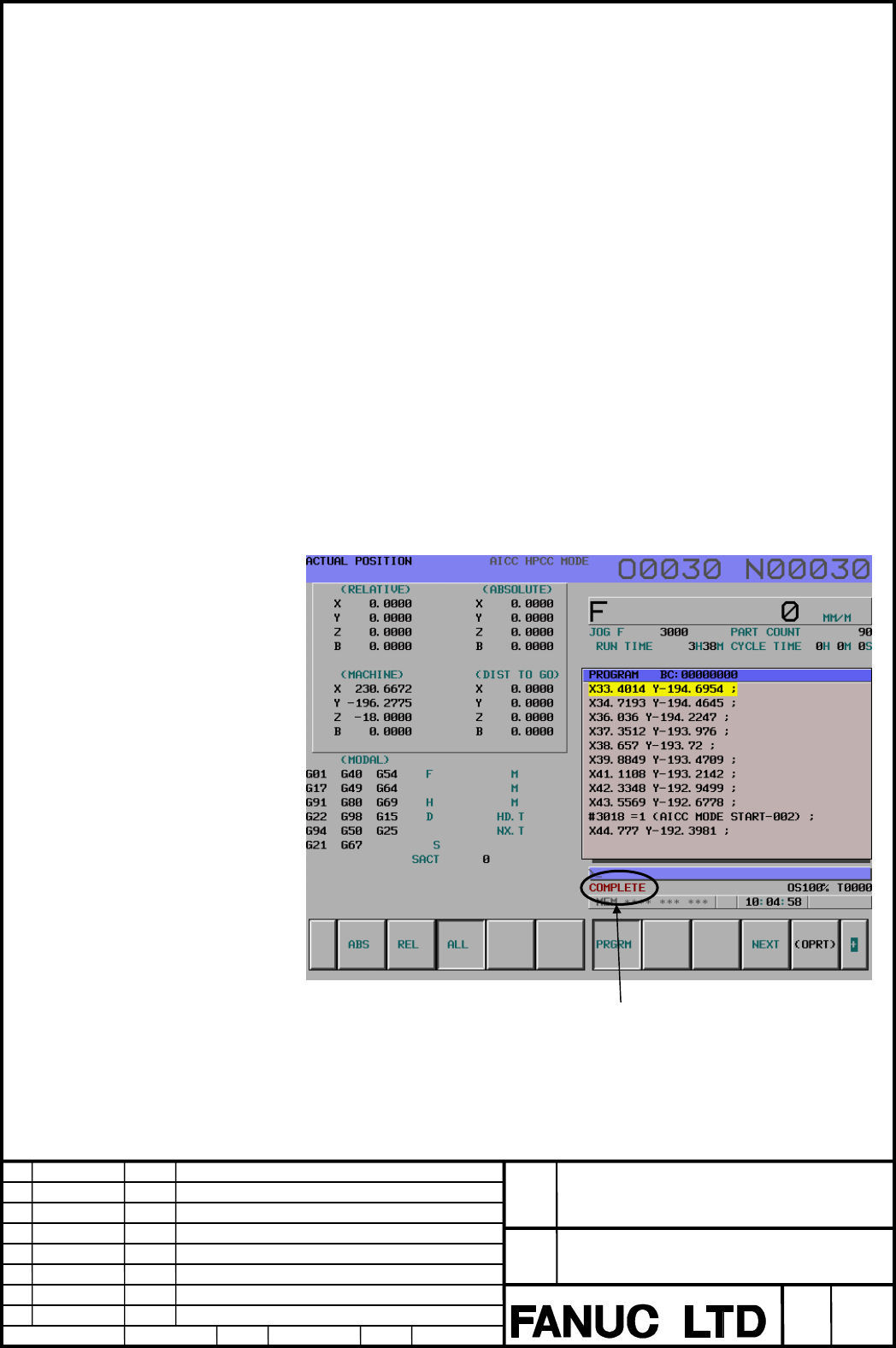

CNC display of 12 softkey type (“COMPLETE” is displayed.)
“COMPLETE” is displayed with red color.
A-90124E
Edit
Apprv.Desig.
Sheet
Title
Draw
No.
Date
Design
Descri
p
tion
Date
FANUC Series 16i/18i/21i –MB/TB, 18i –MB5
Operator message display by custom macro
Specifications
2005.11.11
4/8
