FANUC Series 16i/18i/21i Additional Manual Page 5

Additional Manual

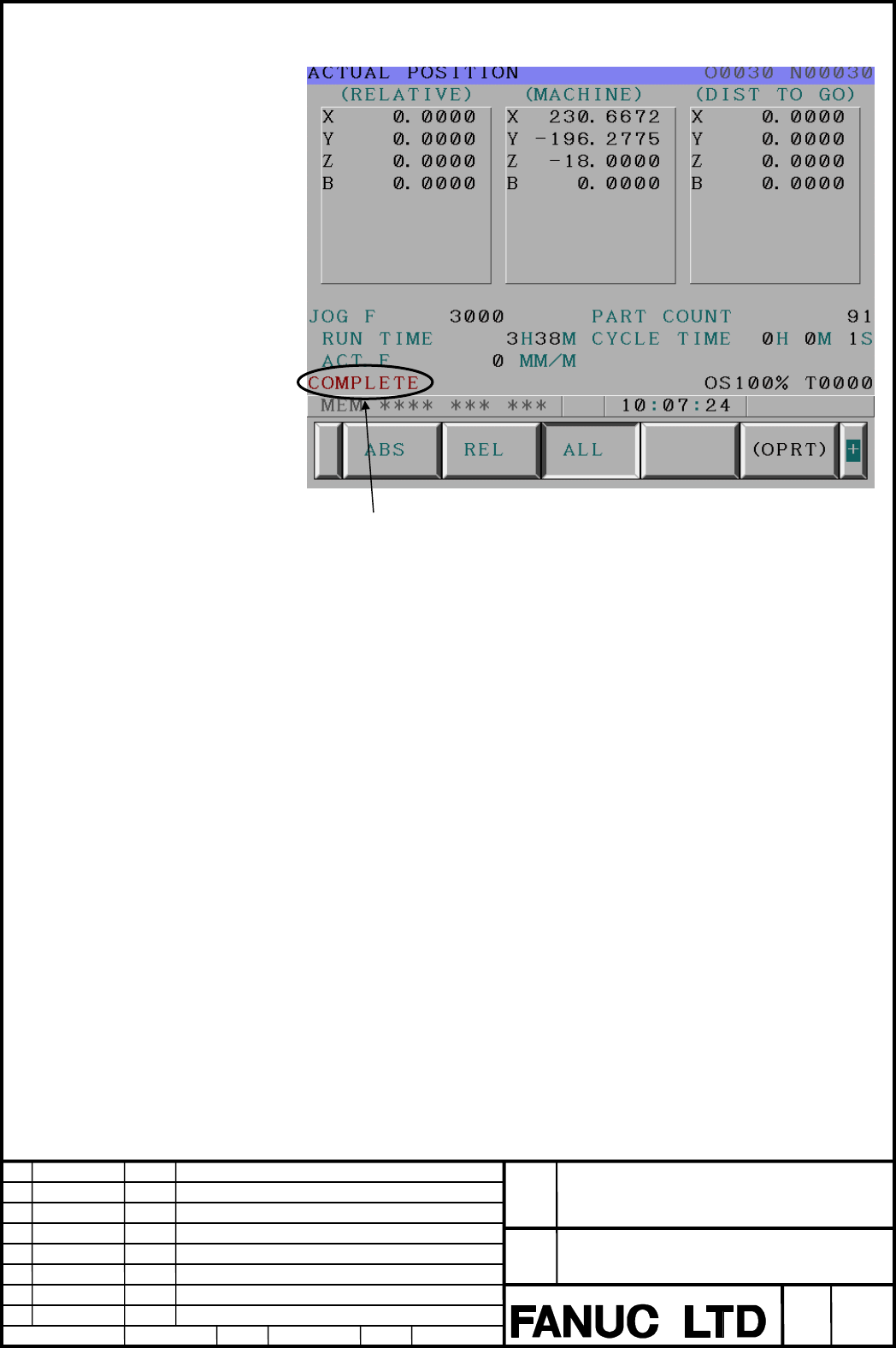

CNC display of 7 softkey type (“COMPLETE” is displayed.)
“COMPLETE” is displayed with red color.
Reading/Writing of #3018 from FOCAS1, Execution macro
When the system variable #3018 is read from FOCAS1 or execution macro, the reading value
is the same at reading from macro program.
i.e.
When the message is displayed : value “1” is read.
When the message is not displayed : value “0” is read.
When the system variable #3018 is written from FOCAS1 or execution macro, the behavior is
the same at writing from macro program.
i.e.
#3018 = 1 : message is displayed.
#3018 = 0 : message is cleared.
The message string can not be set from FOCAS1 or execution macro.
A-90124E
Edit
Apprv.Desig.
Sheet
Title
Draw
No.
Date
Design
Descri
p
tion
Date
FANUC Series 16i/18i/21i –MB/TB, 18i –MB5
Operator message display by custom macro
Specifications
2005.11.11
5/8
