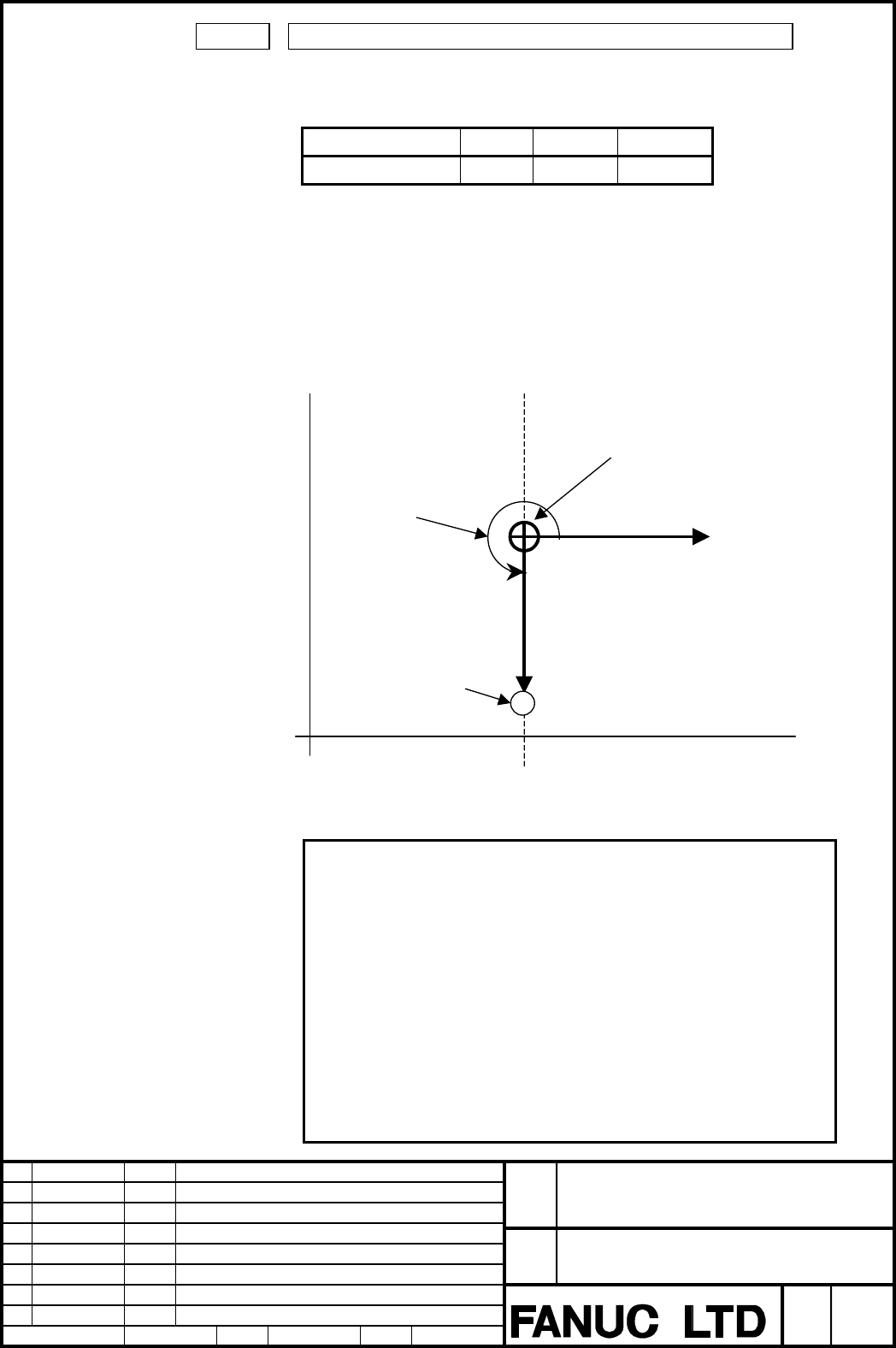

13284 Compensation angle for real rotary axis (C
0
)
[Data type] 2 word
[Unit of data]
increment system IS-B IS-C Unit
Rotary axis 0.001 0.0001 Degree
[Valid data range] 0 to 360.0degree
This parameter is set the angle between the vector of the plus direction of
hypothetical axis X and the vector connecting from the center of the real rotary axis
(C) to the tool when the machine coordinate value of the real rotary axis C is 0 degree
in CCW (Counter Clock Wise) direction.
C
0
in the following figure is set into this parameter.
Xc
X
Hypothetical machine coordinate of X
Hypothetical machine coordinate of Y/
Real axis machine coordinate V
Machine origin point
Compensation
angle C
0
Machine coordinate of C is 0 deg.
Rotary center of C axis
Tool
NOTE
If this parameter is changed in hypothetical mode, the compensation
pulses (the following C
COM
) by changing parameter are outputted at
once with motion command. Therefore, the compensation pulses by
changing parameter should be
“(the compensation pulses * 7500) < (the rapid traverse rate)”.
If the compensation pulses by changing parameter are big, the servo
alarm 415 (n-th AXIS MOTION OVER) may be generated.
C
COM
: Compensation pulses by changing parameter
C
0OLD
,C
0NEW
: Compensation angle for the real rotary axis C
(Parameter No.13284)
)(
00 OLDNEWCOM
CCC
−
−
=
3)
A-79306E
Edit
Apprv. Desig.
Sheet
Title
Draw
No.
Date
Design
Descri
p
tion
Date
FANUC Series 16i /18i –MB, 18i-MB5
Hypothetical linear axis control
Specifications
Dec.11.2003
T.Horie H.Kouzai
23
/25
02
Jan.30.2004
N.Aizawa
A
dd or Change at 2) part H.Kouzai
A
dd or Change at 3) part H.Kouzai
N.Aizawa
Dec.20.2004
03
