FANUC Series 16i/18i Additional Manual Page 5

Additional Manual

Page of 25

/ 25

Hypothetical machine coordinate, hypothetical work coordinate and real axis machine coordinate

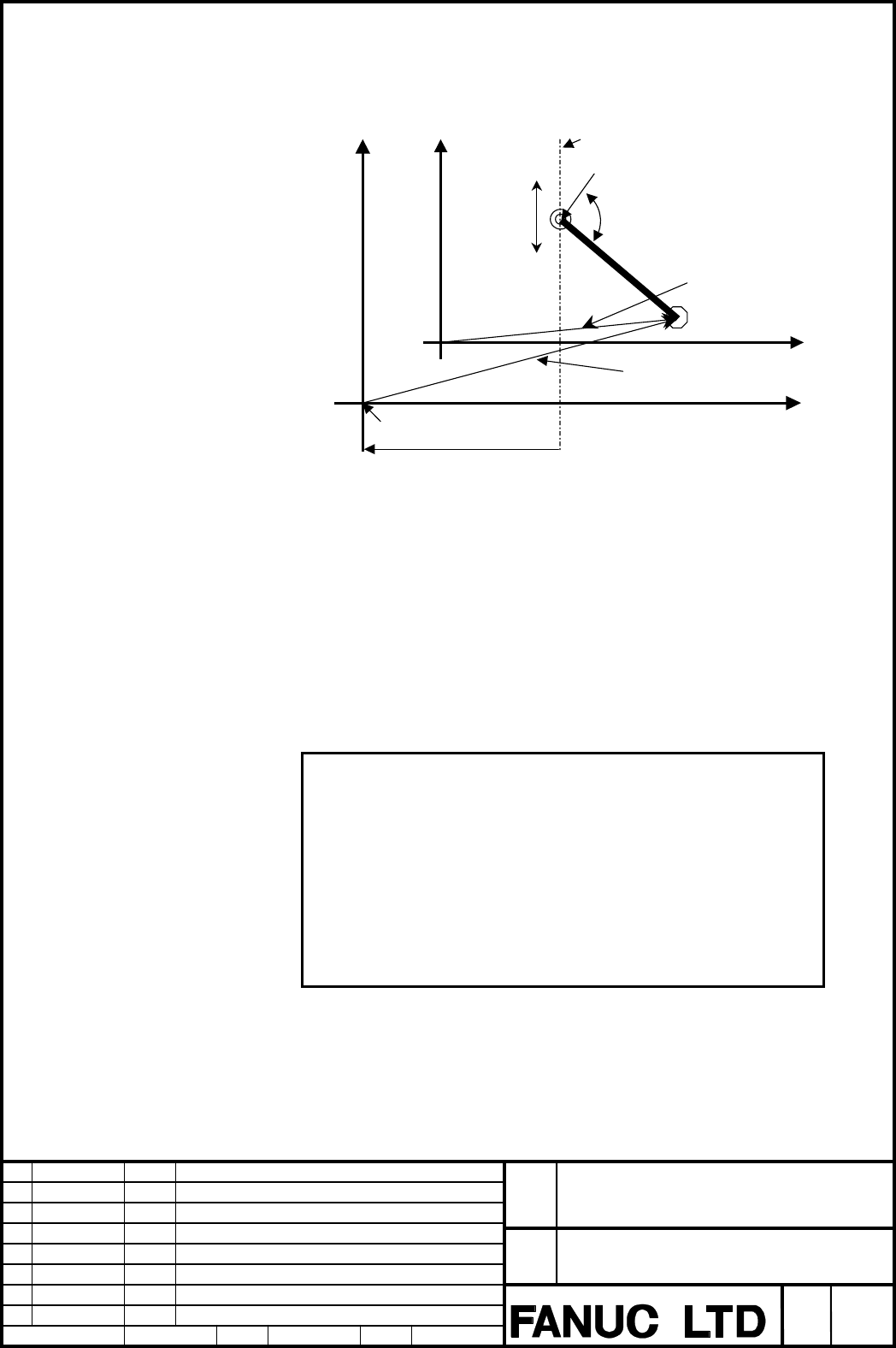

Fig.2 shows the relation between the coordinates which is using in this function.

Hypothetical machine coordinate of X

Hypothetical machine coordinate of

/Real axis machine coordinate of V

Machine origin point

Moving path of rotation center of C

Hypothetical machine coordinate value（X、Y）

Rotation center of C

Hypothetical work coordinate value(X’,Y’)

X’

Y’

Fig.2

1) X,Y axis are the hypothetical axis and they have machine coordinate value and it is

named the hypothetical machine coordinate.

2) The hypothetical work coordinate is established on the hypothetical machine

coordinate by G92 command, external work zero point offset, work zero point offset,

G52 command.

3) The real axis machine coordinate is the machine coordinate for V,C and Z axis.

NOTE

1) It is necessary that the machine origin point of hypothetical axis

Y is the same point as the machine origin point of real axis V.

2) Xc in Fig.2, which means the distance between rotation center of

real rotary axis C and the machine origin point of hypothetical

axis X and the direction from the rotation center of real rotary

axis C to the machine origin point of hypothetical axis X, is set

into parameter No.13283 for establishing the machine origin

point of hypothetical axis X.

A-79306E

Edit

Apprv. Desig.

Sheet

Title

Draw

No.

Date

Design

Descri

tion

Date

FANUC Series 16i /18i –MB, 18i-MB5

Hypothetical linear axis control

Specifications

Dec.11.2003

T.Horie H.Kouzai

/25

Jan.30.2004

N.Aizawa

dd or Change at 2) part H.Kouzai

dd or Change at 3) part H.Kouzai

N.Aizawa

Dec.20.2004
