  2. Dust collection unit for FANUC LASER C2000E, C4000E

Dust collection unit for FANUC LASER C2000E, C4000E Additional Manual Page 5

Additional Manual
03 20030222 OHTA Addition of C2000-E
02 20030204 OHTA Addition of “6.Order pasts”
Funakubo
01 20021009 OHTA 1st edition
Funakubo
DRAW. NO.
A-81053E-035
CUST.
EDIT DATE DESIG. DESCRIPTION APPRO.
FANUC LTD
SHEET
4/5
TITLE:
Dusut collection unit
for FANUC LASER C4000-MODEL E
and C2000-MODEL E

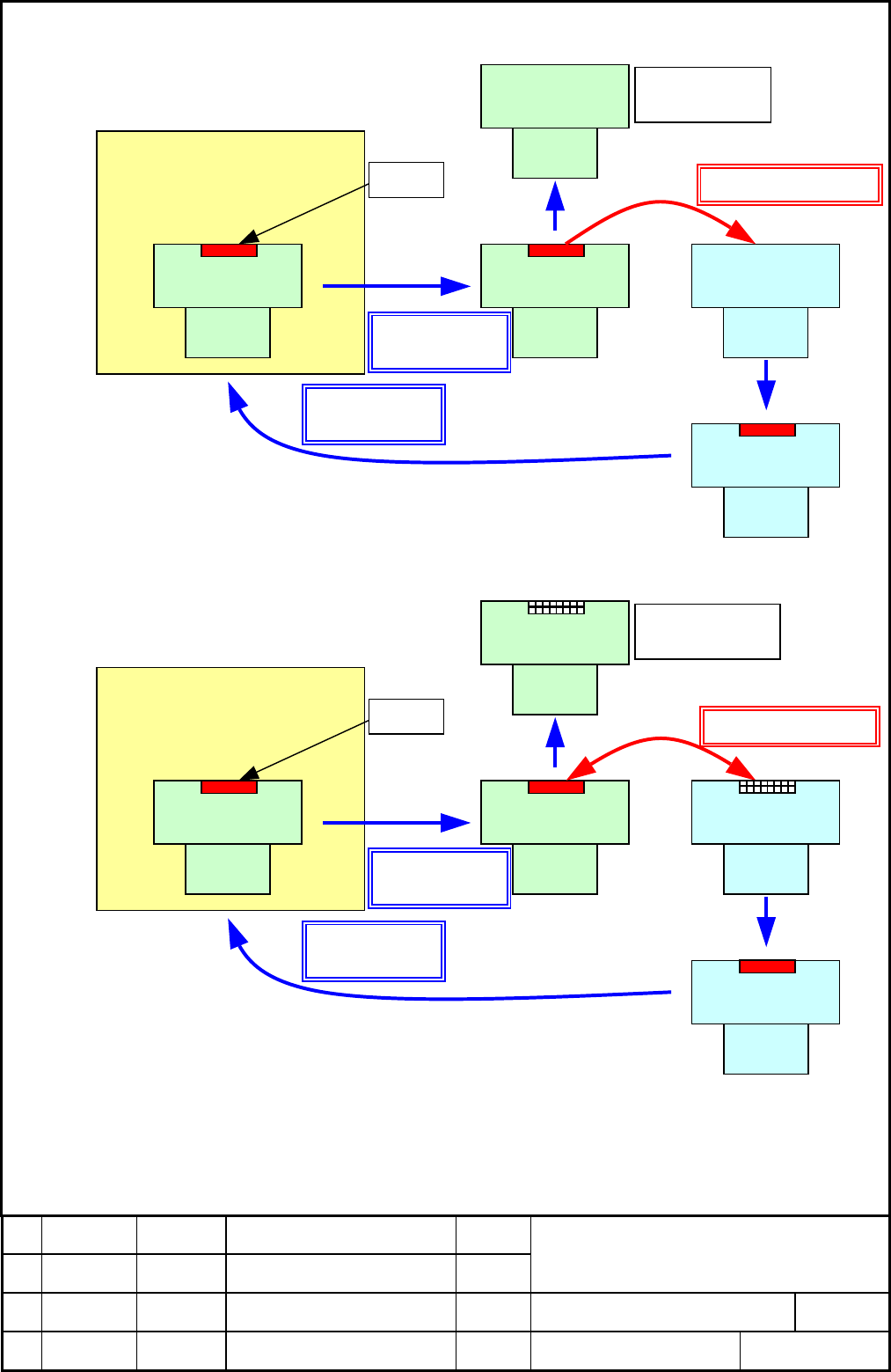

Note) When you exchange the turbo blower, please remove the filter form the turbo blower installed
the laser oscillator, and install this filter in the turbo blower for the exchange.
Note) In the case where the filter has placed to the turbo blower for the exchange, when the
specification of the filter is same, the filter need not be exchanged. However, please replace
the filter when the specification is different, and use the filter installed in the laser oscillator.
Returning
turbo blower
3) Installing
turbo blowe
r
Turbo blower
for exchange
Turbo blower
for exchange
Installed
turbo blower
Installed
turbo blower
Filter
1) Removing
turbo blowe
r
2) Installing filter
Installed
turbo blower
Laser oscillator
Turbo blower
for exchange
Installed
turbo blower
Returning
turbo blower
3) Installing
turbo blowe
r
Turbo blower
for exchange
Installed
turbo blower
Filter
1) Removing
turbo blowe
r
2) Replacing filter
Installed
turbo blower
Laser oscillator
Note) Please use the filter(A290-4500-V031) with a large mesh for the laser oscillator with the dust
collection unit. When the filter(A290-4500-V019) with a small mesh is used for this oscillator,
laser power will decrease.
