Additional Manual
Change the structure of the safety cover
of LASER C series for CE Marking
2/4
FANUC LTD
A-81053E-078
Description Design Date Edit.
01 041005 MURAKAMI
Title
Sheet
Draw. No.

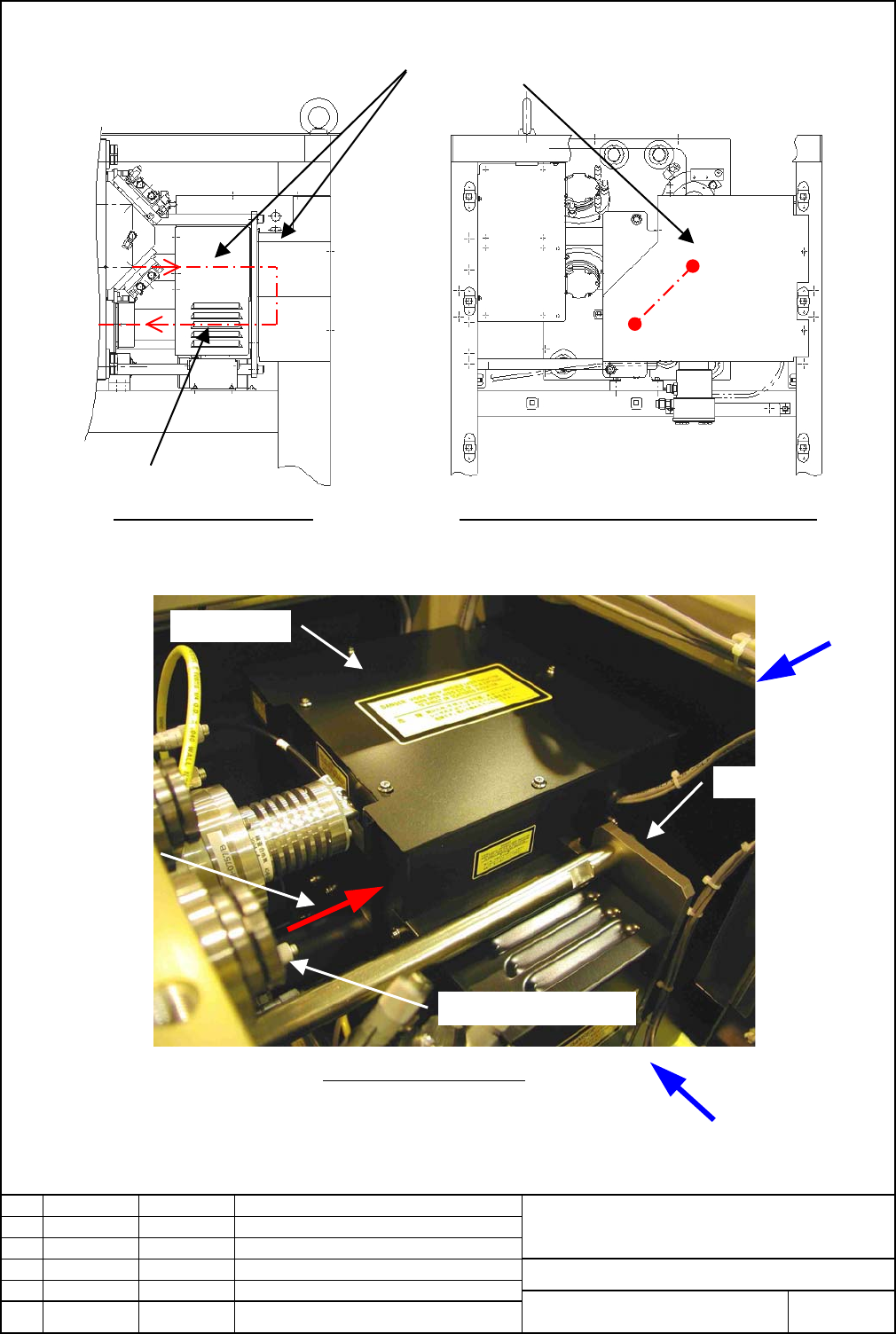

The present safety cover (Before changing)
Front view of C4000-E
Beam folding unit’s front view of C4000-E
(View A) (View B)
Upper view of C4000-E
Safety cover
Laser beam
Laser beam
Output mirror holder
Safety cover
Beam folding unit
Ａ
Ｂ
