Change the Structure of the Safety Cover of LASER C Series for CE Marking Additional Manual Page 4

Additional Manual
Change the structure of the safety cover
of LASER C series for CE Marking
4/4
FANUC LTD
A-81053E-078
Description Design Date Edit.
01 041005 MURAKAMI
Title
Sheet
Draw. No.

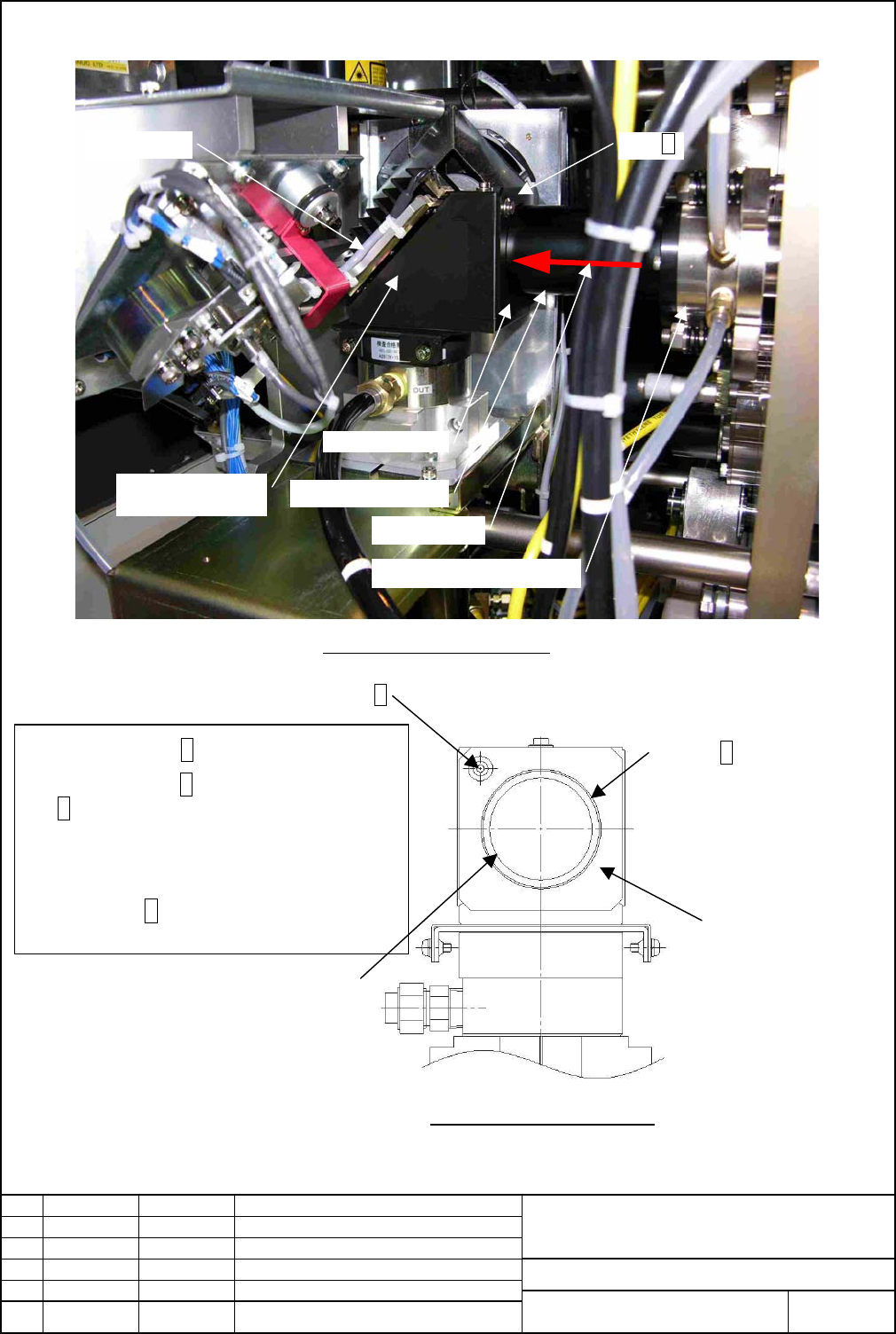

Attention in maintenance (At the alignment)
Backside view of C4000-E
Front view of beam flange
Beam cover pipe
Beam flan
g
e
Bolt 1
Beam flange
Bolt 1
Space 2 between beam
flange and beam cove
r
pipe
● Please loosen 1 at the alignment.
● Please tighten 1 again so that the space
(2) become even after completing the
alignment.
Attention.
In case of the alignment without
loosening 1, the mode cannot be
adjusted correctly.
Beam cover pipe
Sutter unit
Laser beam
Output mirror holder
Simple safety
cove
r
