Periodic Maintenance of Battery for the Absolute Pulsecoder Supplement to Manual Page 5

Supplement to Manual
DRAW.
No.
TITLE
Pa
g
e
005
/
8
DESCRIPTIONDESIGNDATE EDIT
PERIODIC MAINTENANCE OF
BATTERY FOR THE ABSOLUTE
PULSECODER
B-65285E/03-01
FANUC LTD

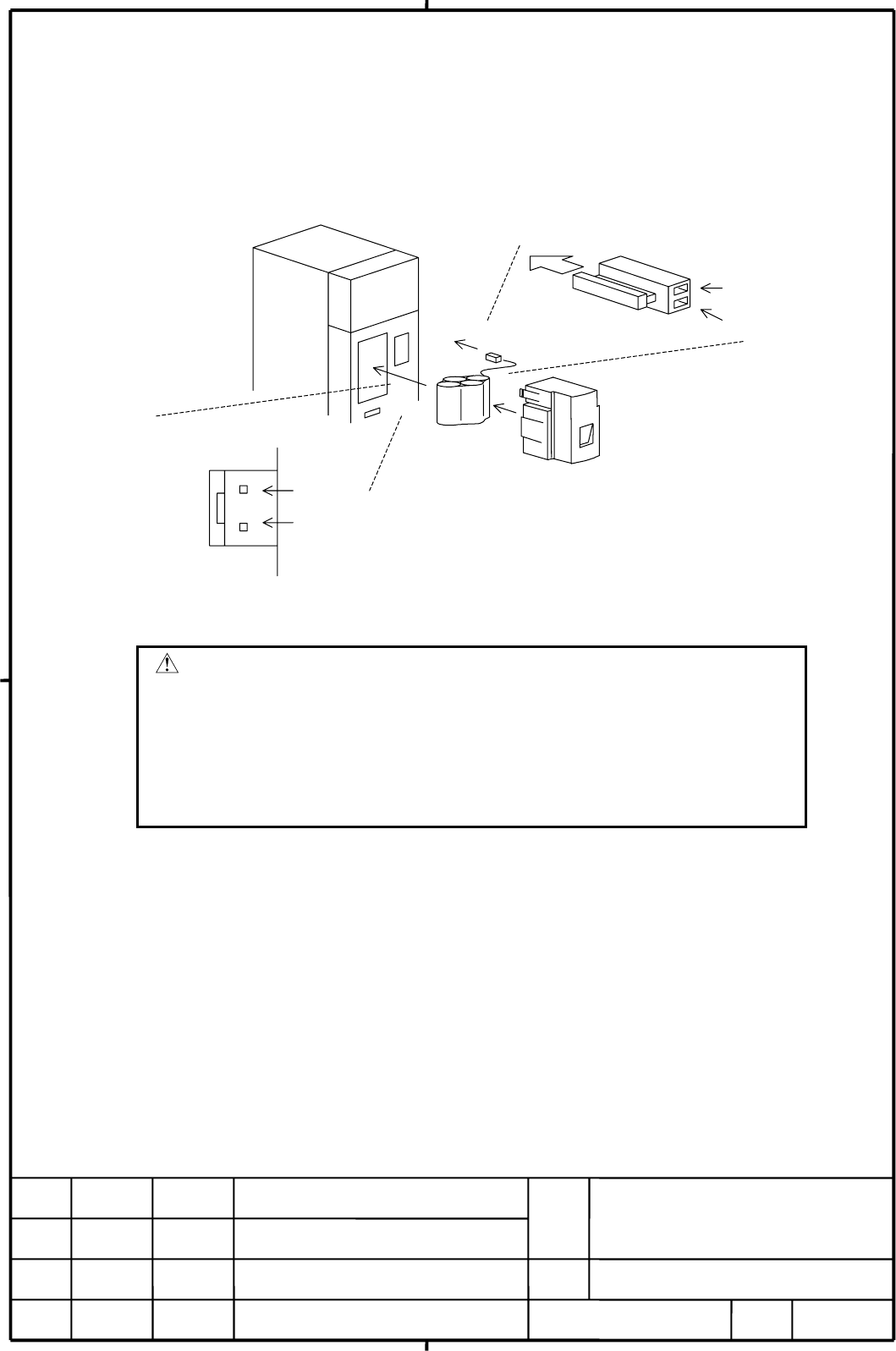

[Installation procedure for the battery]
(1) Remove the battery cover from the SVM.
(2) Install the battery in the SVM as shown in the figure below.
(3) Install the battery case.
(4) Attach the battery connector to CX5X of the SVM.
Battery
SVM
Battery case
Inserting direction
Red: +6 V
Black: 0 V
CX5X
+6V
0V
Connector
Cable side
CAUTION
1 When the battery is installed in the SVM from the side from which the
cable is drawn, the cable may be stretched tight, which can lead to a poor
contact condition. Therefore, install the battery so that the cable is not
extended tightly.
2 Be careful when handling the connector. See [Caution No. 2 for battery
replacement] at the end of this section for details.
