Periodic Maintenance of Battery for the Absolute Pulsecoder Supplement to Manual Page 7

Supplement to Manual
DRAW.
No.
TITLE
Pa
g
e
007
/
8
DESCRIPTIONDESIGNDATE EDIT
PERIODIC MAINTENANCE OF
BATTERY FOR THE ABSOLUTE
PULSECODER
B-65285E/03-01
FANUC LTD
[Caution No. 2 for battery replacement]
If an excessive strain is applied to a connector when it is inserted or removed, a poor contact may
result. When inserting and removing the battery connector, therefore, be careful not to apply an
excessive wrenching force to it; just follow the instructions given in the following table.

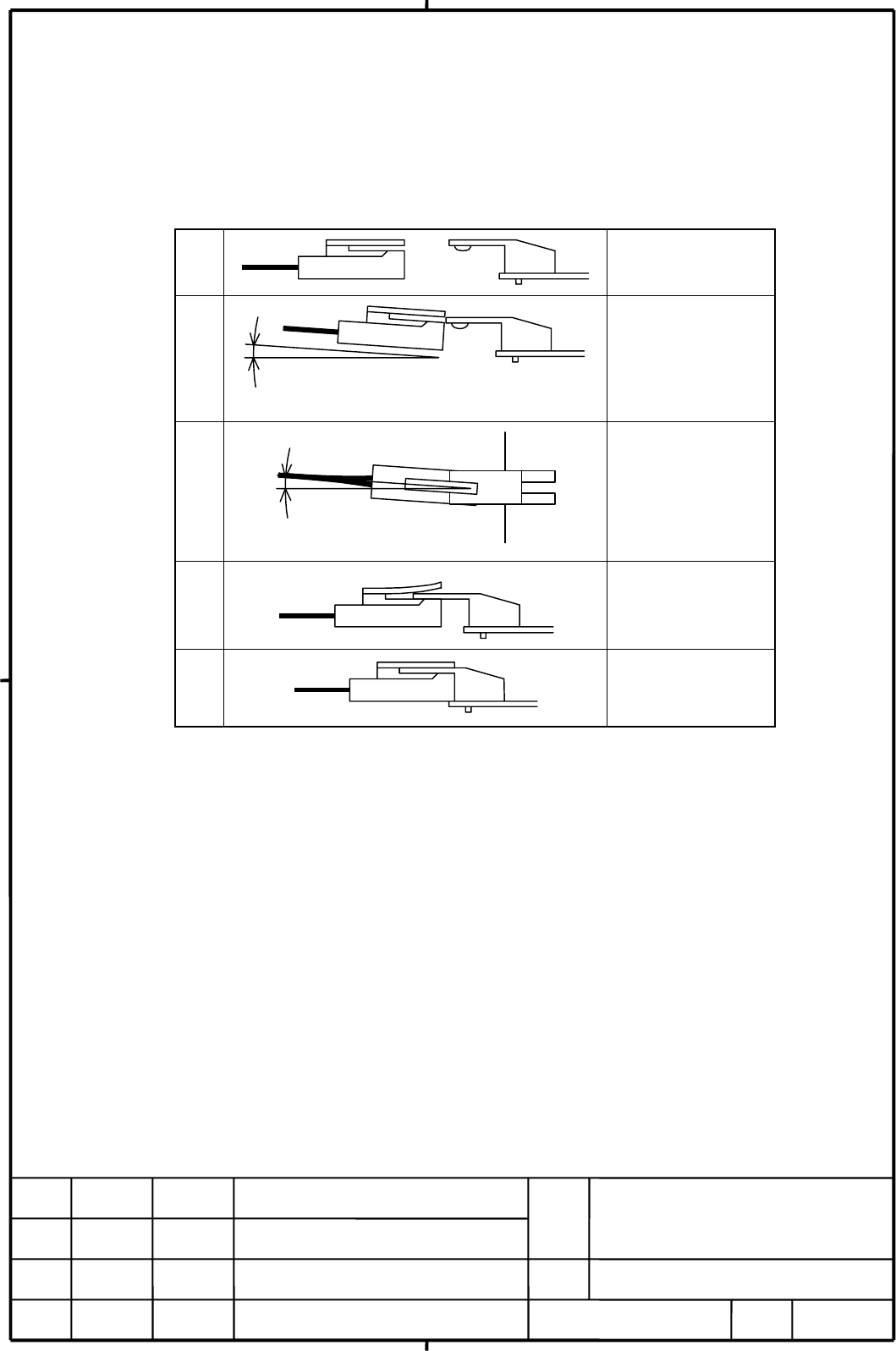

(1) Attaching connectors
<1>
Check the attachment
position.
<2>
10 degrees or less
Plug the cable
connector while
raising it slightly.
<5>
5 degrees or less
Here, the angle of the
cable connector to the
horizontal must be 5
degrees or less.
<3>
After passing the lock
pin, insert the
connector straight.
<4>
The attachment of the
connector is
completed.
