Series 30i-MODEL A, Input of tool offset value measured B Additional Manual Page 22

Additional Manual
A-79344E
Title
Draw
No.
Ed. Date Design Description
Date
Jan.06.’04 Design. Apprv.
20/24
page
FANUC Series 30i-MODEL A
Input of tool offset value measured B
5059
Distance (Z2M) between reference position and Z axis –
contact surface (touch
sensor 2 side)
[Input type] Parameter input
[Data type] Real path
[Unit of data] mm, inch
（
input unit
）
[Minimum unit of data] Depend on the increment system of the applied axis
[Valid data range] 0 or positive 9 digit of minimum unit of data (refer to the standard
parameter setting table (B) )
These parameters are related to the function to input tool offset value measured B.
They set the distance (with sign) between the measurement reference position and
sensor contact surface. For an axis under diameter programming, set it using a
diameter value.
Note
Parameter Nos. 5056 to 5069 are valid if the 2NR
parameter (bit 0 of parameter No. 5051) is 1.

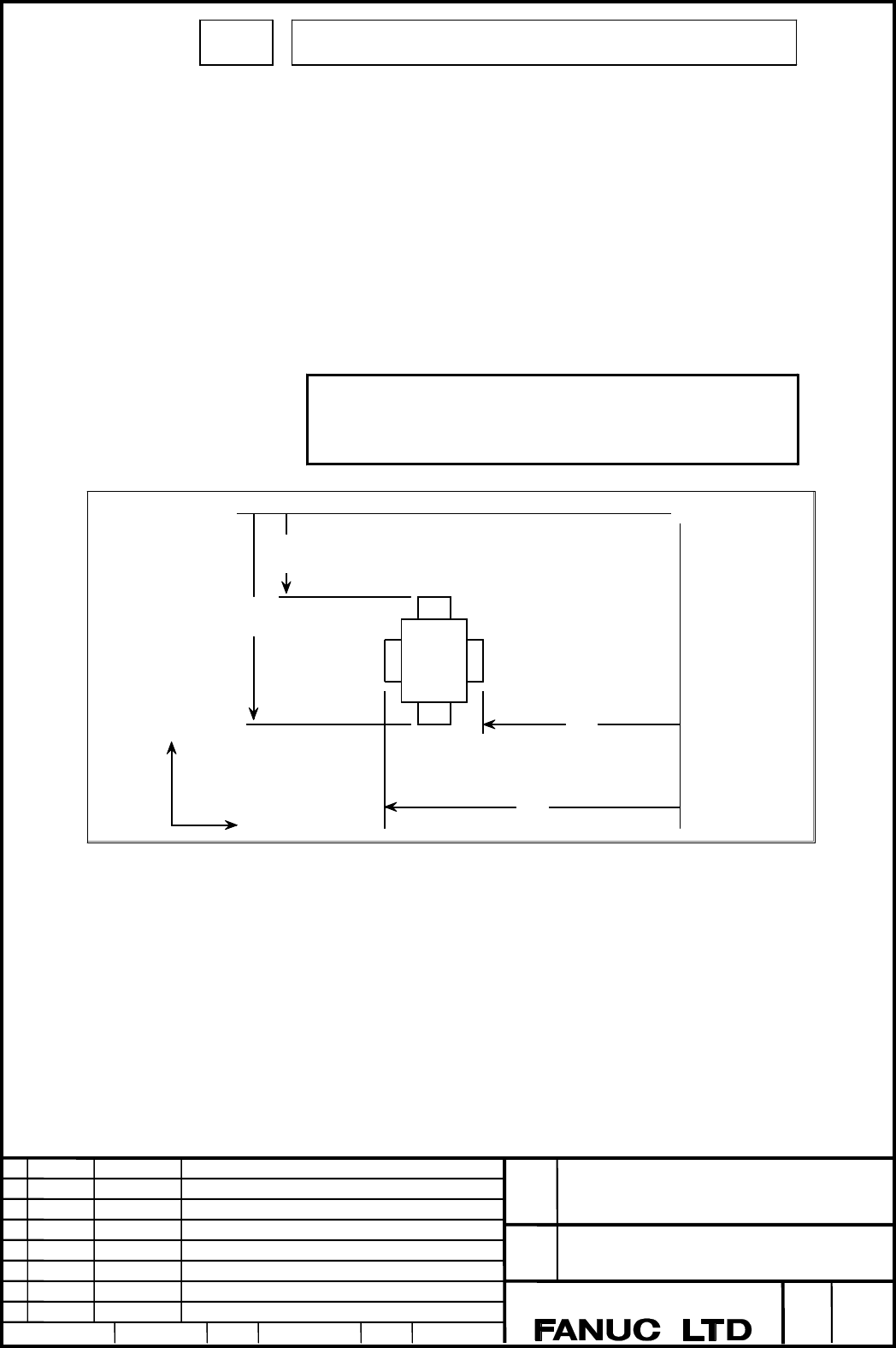

Z axis
－
contact face
→
←
Z axis
＋
contact face
↑
X axis
＋
contact face
X1m
X axis
－
contact face
↓
○
Measuring
reference
position
X1p
+X
Z1m
Z1p
+Z
+
