Alpha Spindle Amplifier Motor Overheat Detection Adapter for Alpha i Spindle Motor Additional Manual Page 4
Additional Manual
TITLE
DRAW
.
No.
4 / 5
Page
FANUC LTD
DESCRIPTIONDESIGNDATE
EDIT
SPINDLE AMPLIFIER
α
series
Motor over-heat detection adapter
for SPINDLE MOTOR αi series
A
-53866E-0388
4. Specific setting for motor
Install setting pin TM1, TM2, TM3 for model of motor.
(Only one pin is attached)
Model of motor TM1 TM2 TM3 Notes
α0.5i to α3i
B none none initial setting
α6i to α40i
none B none
none none B
none none A
Caution: Spindle motor may not be protected if this pin is not set correctly.
TM1
TM2
TM3
B A

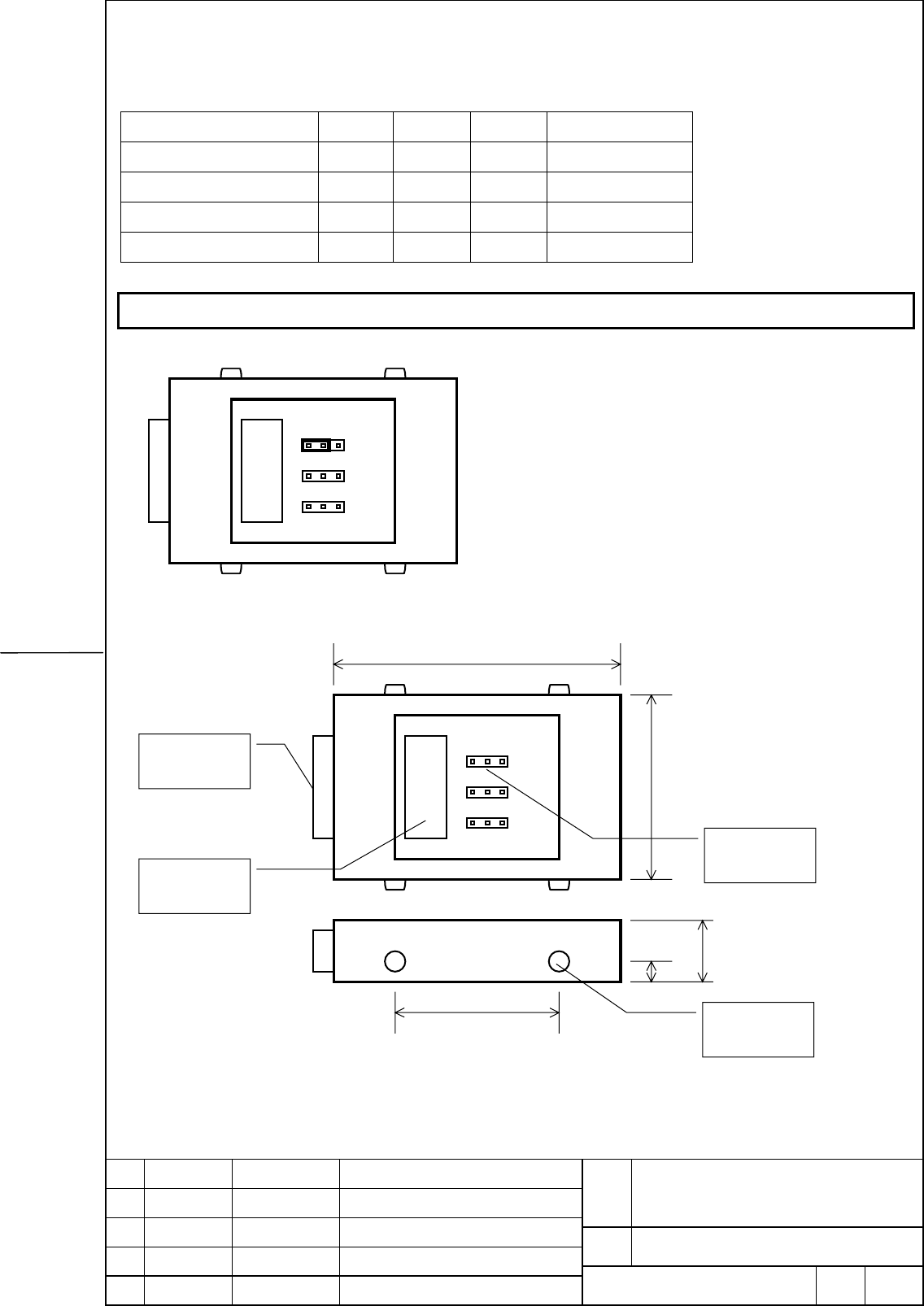

5. Outer dimension
66
45
7
40
18
To M o to r
Connector: JY2A
to SPM
Connector : JY2B
Setting for
Model of motor
Mount screw
M3
Install this adapter using M3 screw of the side and L angle support.
