Connector support Additional Manual Page 3

Additional Manual
Draw.
Title
Aochi
01.11.21
01
PAGE
Connector Support
2/3
FANUC LTD.
A-56731E-0085/02
Description
Design
Date
Edit
Add bolts (M4X50)
Aochi
01.12.20
02
Taniguchi
3. Specification
A06B-6114-K202#S
4. Applicable connector plug
FANUC SPECIFICATION
A06B-6114-K200#S
JAPAN AVIATION ELECTRONICS SPECIFICATION
JN1DS10SL1, JN1DS10SL2
5. Note
Don’t disconnect feedback connector. It is possible to mount this connector support
without disconnecting feedback connector.

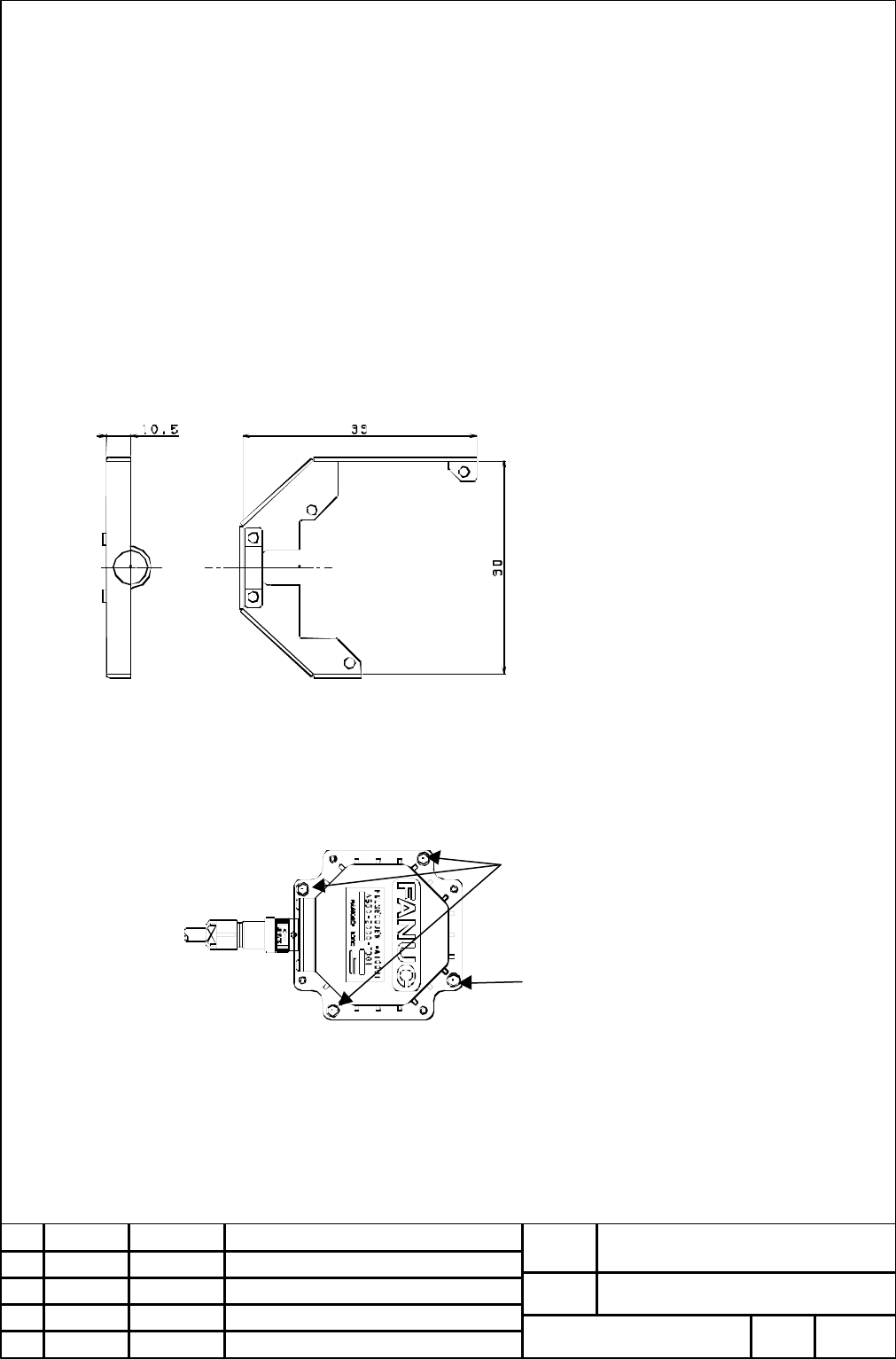

6. Outer dimension
7. Mounting method
(1) Remove three hexagonal socket head bolts (M4) that fix the Pulsecoder on the motor as
follows.
Bolts
Note) Don’t reuse these bolts.
Attached parts
Hexagonal socket head bolts
M4X18 : 3
M4X6 : 2
M4X50 : 3
Don’t loosen this bolt.
