Connector support Additional Manual Page 4
Additional Manual
Draw.
Title
Aochi
01.11.21
01
PAGE
Connector Support
3/3
FANUC LTD.
A-56731E-0085/02
Description
Design
Date
Edit
Add bolts (M4X50)
Aochi
01.12.20
02
Taniguchi

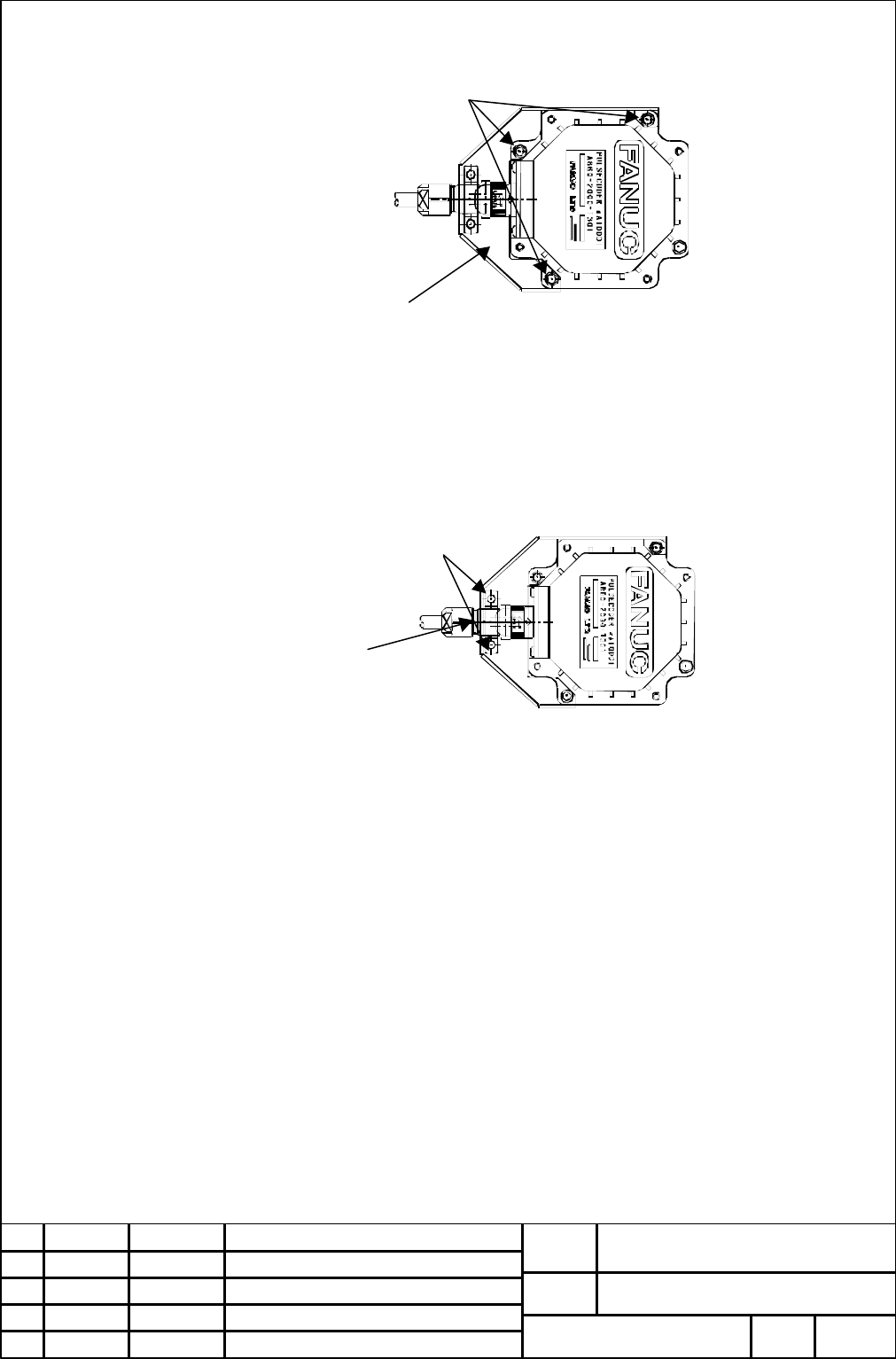

(2) Mount the reinforcing plate on the cover as follows, and tighten the attached bolts
(M4X18) with torque from 2.0Nm to 2.5Nm.
Motor specification for attached bolts is as follows.
M4X50 : α1i and α2i servo motor with brake
M4X18 : Other motors
(3) Attach the holding plate as follows, and tighten the attached bolts (M4X6) with torque
from 0.4Nm to 0.6Nm.
Attached bolts
Holding plate
Reinforcing plate
Attached bolts M4X6
