FS18i-TB Additional Manual Page 3

Additional Manual
2
1. Outline
Analog voltage can be controlled by PMC signals.
The PMC signals are spindle control signals for the fourth spindle.
Analog voltage is output from connector of JA40.
To use this function, S analog output function is necessary, but analog spindle can not be controlled.
2. Analog voltage output
When parameter SANVL(No.3710#5) is set to "1", analog voltage can be controlled by PMC signals.
The PMC signals are spindle control signals for the fourth spindle (G272,G273).

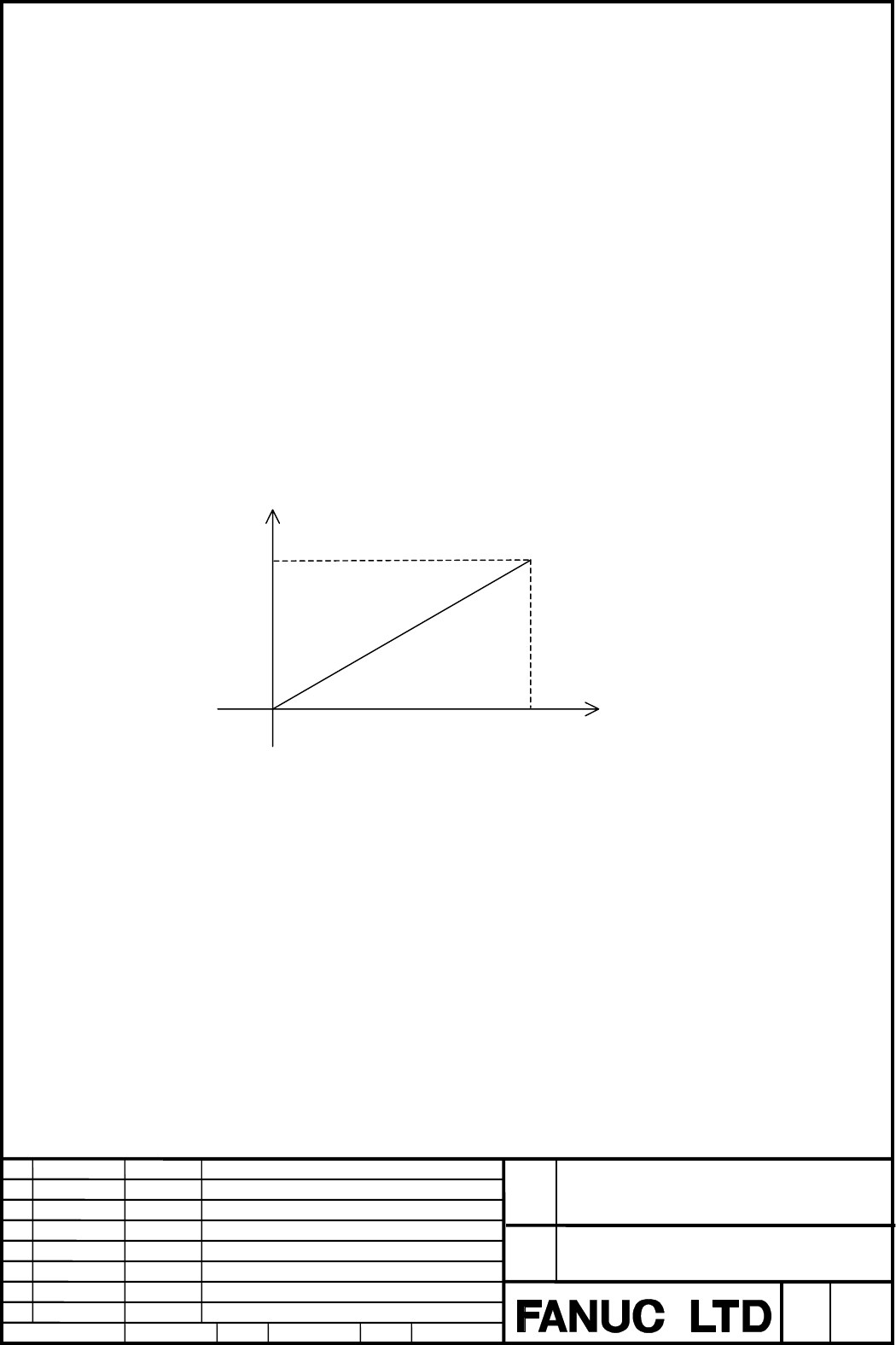

When binary code signals, from 0 to 4095, are input, analog voltage can be controlled from 0[V] to
+12.5[V]. The analog voltage is output from connector of JA40.
When analog voltage is controlled, S analog output function is necessary.
Voltage
0[V]
0
4095
+12.5[V]
Code
Edit
Apprv.
Desig.
Sheet
Title
Draw
No.
/ 3
Date
Design
Description
Date
FANUC Series18i-TB
Analog voltage output
A-76264EN
1999.01.25
Kageyama
2
2003.11.13
Kageyama
All modified
