4. DESCRIPTION OF PARAMETERS
129
5114
Return value of high–speed peck drilling cycle G73
[Data type] Word
[Unit of data]
Increment system IS-A IS-B IS-C Unit
Millimeter input 0.01 0.001 0.001 mm
Inch input 0.001 0.0001 0.0001 inch
[Valid data range] 0 to 32767
This parameter sets the return value in high–speed peck drilling cycle
G73.
q : Depth of cut
d : Return value
R point
Z point
q
q
q
d
d
G73 for M series

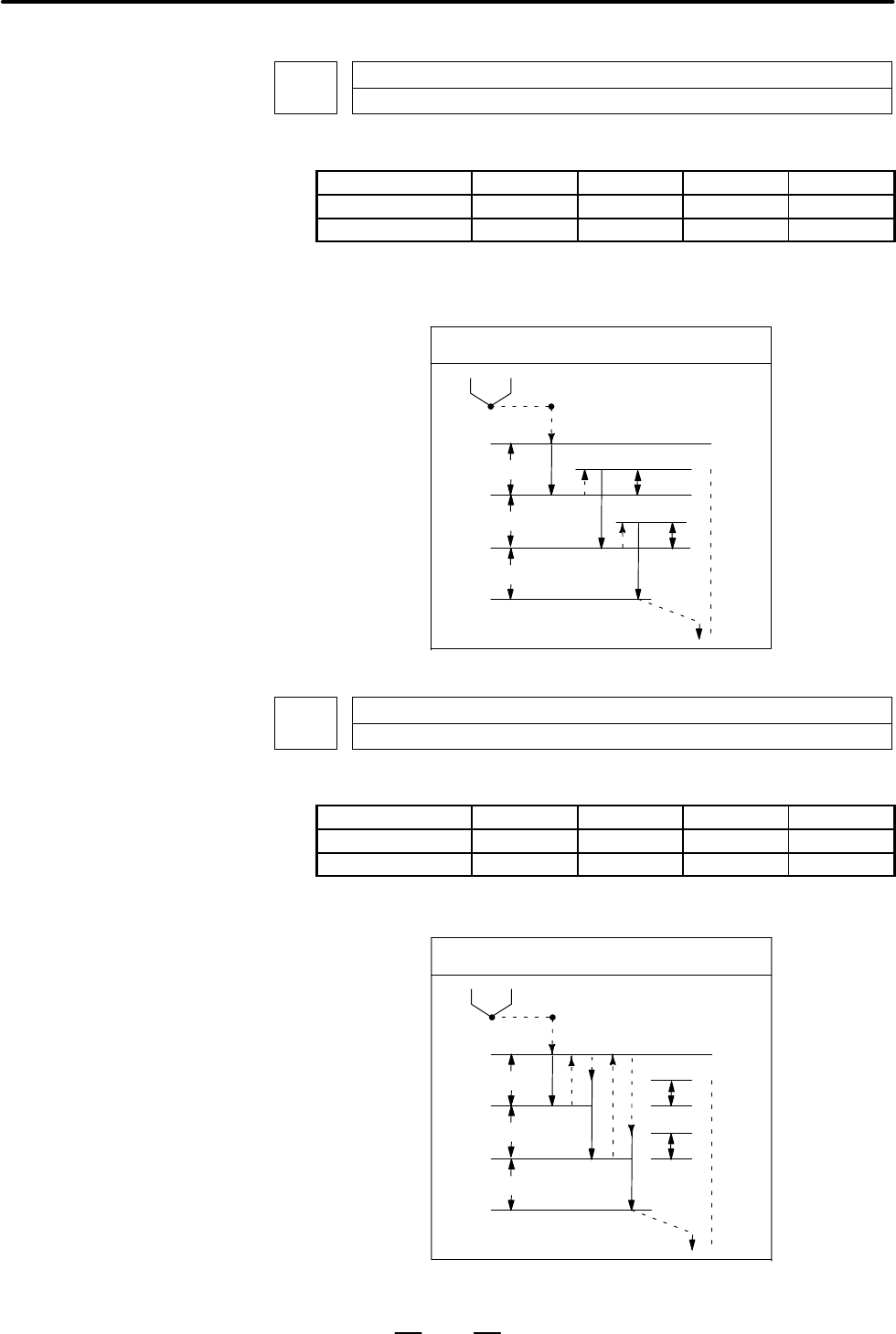

Fig.4.19.1 (a) High–speed Peck Drilling Cycle G73
5115
Clearance of canned cycle G83
[Data type] Word
[Unit of data]
Increment system IS-A IS-B IS-C Unit
Millimeter input 0.01 0.001 0.001 mm
Inch input 0.001 0.0001 0.0001 inch
[Valid data range] 0 to 32767
This parameter sets the clearance of peck drilling cycle G83.
G83
q : Depth of cut
d : Clearance value
R point
Z point
q
q
q
d
d
Fig.4.19.1 (b) Peck drilling cycle G83
