Power Mate i - Model D/H Parameter manual Page 137

Parameter manual
B–63180EN/02
4. DESCRIPTION OF PARAMETERS
131
5210
Rigid tapping mode specification M code
[Data type] Byte
[Valid data range] 0 to 255
This parameter sets an M code that specifies the rigid tapping mode.
To set an M code larger than 255, set it to parameter No.5212.
NOTE
1 The M code is judged to be 29 (M29) when “0” is set.
2 To use an M code whose number is greater than 255, Specify
the code number with parameter No.5212.
5211
Override value during rigid tapping extraction
[Data type] Byte
[Unit of data] 1 % or 10 %
[Valid data range] 0 to 200
The parameter sets the override value during rigid tapping extraction.
NOTE
The override value is valid when DOV in parameter No.5200
#4 is “1”.
When OVU (bit 3 of parameter No.5201) is 1, the unit of set data
is 10%. An override of up to 200% can be applied to extraction.
5213
Return or clearance in peck tapping cycle
[Data type] Word
[Unit of data]
Increment system IS–A IS–B IS–C Unit
Millimeter input 0.01 0.001 0.0001 mm
Input in incluse 0.001 0.0001 0.00001 inch
[Valid data range] 0 to 32767
This parameter sets the return or clearance in the peck tapping cycle.
Parameter No.5200 PCP=1
(Peck drilling cycle)
Parameter No.5200 PCP=0
(High–speed peck drilling cycle)
q : Depth of cut
d : Return value
R point
Z point
q
q
q
d
d
q : Depth of cut
d : Clearance value
R point
Z point
q
q
q
d
d

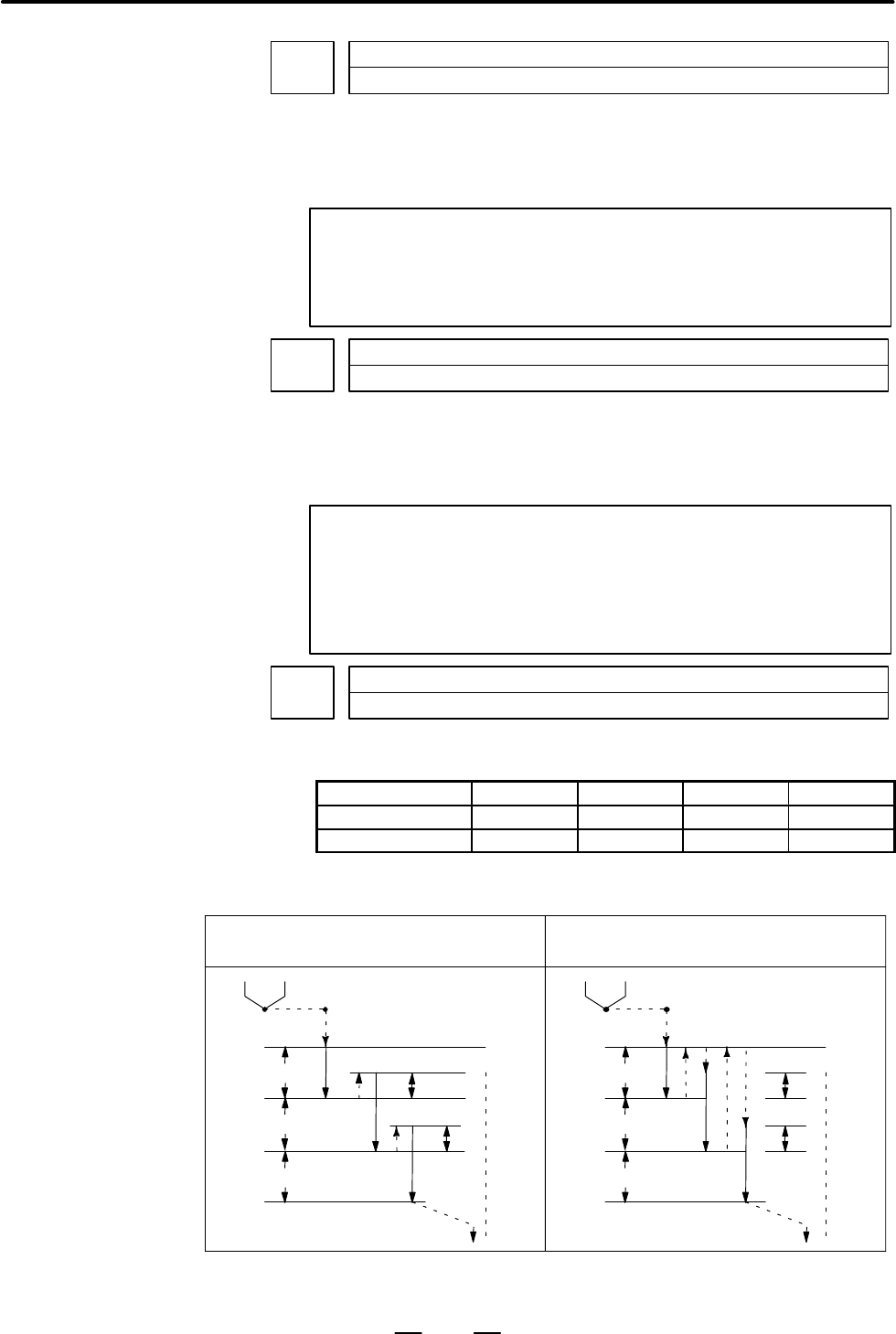

Fig.4.20 (a) High–speed Peck Drilling and Peck Drilling Cycles
