4.8 Connection of manual pulse generator

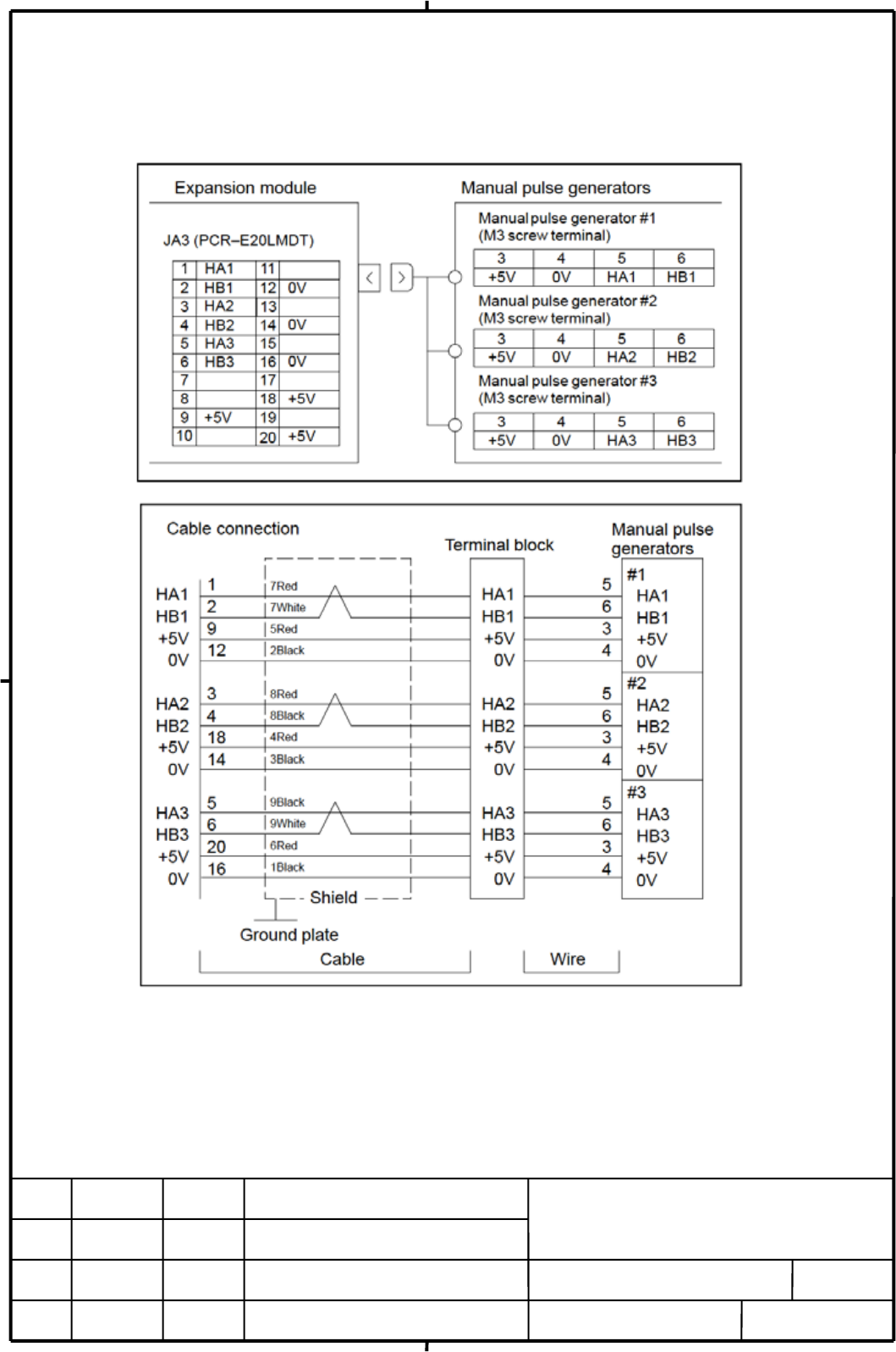

An example in which three manual pulse generators are connected to expansion
module A is shown below. The manual pulse generator can be connected only for
the i series CNC.
Recommended wire material:A66L–0001–0286 (#20 AWG × 6 + #24 AWG × 3 pairs)
Recommended connector:A02B–0120–K303 (including the following connector and case)
(Connector: FI40–2015S (Hirose Electric Co., Ltd.))
(Case: FI40–20–CV5 (Hirose Electric Co., Ltd.))
Recommended cables:A02B–0120–K841 (7 m) (for connecting three manual pulse generators)
A02B–0120–K848 (7 m) (for connecting two manual pulse generators)
A02B–0120–K847 (7 m) (for connecting one manual pulse generator)
(These cables do not include the wire shown in the above figure.)
EDIT
FANUC
SHEET
DRAW. NO.
CUST
TITLE
18/
DESCRIPTION DESIG. DATE
TERMINAL TYPE I/O MODULE
CONNECTING MANUAL
A
-86491E
