1. Outline
Specification of terminal type I/O module is based on connector panel I/O module.
The strong points of terminal type I/O module are below.
- Using ferrule terminal for connect
input/output signal.
- LED which indicates On/Off state every input/output signal.
- 16 points of digital output and 24 points of digital input for one module.
- Photo coupler insulation is adopted for output circuit.
- It is possible to install in the DIN rail.
- Using extension modules, the maximum point input: 96 points and
outputs: 64 points.
- The terminal block can be detached from module.
- There is expansion module with MPG (The manual pulse generator) interface.
2
/
16
TERMINAL TYPE I/O MODULE
CONNECTING MANUAL
EDIT
FANUC
SHEET
DRAW. NO.
CUST
TITLE
DESCRIPTION DESIG. DATE

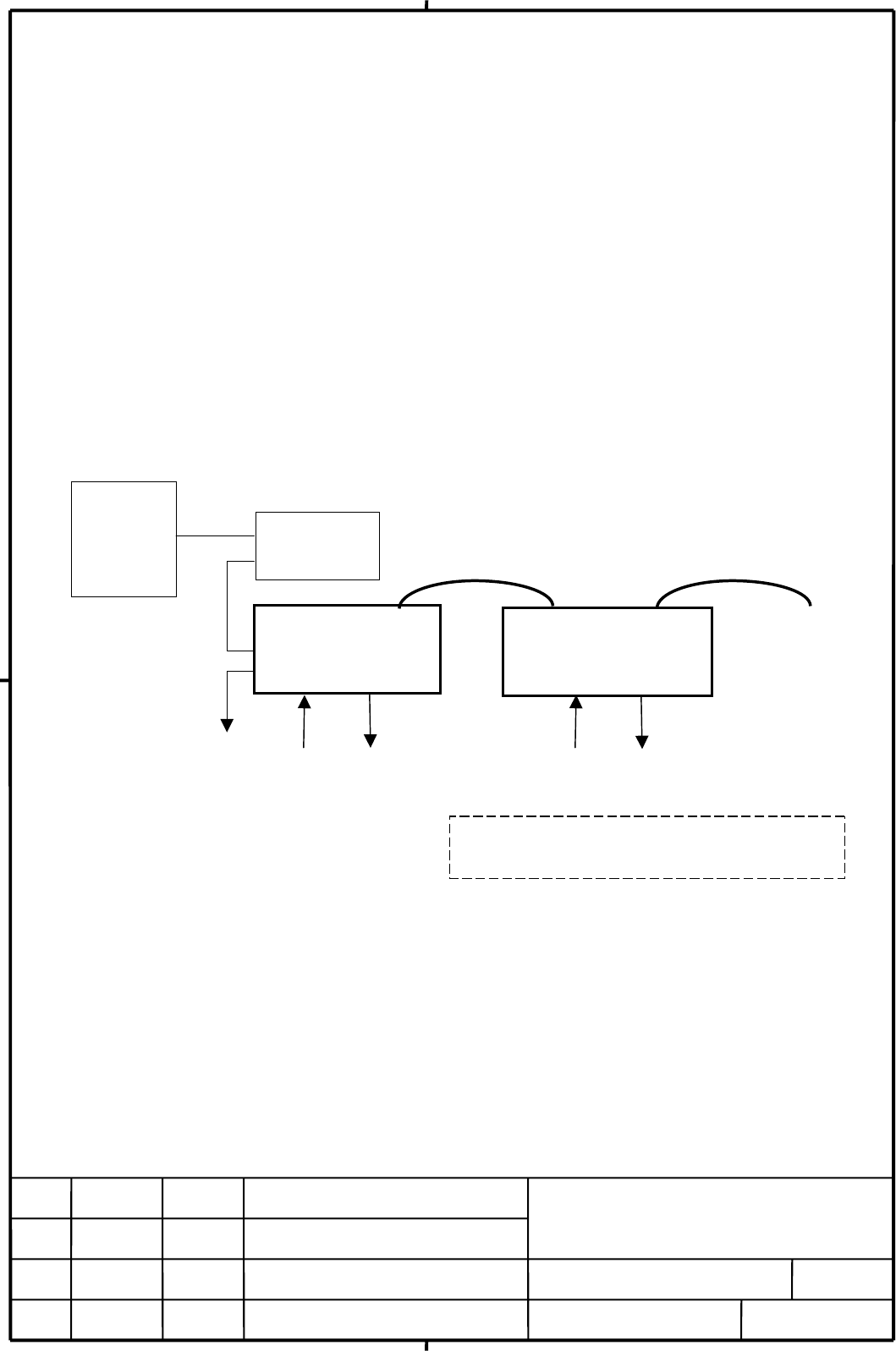

CNC
Connection
I/O
A-86491E
I/O Link
I/O Link
Extension cable
Terminal type I/O
(Basic module)
Input Output
24
p
t 16
p
t
Terminal type I/O
(Extension module)
Extension cable
Input Output
24
p
t 16
p
t
It is possible to connect up to 3 extension
modules with the flat cable.
