1 General
Each axis workpiece coordinate system preset signal presets a workpiece coordinate system
shifted by manual intervention, machine lock, etc. to the pre-shift workpiece coordinate
system by input signal.
2 Parameter
02)
#7 #6 #5 #4 #3 #2 #1 #0
1205 WTC
[Data type] Bit
WTC When workpiece coordinate system preset is done, actual tool length offset is:
0 : Not considered.
1 : Considered.
When this paramter is set, the workpiece coordinate system preset by G-code, MDI
operation or input signal is done without cancelling the compensation modes. (cutter
compensation, tool length compensation and tool offset.)

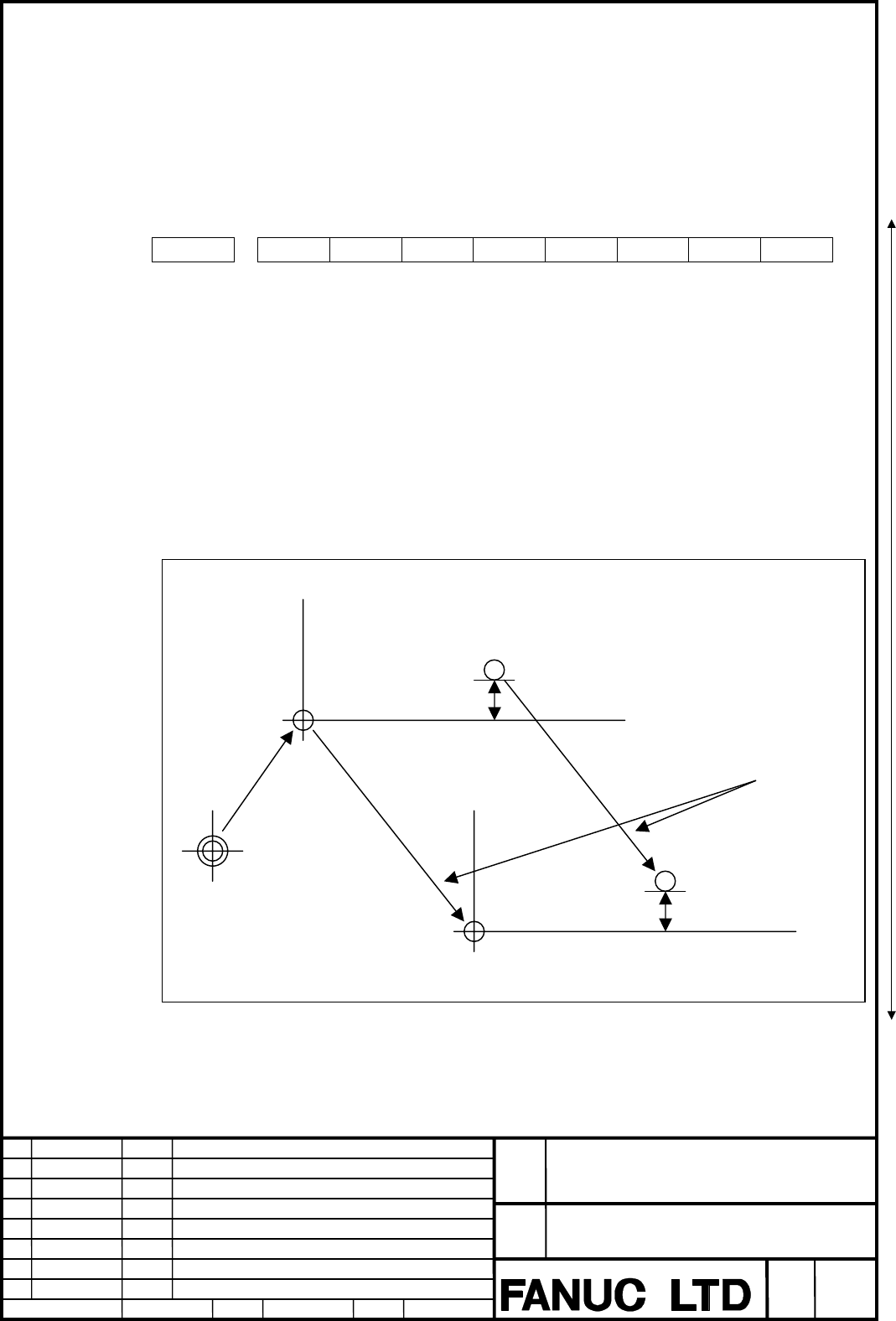

The compensation vector is kept as the below figure when the workpiece coordinate system
preset is done to the coordinate shifted by amount of movement during manual intervention.
Machine zero point
Amount of movement
during manual intervention
Po
WZo
Pｎ
WZｎ
G54 workpiece coordinate
System before manual
intervention
G54 workpiece coordinate
system after manual intervention
Tool length offset value
A-79104E
Edit
Apprv.
Desig.
Sheet
Title
Draw
No.
Date
Design
Descri
p
tion
Date
FANUC Series 16i/18i/21i –MB/TB, 18i –MB5
Each axis workpiece coordinate system preset
signal Specifications
2004.03.26
02 2004.06.07 02) part changed
2/4
