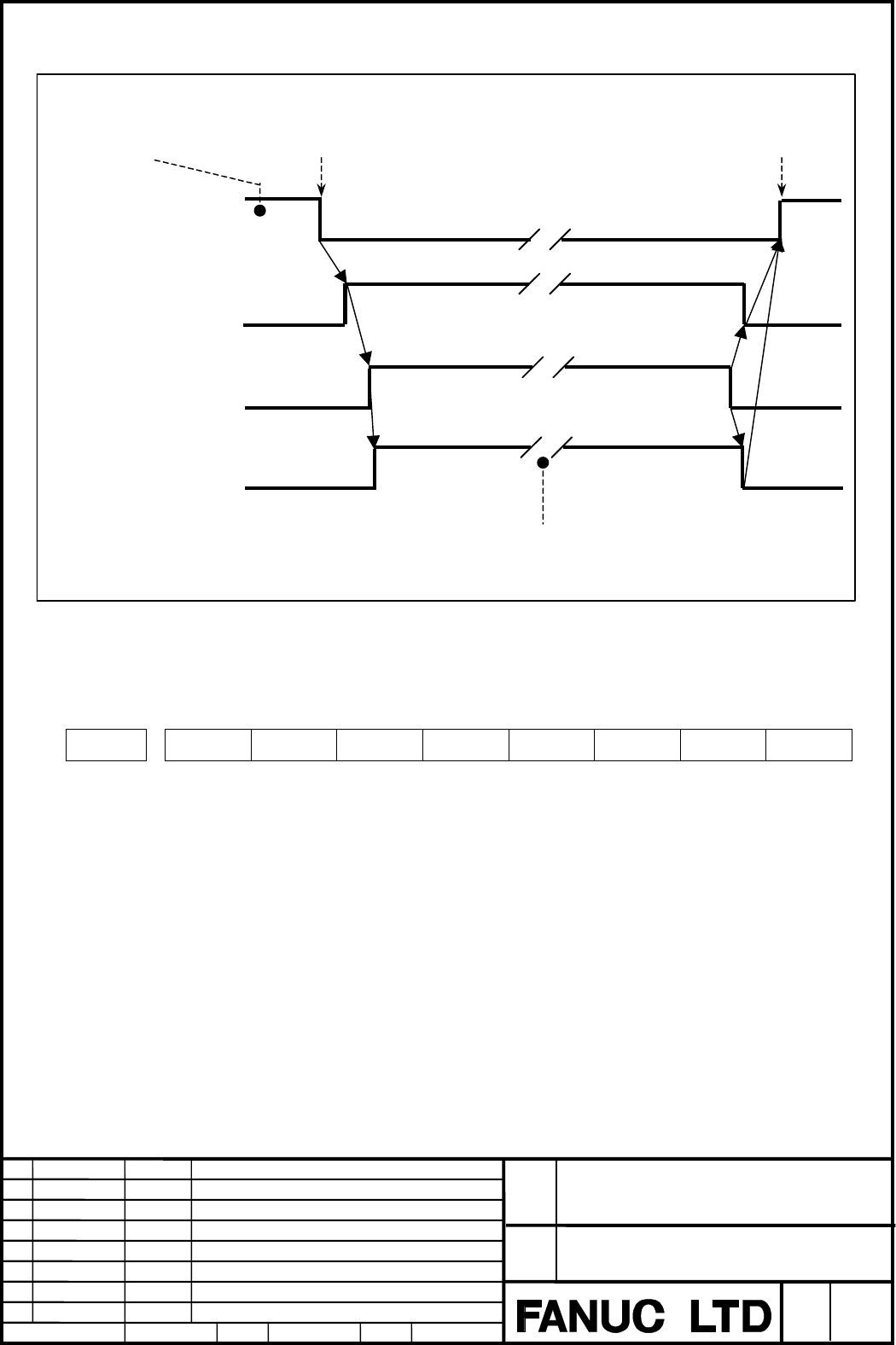

The following timing chart shows how the input and signals behave.

utomatic operation

starting signal (STL)

ctive offset change mode

signal (CHGAO)

ctive offset changing

signal (MCHAO)

The offset selected by the active offset

selection signal (AOFS1 or AOFS2) is

changed by manual feed.

command such as Txxxx, or G54

specifies what tool compensation number

or workpiece coordinate system is to be

made valid.

Manual feed

(handle/incremental/jog)

mode

Operation restarts

with the new offset.

Operation is put at pause

(stop) to change the offset.

4. Parameter

#7 #6 #5 #4 #3 #2 #1 #0

3115 APL

[ Input type ] Parameter input

[ Data type ] Bit axis

APL Specifies whether to preset the relative position indicator automatically

when the manual feed-based active offset change mode is selected, as

follows:

0: Do not preset.

1: Preset.

This signal is used to restore the previous value of an offset when it has

been changed in the manual feed-based active offset change mode.

Making axis movement by manual feed in such a way that the relative

position indicator (counter) becomes 0 can restore the previous value of

the offset.

Edit

Apprv.

Desig.

Sheet

Title

Draw

No.

Date

Design

Descri

tion

Date

FANUC Series16i/18i/21i–TA/TB

Changing Active Offset Value

with Manual Move.

-78376

03 Jan.21.’02 Addition and modification of (3)

02 Feb.08.’01 T.Endo Overall revisio H.Kochiya

Jan.16.’01 T.Endo H.Kochiya

7/10
