FS30i Additional Manual Page 3

Additional Manual
3
1.1.1 Explanation
When the paraemter TWD(No.12320#0) is "1", in the mode of Tilted Working
Plane command, the Manual Feed for 5-axis machining is executed in the
following directions.
∙ Tool Axis Direction Handle Feed(Interruption) / JOG Feed / Incremental
Feed , Table Vertical Direction Handle Feed(Interruption) / JOG Feed /
Incremental Feed
Feed direction ----- Z direction on the Feature coordinates sytem of the
Tilted Working Plane command
∙ Tool axis right-angle direction 1 Handle Feed(Interruption) / JOG Feed /
Incremental Feed , Table Horizontal Direction 1 Handle Feed
(Interruption) / JOG Feed / Incremental Feed
Feed direction ----- X direction on the Feature coordinates sytem of the
Tilted Working Plane command
∙ Tool axis right-angle direction 2 Handle Feed(Interruption) / JOG Feed /
Incremental Feed , Table Horizontal Direction 2 Handle Feed
(Interruption) / JOG Feed / Incremental Feed
Feed direction ----- Y direction on the Feature coordinates sytem of the
Tilted Working Plane command

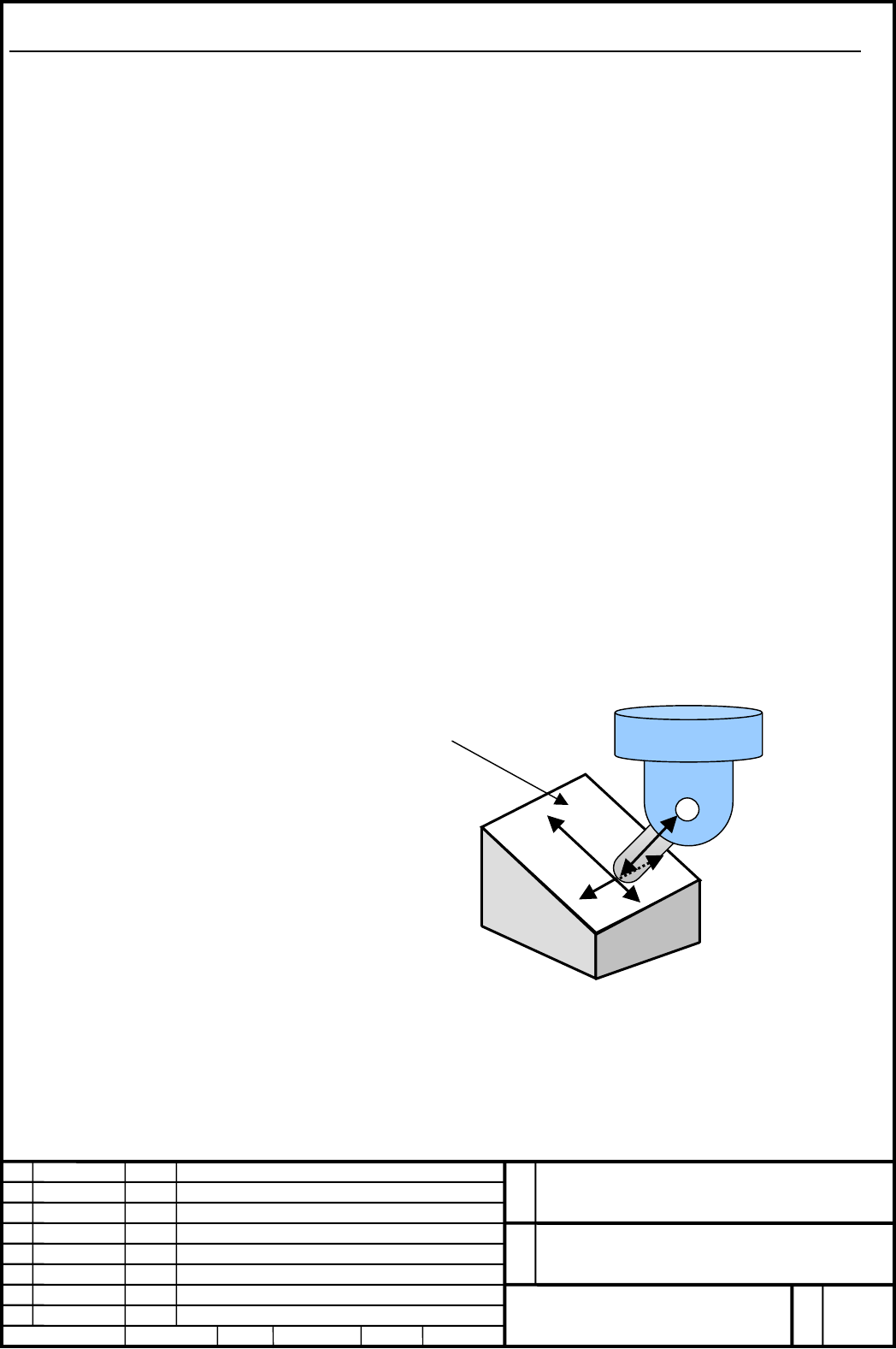

C
+Z
+Z
-
Y
+
Y
-X
+X
Plane of Tilted Working plane
command
Ed.
Apprv.
Person
Page
Name No.
Date
Person
Contents
Design
FANUC Series 30i
Enhancement for Feed direction of Manual
Feed for 5-axis machining Specifications
A-79292E
2003.10.28
T.Sasaki S.Ide
FANUC LTD.
/ 4
