FANUC Series 30i-MODEL A
Single Direction Positioning
1.1 SINGLE DIRECTION POSITIONING
General
For accurate positioning without play of the machine (backlash), final
positioning from one direction is available.

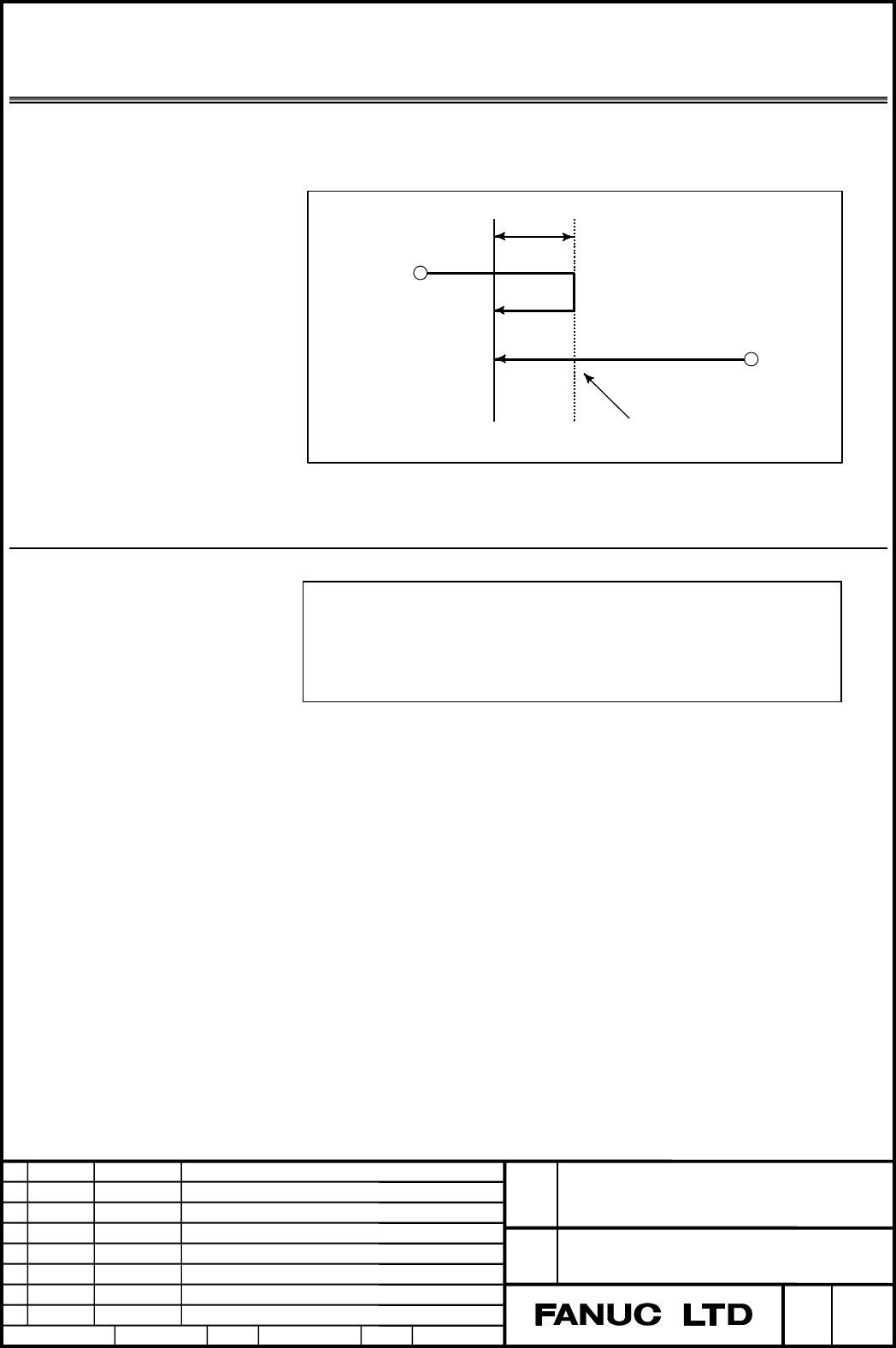

Fig.1.1 (a) Direction positioning process
Format
Start position
End position
Temporary stop
Start position
Overrun
G60 IP_ ;
IP_ : For an absolute command, the coordinates of an
end position, and for an incremental commnad, the
distance the tool moves.
