FS 16i/18i/21i-MA/MB/TA/TB, 18i-MB5, Periodical secondary pitch error compensation Additional Manual Page 6
Additional Manual
3. Example
When a rotary table is rotated using a gear, a pitch error relative to the cycle of
the rotation of the rotary table occurs, as does a pitch error relative to the cycle
of the rotation of the gear for rotating the rotary table. To compensate for these
two types of pitch errors, the pitch error relative to the cycle of the rotation of
the gear is superimposed on the pitch error relative to the cycle of the rotation
of the rotary table.

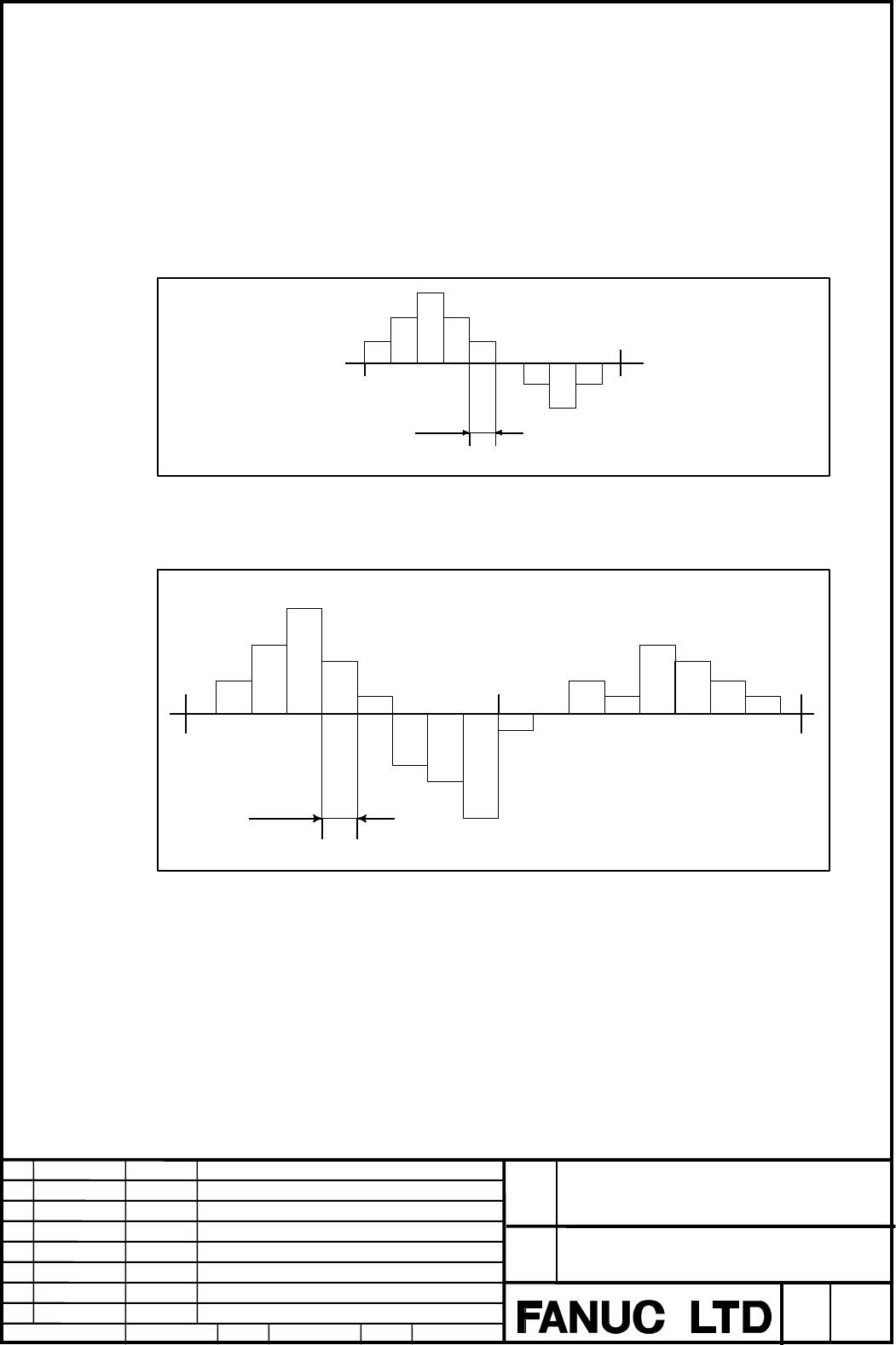

- Pitch error relative to the cycle of the rotation of the gear
(if the rotary table rotates by 20 deg per rotation of the gear.)
0 de
g
2 deg
20 de
g
Fig 1.1(d)
- Pitch error with a 360 deg cycle
0 deg
360 de
g
180 deg
A
ε
20 deg
Fig 1.1(e)
Edit
Apprv.
Desig.
Sheet
Title
Draw
No.
Date
Design
Description
Date
FANUC Series 16i/18i-MA/MB, 18i-MB5
FANUC Series 16i/18i-TA/TB
Periodical secondary pitch error compensation
A-78868E
2003.04.11
Egashira
5/8
