FS 16iTA/TB Binary code controlled axes with the control on 2 CPU 2 Paths control Additional Manual Page 2
Additional Manual
2
Edit
Apprv
Desig
.
Sheet
Title
Draw
No.
/
5
Date
Design
Description
Date
FANUC Series
16
i
-TA
/TB
Binary code controlled axes with the
control on 2 CPU 2 Paths control
A-
76489
02.07.02
H.Matsuura
02
02.09.05
Matsuura
Rewritten
1.
Outline
This function realizes various grinding, such as cylindrical grinding or non-cylindrical grinding
with dual grinding heads simultaneously.
FANUC series 16i-TA/TB with 2 path system controls those two grinder heads by the binary command
commanded in path1 and path2.
Path-1(Grinding Head 1)
X(1) axis
Z(1) axis
B(1) axis
C axis
Path-2(Grinding Head 2)
X(2) axis
Z(2) axis
B(2) axis
(C axis) dummy
X(1),X(2),Z(1),Z(2) axes
：
Machining axis for head 1/ head 2
B(1),B(2) axes
：
Coolant control axes for head 1/head 2
C axis
：
Rotary axes with workpiece
(C axis)
：
Dummy rotary axes for path-2
(Note 1) Actual rotary axes for fixing workpiece (C axis) exist in path-1 side.Dummy Rotary
axes (C axis) is prepared in path-2 side.
(Note 2) Binary programming operation with data server is executed by the way that the
M198 command calls out the binary program in data server.
（

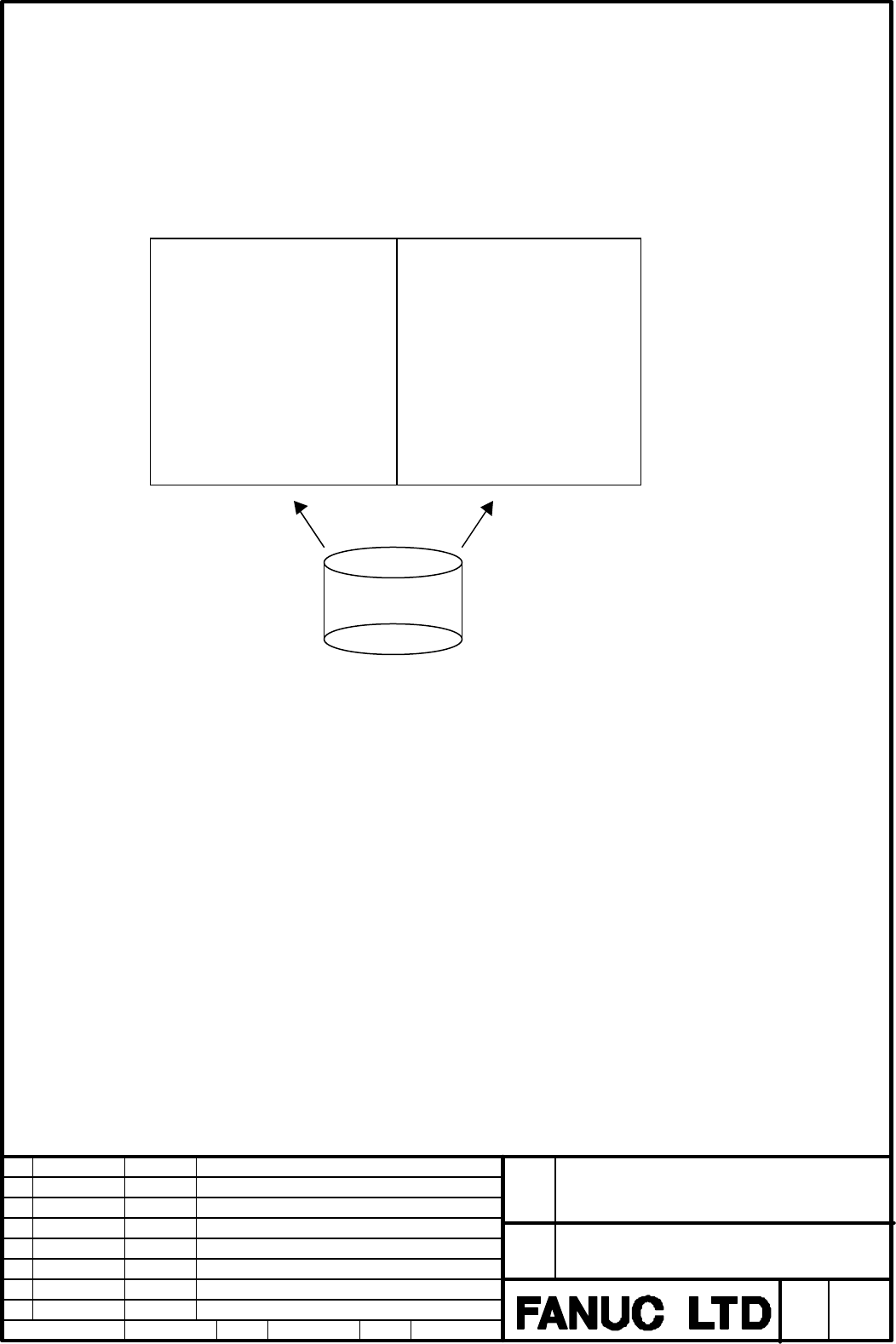

Axes construction
）
Data Server
Binary Program
