(7) Installation
(7)-1 Abstruct
αi BZ sensor should be installed in the following procedure.
1. Insert and attach the parallel pins to the sensor mounting surface of the spindle.
2. Attach the detection ring to the spindle shaft (or the sleeve) by shrink fitting.
3. Adjust the gap between the sensor head and the detection ring, and fix the
sensor head to the spindle.

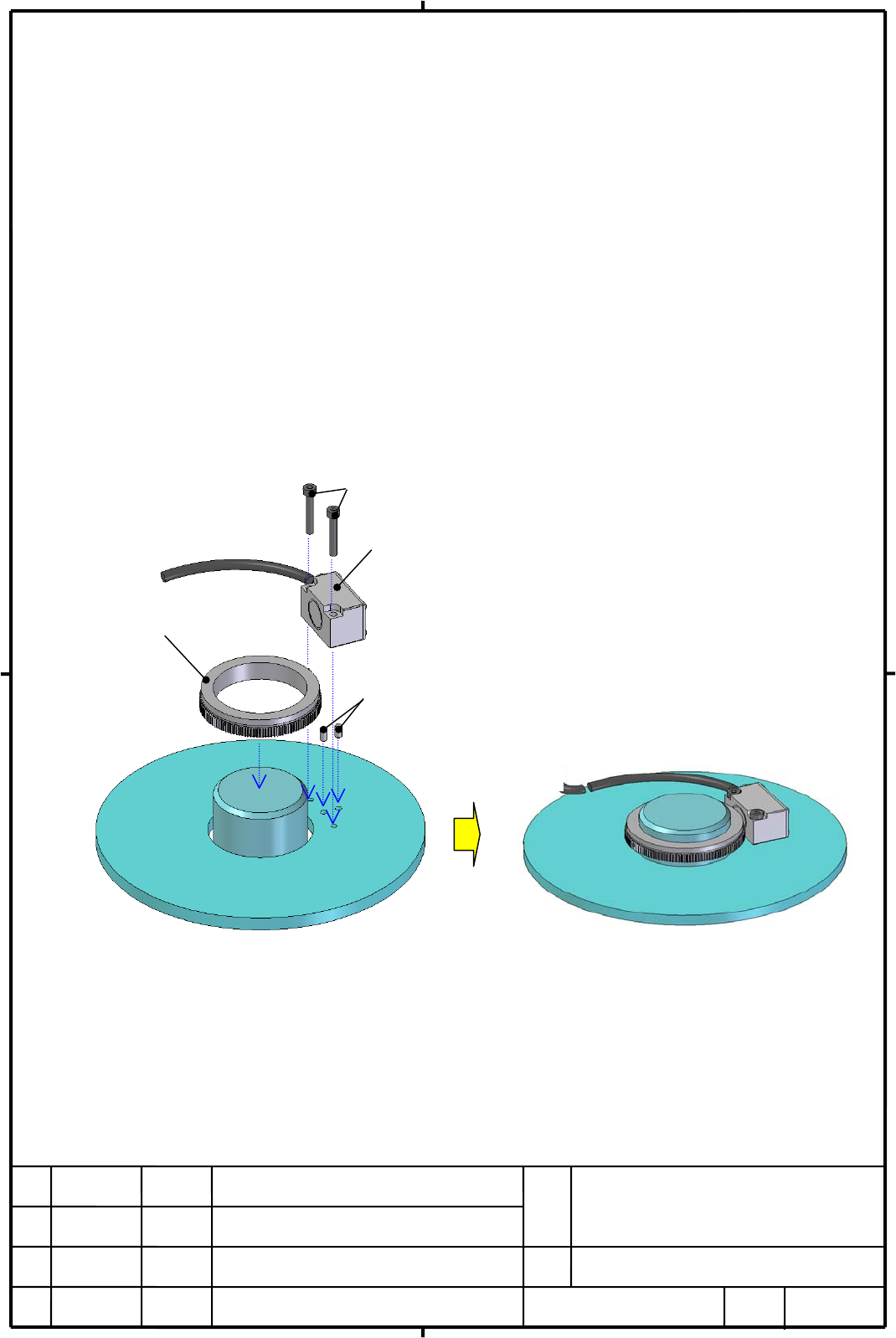

Fig.1 shows the schematic drawing of the components of the α
i BZ sensor, and Fig.2
shows the schematic drawing of the α
i BZ sensor after installed.
Bolts to attach the sensor head
（M3,length20 is recommended）
Sensor head
Parallel pins
(φ3 : included)
Detection ring
Shaft
Sensor mounting
surface
Fig.1
Fig.2
