Additional Specification of Non-Waterproof Connector to Additional Manual Page 8
Additional Manual
DRAW.
N
o.
TITLE
Pa
g
e 7/13DESCRIPTIONDESIGN DATE
EDIT
01
NAGATOMO
New
αiBZ sensor
A-56731E-0100
FANUC LTD
05.11.02
NOTE
・ The maximum permissible temperature is 80deg.
・ The αi BZ sensor is precision device, so please be very careful in its handling. In particular, don’t apply shock or
stress to the sensor head.
・ Attach and fix the sensor cable to the machine to prevent the direct tensile stress to the sensor head.
・ The waterproof performance of the αi BZ sensor is IP 67. But please notice that the waterproof performance
prescribed by the IP rating is limited to the situation that the subject is water and the time of exposure is short, and it
is not a guarantee. Please apply a cover or take some kind of countermeasure like that so that the coolant does not
splash on the sensor head directly
・ In installing the αi BZ sensor, make sure that the regulations in (8) are satisfied.
・ To ensure ease of maintenance, install a sensor in a location where it can be replaced easily.
・ The detection ring of the αi BZ sensor can be exchanged to another detection ring of the same drawing number.

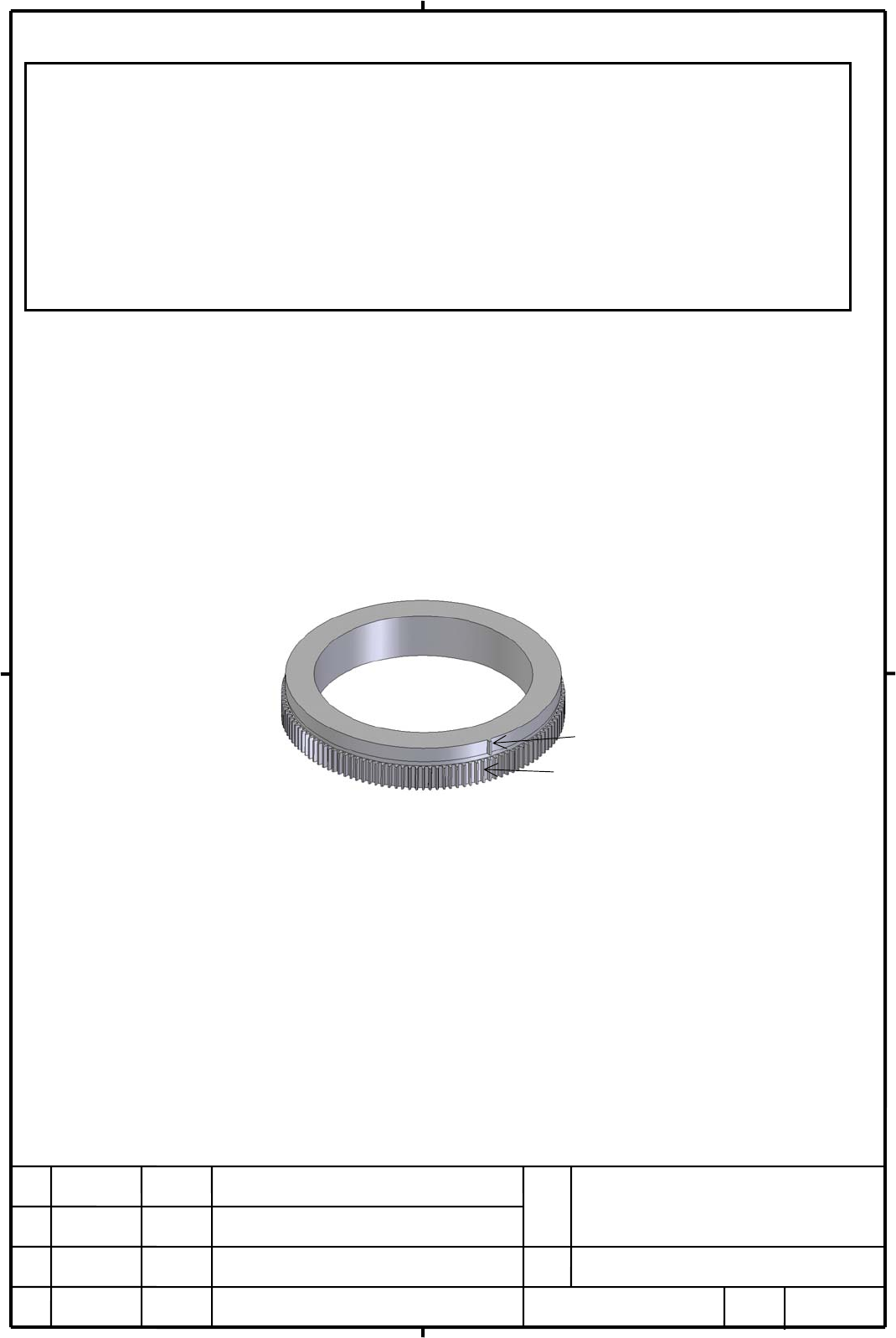

Note about the detection ring
The detection ring of αi BZ sensor has the Z signal area and the AB signal area, which is integrated
in one ring. The Z signal area of the detection ring consists of the convex projection shape and the
AB signal area consists of the gear shape. In the handling of the detection ring, please be careful to
avoid the chipping or the deformation of its outer tip.
Z signal area
A
B signal area
