FS 16i/18i/21i-MA/TA, Automatic Operation and Temporary Storage of External Program Supplement to Manual Page 4

Supplement to Manual
on CNC.
Example)
No.12011 = 7,000
No.12012 = 7,999
Part program on the temporary storage memory : O7000 - O7999
Part program on the part program storage memory : O0001 - O6999
O8000 - O9999

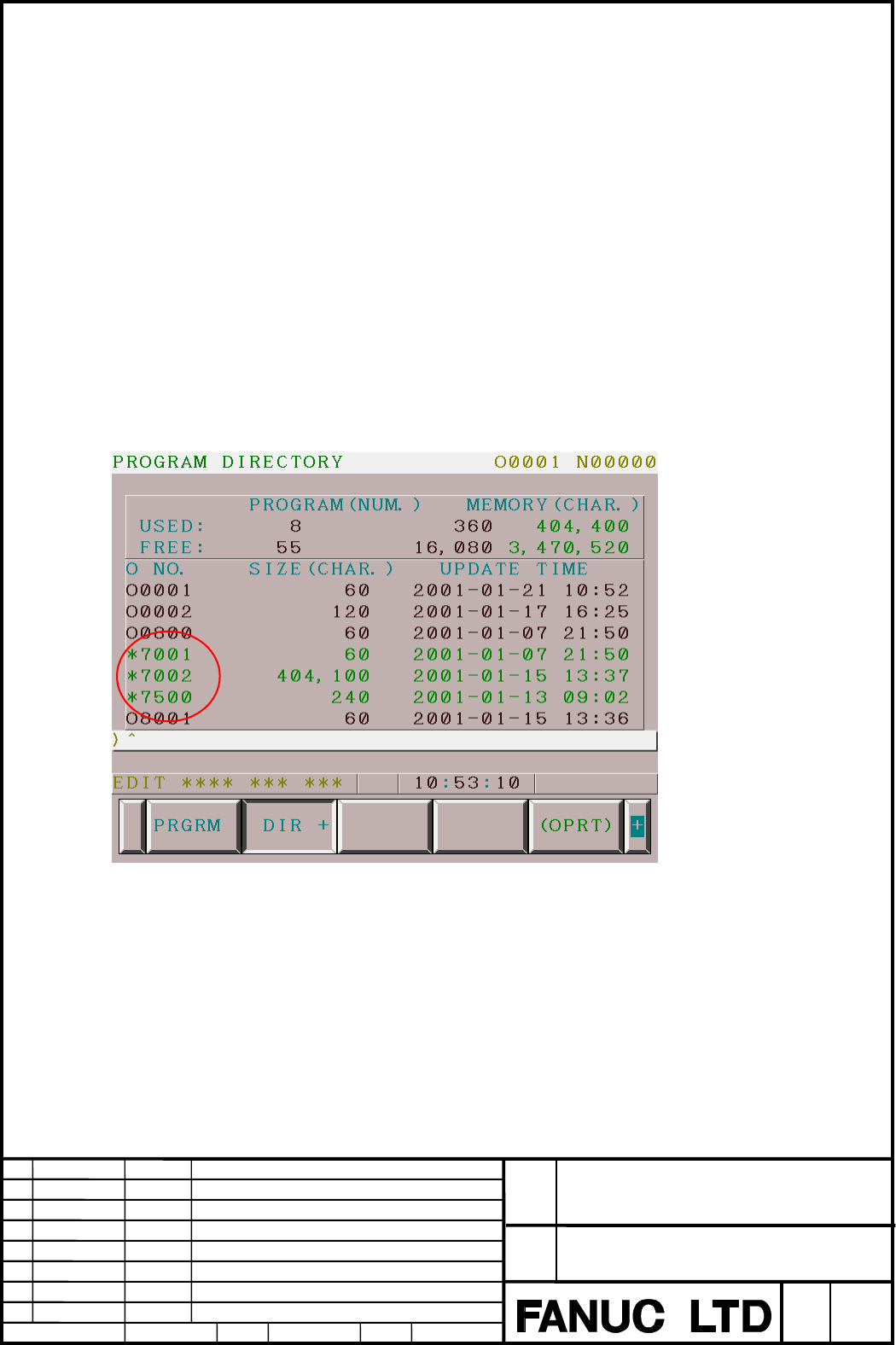

2.3 Display of program directory screen
The “O” number of part program on the temporary storage memory is displayed
as
“*”character.
2.4 Number of registered part program on the temporary storage memory
Number of registerable part program on the temporary storage memory is the
number which pulls the number of registered part program on the part program
storage memory from the number of all registerable programs.
Example)
Number of all registerable programs : 400
Edit
Apprv.
Desig.
Sheet
Title
Draw
No.
4
/
4
Date
Design
Descri
p
tion
Date
FANUC Series16i/18i/21i–MA/TA
Automatic operation and temporary
storage of external program
ith M l M
A
-78620
09.Oct.’01 T.Endo H.Kochiya
