7. MACHINE OPERATION MENU DATA
Machine operation menu data is created on the personal computer by using a menu creation tool.
[System required for the menu creation tool]
Microsoft Windows 2000 Japanese Version or Windows XP Japanese Version
and Microsoft Excel 2000 Japanese Version
8. MACHINE OPERATION MENU DATA INPUT/OUTPUT
[Input method]
（１） Create a machine operation menu definition file (named EXSFTKEY.MEM) with the menu
creation tool, then store the file on the memory card.
（２） Turn off the power.

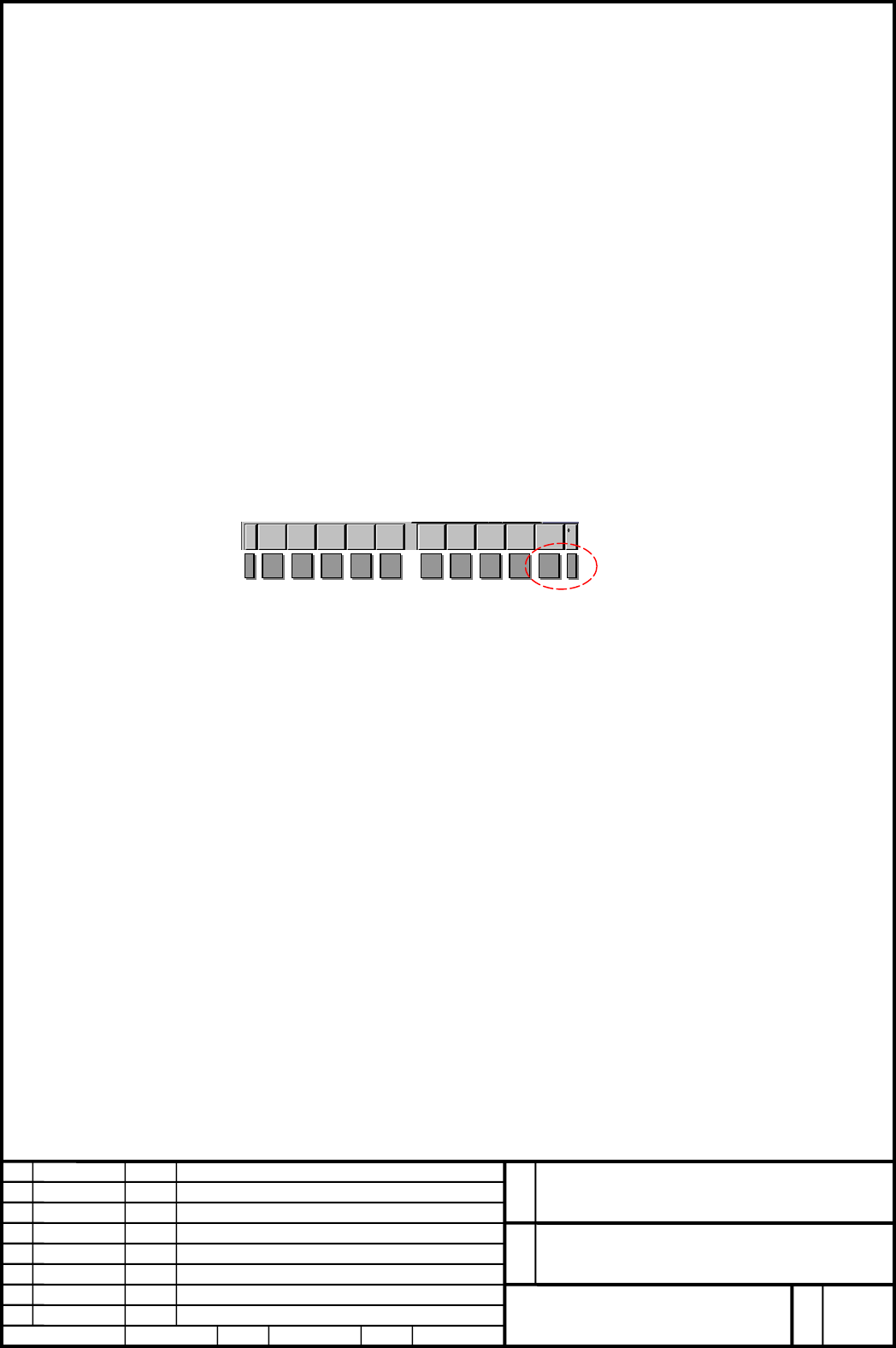

（３） Insert the memory card into the slot placed on the side of the display unit, then turn on the
power while holding down the [ ] (F10) and [ > ] (switch) soft keys at the same time.
[For the 10.4-inch display unit]
（４） The SYSTEM MONITOR MAIN MENU is displayed,
（５） Select “2.USER DATA LOADING”.
（６） Select a file. The selected file is then stored in the FROM. Next, select END to end the
processing.
(Note that if the power is turned off during storing operation, the FROM can be destructed.)
（７） Select END on the SYSTEM MONITOR MAIN MENU.
[Output method]
（１） Insert the memory card into the slot placed on the side of the display unit.
（２） Turn off the power.
（３） Insert the memory card into the slot placed on the side of the display unit, then turn on the
power while holding down the [ ] (F10) and [ > ] (switch) soft keys at the same time.
（４） The SYSTEM MONITOR MAIN MENU is displayed,
（５） Select “6.SYSTEM DATA SAVE“.
（６） Select the machine operation menu definition file (named “EXSFTKEY”). Extended soft key
data is written to the memory card. Next, select END to end the processing.
（７） Select END on the SYSTEM MONITOR MAIN MENU.
ED
PAGE
11／15
DATE
COMMENTS
CREATE
FANUC Series30i/31i/32i-MODEL A
MACHINE OPERATION MENU
Ａ−７９１７６E／０１
FANUC
