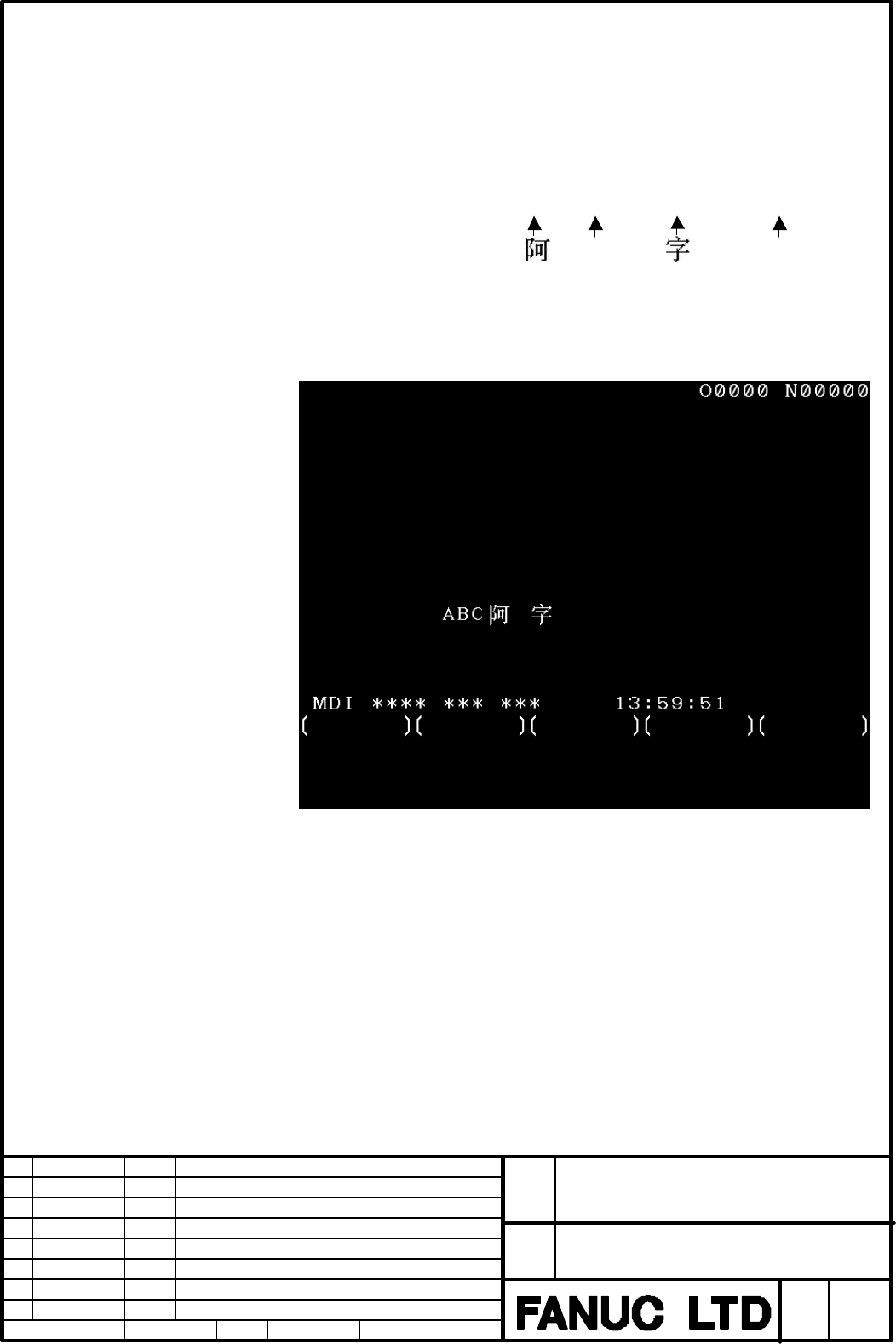

Example2) When instructing in a Simplified Chinese and half-size
character at the same time.
G240 K1;
G243 X10. Y10. (ABC) (“B0A2”) ( ) (“D7D6”);
ABC SPACE(half-size)
It is displayed at the position of character coordinate system
(10,10) as follows when instructing like this.
Simplified Chinese is not influenced by the specification of the
printed character size (address A). Moreover, ASCII half-size
character code specified in the Simplified Chinese mode always
becomes standard character size (A1) regardless of addresses A
specification. (It is similar in the instruction by address C and K.)
The function of other command addresses by the G243 instruction
is similar to the specification of a past character display command.
(Please refers to the manual clause 6.1.2 for the use of each
address.)
