FANUC SERVO AMPLIFIER
βi series SVM DESCRIPTIONS
A
-72562EN-026

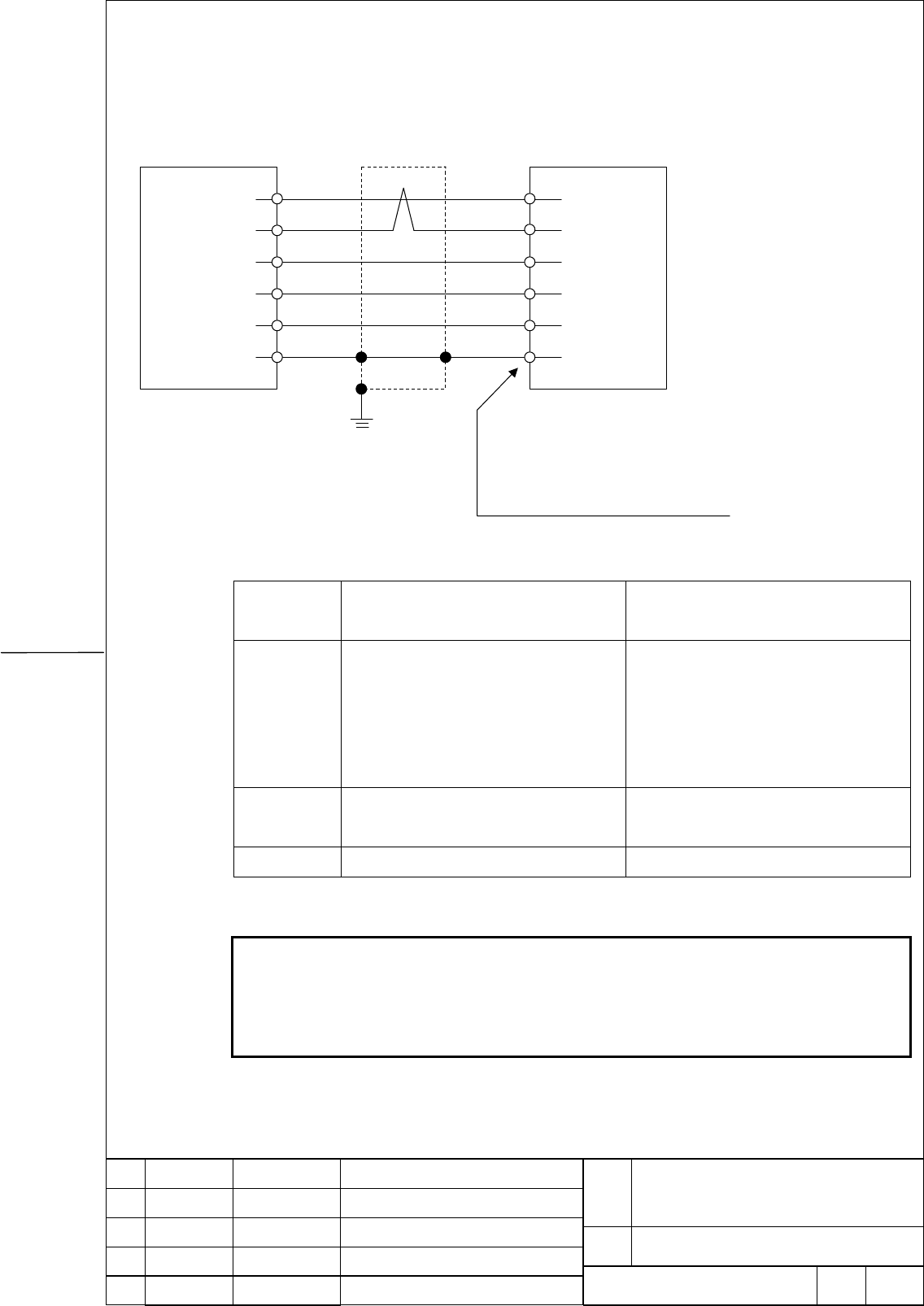

Detail of K1
αi, αis series servo motor
βis series servo motor(β0.4/5000is ..β22/2000is)
Using cable conductor
Cable
length
28m or less
50ｍ or less
5V, 0V, 6V
0.3mm
2
x 5
Strand configuration: 12/0.18 or
60/0.08
Insulation outer diameter: φ1.5 or
less
0.5mm
2
x 5
Strand configuration: 20/0.18 or
104/0.08
Insulation outer diameter: φ1.5 or
less
RD, *RD
0.18mm
2
or more
Twisted-pair wire
0.18mm
2
or more
Twisted-pair wire
Drain wire 0.15mm
2
or more 0.15mm
2
or more
Note1
Earth plate shall be installed close to the servo amplifier.
Distance between servo amplifier and the earth plate shall be as short as possible.
* At αMi, αCi series servo motor, refer to above connection.
Connector (Japan Aviation Electronics Industry)
JN2□S10SL1 : for
φ
5.7 to
φ
7.3 sheath diameter
JN2□S10SL2 : for
φ6.5
t o
φ8.0
sheath diameter
D : straight plug
Ｆ : angle plug
Contact ( Japan Aviation Electronics Industry)
JN1-22-22S
（5）
Servo Motor
20-pin half-pitch connector
（6）
（9, 20）
（12, 14）
SVM
（7）
RD
＊RD
5V
0V
6V
（6）
（5）
（8, 9）
（7, 10）
（4）
（16）
（3）
drain wire
shield
FG
earth plate
Previous page
Next page
