  2. FANUC SERVO AMPLIFIER Beta i series DESCRIPTION

FANUC SERVO AMPLIFIER Beta i series DESCRIPTION Additional Manual Page 21

Additional Manual
TITLE
DRAW
.
No.
20/37
Page
FANUC LTD
DESCRIPTION DESIGN DATE
EDIT
FANUC SERVO AMPLIFIER
βi series SVM DESCRIPTIONS
A
-72562EN-026
βis series servo motor (β0.2/5000is, β0.3/5000is)
Using cable conductor
Cable length 20mor less
5V, 0V, 6V
0.5mm
2
(AWG21)x 5
Strand configuration 20/0.18
Insulation outer diameter φ0.88 to φ1.5
SD, *SD, REQ, *REQ
0.18mm
2
(AWG25) or more, Twisted-pair wire
Strand configuration 7/0.18
Insulation outer diameter φ 0.88 to φ 1.5
Drain wire 0.15mm
2
or more
Recommended
cable conductor
0.5mm
2
x 5 + 0.18mm
2
x 2 pairs
Hitachi cable Ltd.
For fixed cable
UL20276-SB(0) 5X21AWG+2PX25AWG
For flex cable
UL20276-SB(FLEX) 5X20AWG+2PX25AWG
Note1
Earth plate shall be installed close to the servo amplifier.
Distance between servo amplifier and the earth plate shall be as short as possible.
Housing: : 1-1318118-6（D-2100D 12P）
Contact : 1318107-1（D-2 REC M）
1318108-1（D-2 REC S）
Supplier : Tyco electronics AMP

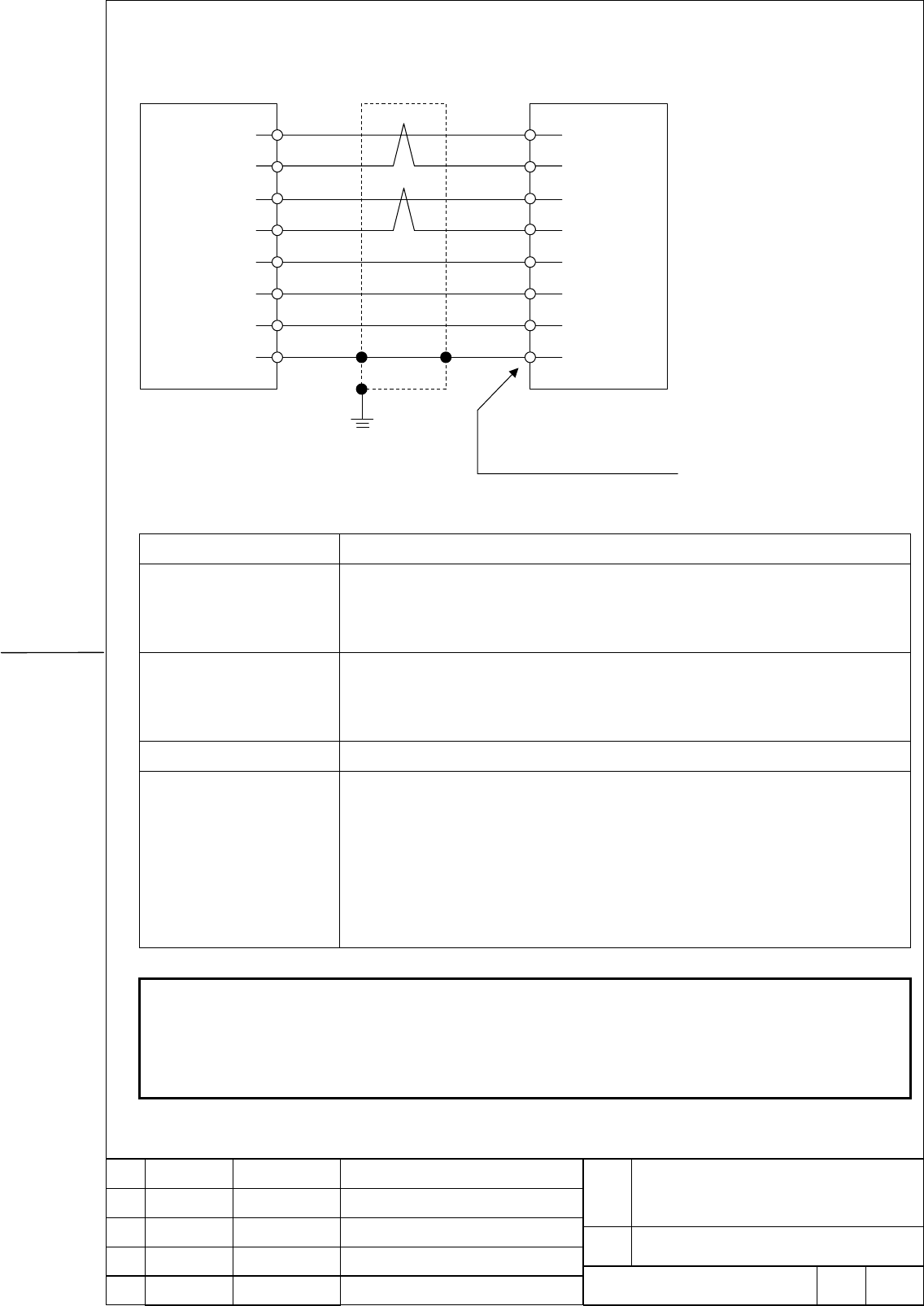

（5）
servo motor
20-pin half-pitch connector
（6）
（9, 20）
（12, 14）
SVM
（7）
REQ
＊REQ
5V
0V
6V
（A3）
（B3）
（A2, B2）
（A1, B1）
（A5）
earth plate
shield
（1）
（2）
SD
＊SD
（A4）
（B4）
（B6） FG （16）
drain wire
