Tool_management_function_for_Oversize_tool.pdf Additional Manual Page 11

Additional Manual
Ed.
Date
Design
Description
Name
Draw.
FANUC MANUAL GUIDE i
SPECIFICATION
A-90154
Page
FANUC LTD.
11/12
2005.7.21

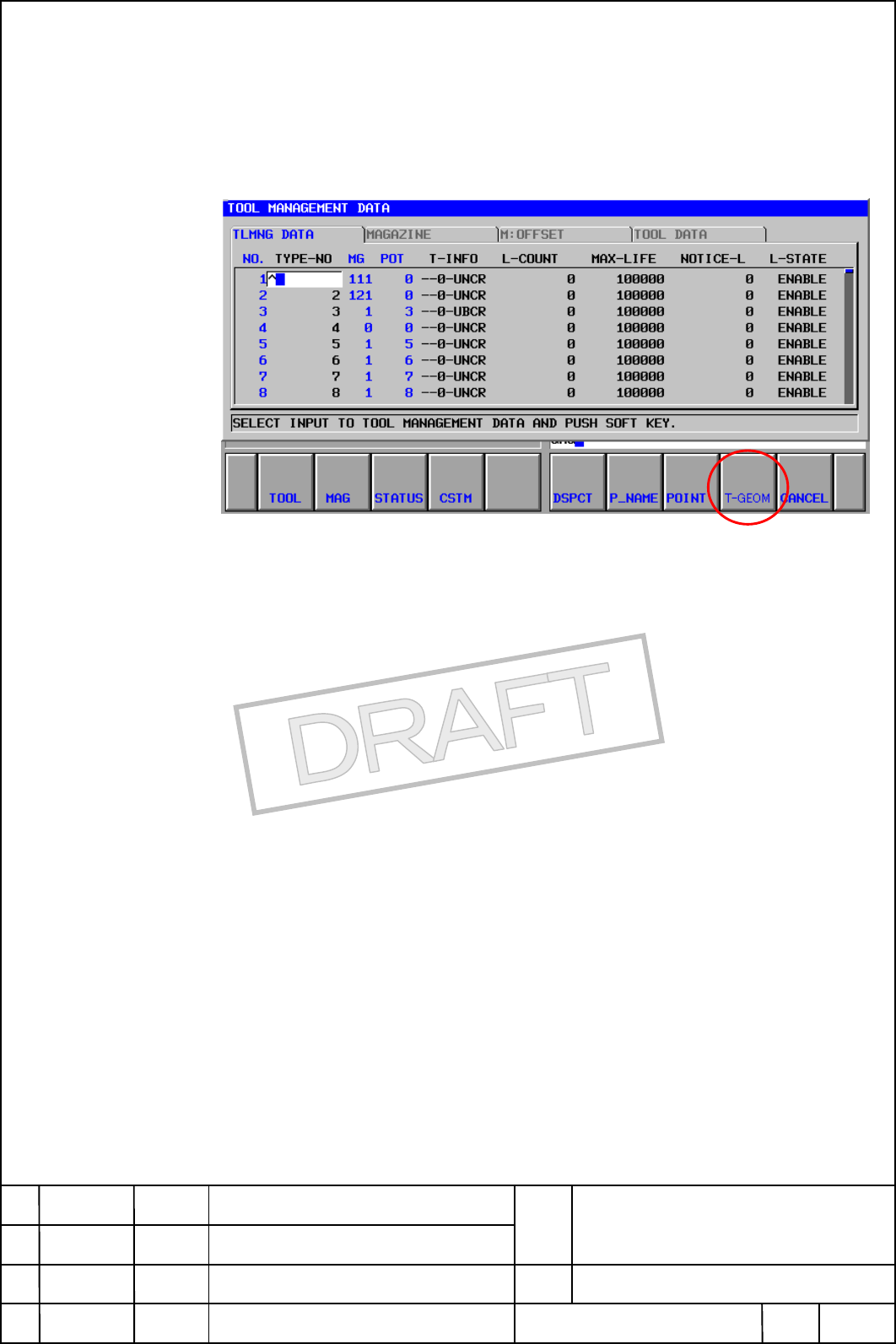

(2) When "Output" or "Input" software key is pushed, the following
screens are displayed.
(3) When the "T-GEOM" soft key is pushed, and "Exec" soft key is
pushed, the tool figure data is input and output to the memory
card.
When tool figure data does not exist on the memory card, the following
NC alarms are displayed.
“1966 File not found”
When tool figure data already exists on the memory card, the following
NC alarms are displayed.
“1973 Same file already exist.”
Tool figure data format
The tool management function and the oversize tool data format are the
same as the existing one.
Please refer to the tool management function specifications for details.
