Tool_management_function_for_Oversize_tool.pdf Additional Manual Page 8

Additional Manual
Ed.
Date
Design
Description
Name
Draw.
FANUC MANUAL GUIDE i
SPECIFICATION
A-90154
Page
FANUC LTD.
8/12
2005.7.21

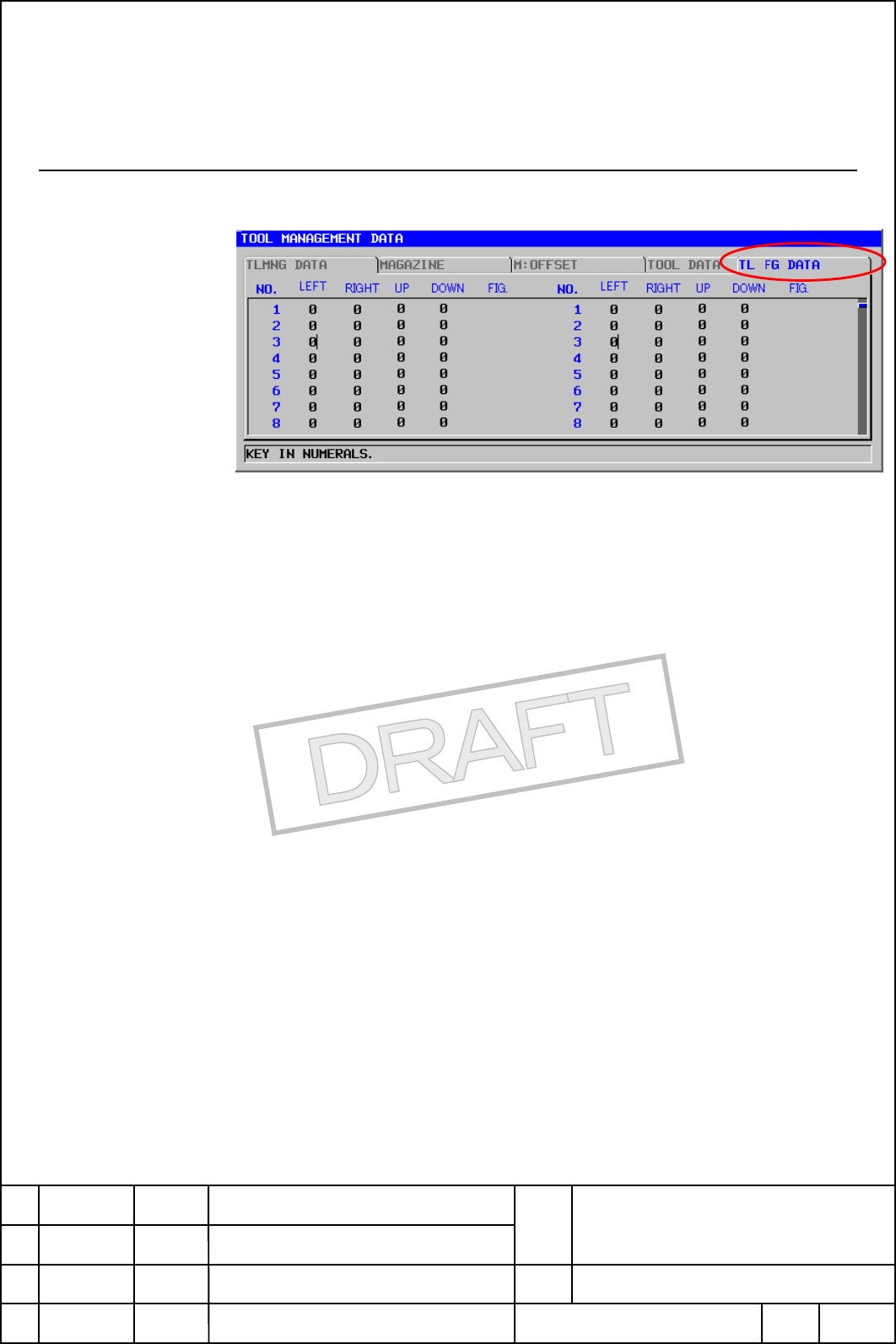

2.1.3 Tool figure data tab
The tool shape data is displayed.
NO. : Tool figure number.
The tool figure number is displayed. The value cannot be set.
LEFT
The pot occupied from a standard pot left side is displayed in the
occupation area of the tool. The value of 0-4 can be set. A set
value is four or less (For two pots) by every 0.5 pots.
RIGHT
The pot occupied from a standard pot right side is displayed in
the occupation area of the tool. The value of 0-4 can be set. A
set value is four or less (For two pots) by every 0.5 pots.
UP
The pot occupied from a standard pot up side is displayed in the
occupation area of the tool. The value of 0-4 can be set. (It is an
invalid value in the magazine of the chain type.) A set value is
four or less (For two pots) by every 0.5 pots.
DOWN
The pot occupied from a standard pot down side is displayed in
the occupation area of the tool. The value of 0-4 can be set. (It is
an invalid value in the magazine of the chain type.) A set value is
four or less (For two pots) by every 0.5 pots.
FIGURE
A or B can be selected with the soft key.
Previous page
Next page
