QuickTurn Electronic Lathe Connection manual (Hardware) Page 28

Connection manual (Hardware)
QuickTurn™
GFKE-0201B-EN - 28 - GE Fanuc Automation S.A.

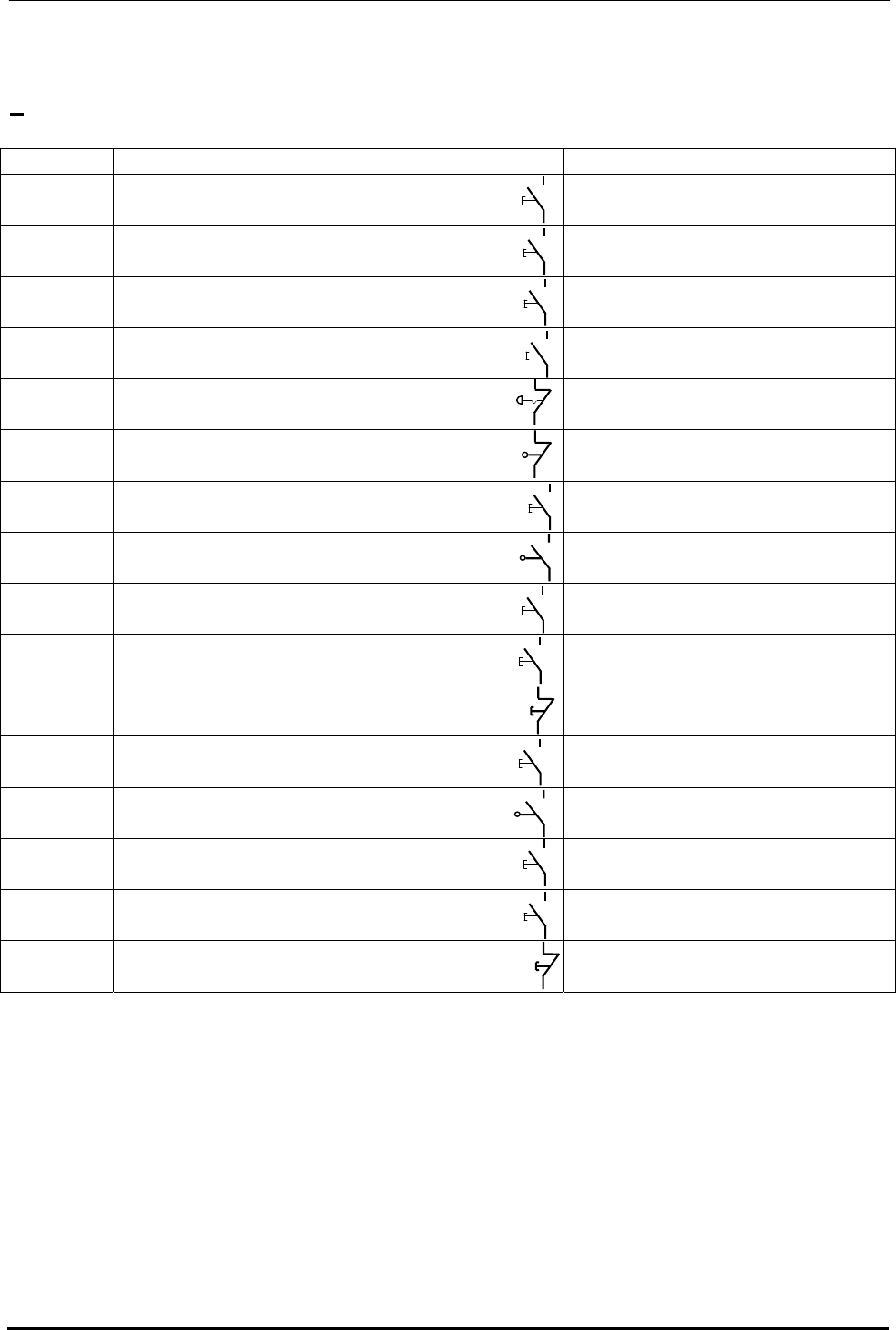

7 Input Signals
Address Signal Description Remarks
X8.0 Joy Stick + X 0: No Effect
1: Request to Move Axis
X8.1 Joy Stick -X 0: No Effect
1: Request to Move Axis
X8.2 Joy Stick +Z 0: No Effect
1: Request to Move Axis
X8.3 Joy Stick -Z 0: No Effect
1: Request to Move Axis
X8.4 Emergency Stop 0: Emergency Stop ON
1: No Emergency Stop
X8.5 Tail Stock +Z Limit Switch 0: +Z Axis Overtravel Alarm
1: No Alarm
X8.6 Push Button Manual Rapid 0: No Effect
1: Manual Rapid ON
X8.7 Machine Door Open/Closed Check 0: Door Open (Block Cycle + Spindle)
1: Door Closed
X9.0 Push Button Spindle CW 0: No Effect
1: Request to run Spindle CW (Pulse)
X9.1 Push Button Spindle CCW 0: No Effect
1: Request to run Spindle CCW (Pulse)
X9.2 Push Button Spindle Stop 0: Spindle Stop (Spindle Blocked)
1: Spindle in Condition to Run
X9.3 Push Button Manual Lubrication 0: No Effect
1: Start Lubrication (Pulse)
X9.4 Oil Level 0: No Effect
1:
Stop Working of Lubrication Device
X9.5 Push Button Increase Operation by 1 0: No Effect
1: Increase Op. by 1 (Pulse)
X9.6 Push Button Cycle Start 0: No Effect
1: Request for Cycle Start
(Pulse)
X9.7 Push Button Cycle Stop 0: Stop Cycle/Reset Machine (Pulse)
1: Ready for Cycle
