FANUC AC SPINDLE MOTOR Other Page 4

Other
A
A-221443/01E

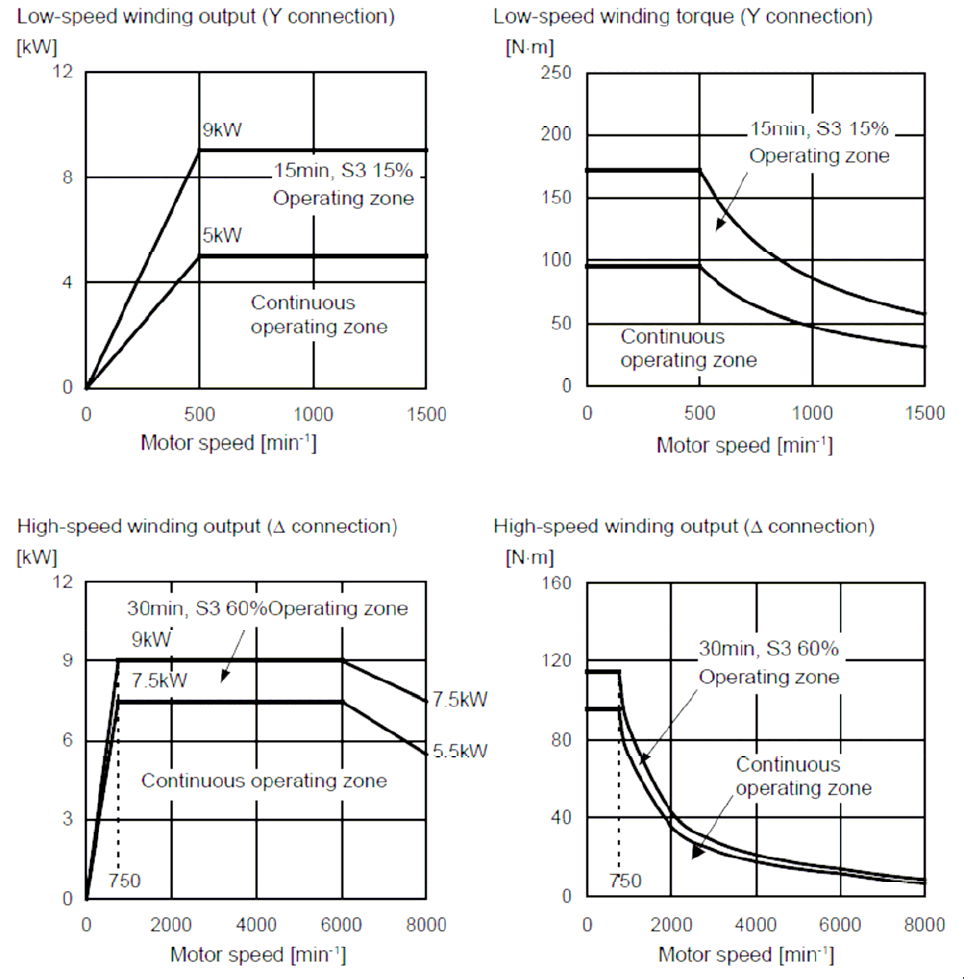

2.Output / Torque characteristics
Previous page
Next page

Contents Summary of FANUC AC SPINDLE MOTOR Other

  • Page 1FANUC AC SPINDLE MOTOR αiI series SPECIFICATIONS Model name : αiIP 15/8000HV Drawing No. : A06B-1549-B113 Caution 1.The particular which is not described in this manual and "FANUC AC SPINDLE MOTOR αi series / B-65272" should not be attempted. If you want to do that, please get an approval from FANUC
  • Page 21.Specification table Series αiIP series (400V) Model αiIP 15/8000HV Item Low-speed winding High-speed winding Cont. rated kW 5 7.5 Output (HP) (6.6) (10) (*2) 30 min [15min] rated kW 9 9 (*3) (HP) (12) (12) S3 60% [15%] kW 9 9 (*4) (*5) (HP) (12) (12) Rated current Cont. rated 19 25 A 30 min [15min
  • Page 3(*1) When the output switch function is used, the CNC soft option and switching magnetic contactor unit associated with the output switch function (Y-∆ switch) are required. See FANUC SERVO AMPLIFIER αi series DESCRIPTIONS (B-65282EN) for details of the output switch control. (*2) The rated output i
  • Page 42.Output / Torque characteristics AA-221443/01E
  • Page 53.External dimensions AA-221443/01E
  • Page 64.Spindle parameter table [SPINDLE HRV Control] (2005.06.23) MTB: GENERAL Spindle Motor: A06B-1549-B113 αiIP 15/8000HV αiMZ sensor 256 teeth Spindle Amplifier: A06B-6121-H015#H550 αiSP 15HV (TYPE A) For FS16i, FS15i A06B-6121-H015#H570 αiSP 15HV (TYPE A) For FS30i Low speed range High speed range [P
