FS 16i/18i/21i-MA/MB, FS 16/18-MC, Improvement of Setting Rotation Axis with Rotary Scale Supplement to Manual Page 4

Supplement to Manual

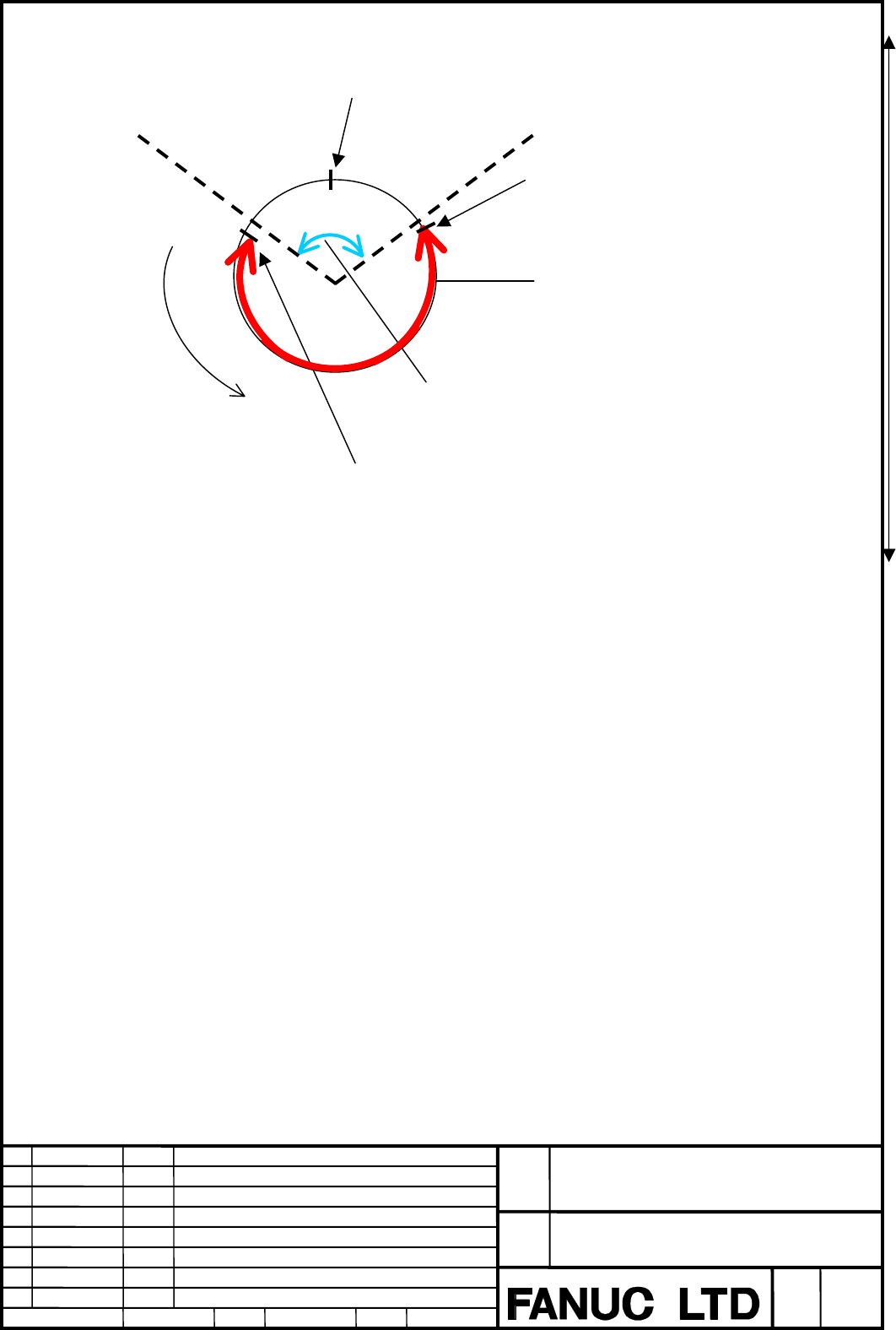

Figure 4. Image of transforming scale data
+ direction
Motion range of rotation axis
Scale data = 95000
Machine coordinate = 45.000
Scale data = 5000
Machine coordinate = -45.000
Range of transforming scale data
In this case, scale data, 110001 to 359999, are
transformed to –249999 to –1.
Machine coordinate = 0.000
scale data = 0
discontinous point of scale data
Threshold (Scale data = 110000 in “case1” and “case4”,
= 250000 in “case 2” and “case 3”)
Be sure to assign scale data outside of motion range
In threshold (parameter No.1867 or 1868).
#2
A-78734EN
Edit
Apprv.
Desig.
Sheet
Title
Draw
No.
Date
Design
Description
Date
FANUC Series 16i /18i /21i - MA/MB, 16 /18 -MC
Improvement of setting rotation axis
with rotary scale
2002/02/15
01 2002/02/15 O.Abe Newly registered
4/6
02 2002/05/28 O.Abe Out of frame #1 are altered
03 2002/08/11 Out of frame #2 are altered
O.Abe
