PROGRAMMING

B–64134EN/01

14. COMPENSATION FUNCTION

179

Specifying offset number 0, 00, or 0000 cancels offset.

NOTE

When the tool figure offset number having the same value

as the tool wear offset number is specified (parameter No.

5002#1 (LGN) is 0), a specified T code having offset number

2 does not cancel the tool figure offset. When parameter

No. 5002#5 (LGC) is set, however, offset number 0 can be

used to cancel the tool figure offset too.

When parameter TGC (No. 5003#7) is set to 1, a reset can also cancel the

tool figure offset.

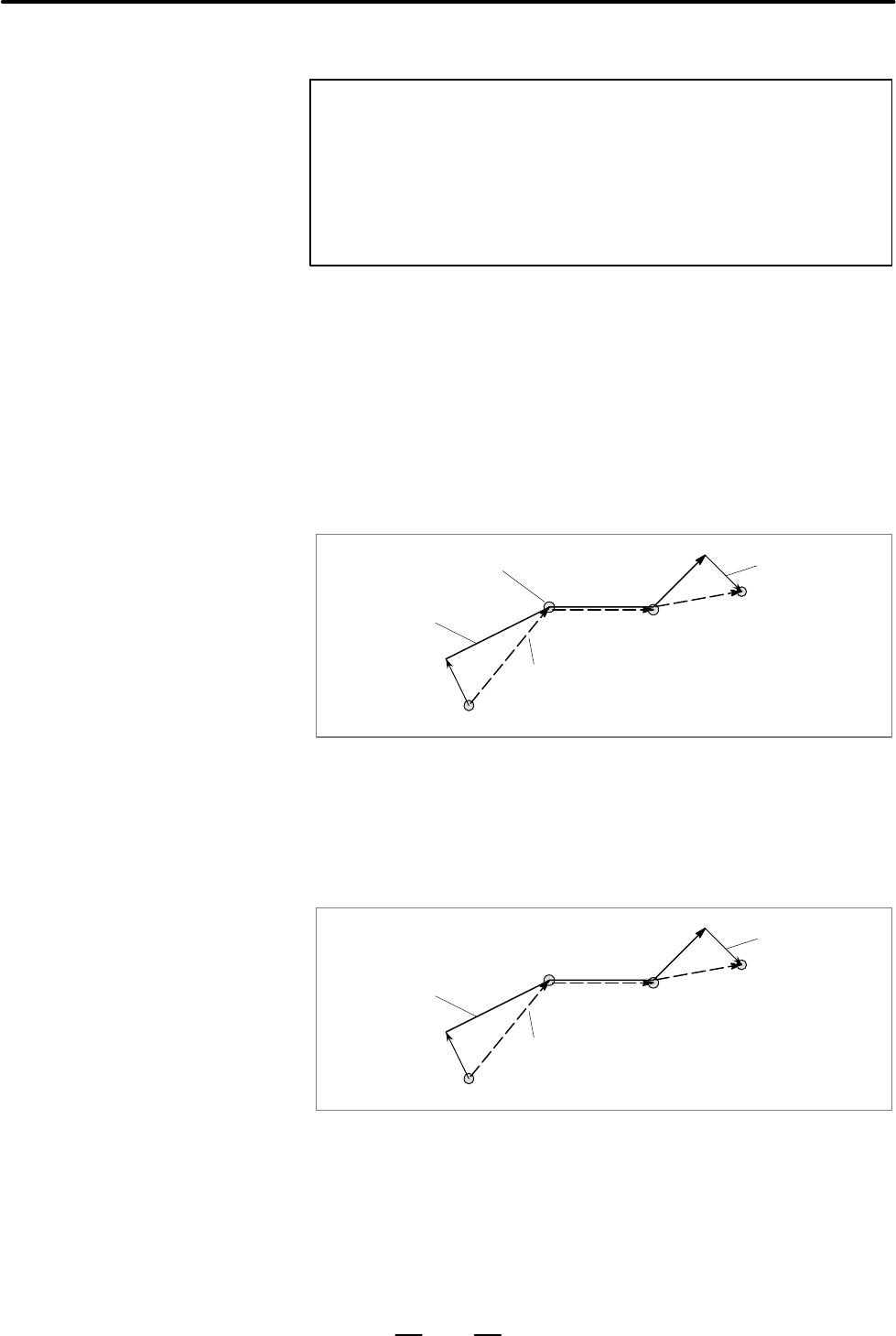

1. When a tool geometry offset number and tool wear offset number are

specified with the last two digits of a T code

(when LGN, bit 1 of parameter No.5002, is set 0),

N1 X50.0 Z100.0 T0202 ;Specifies offset number 02

N2 Z200.0 ;

N3 X100.0 Z250.0 T0200 ; Cancels offset

Programmed

path after work

coordinate

system shift

Absolute command

Offset cancelOffset cancel

Tool path after offsetTool path after offset

OffsetOffset

Programmed

path after work

coordinate

system shift

Absolute command

2. Assume that geometry offset is not cancelled with offset No.0

(when LGN, bit 1 of parameter No.5002, is set 1),

N1 X50.0 Z100.0 T0202 ;Tool selection number (specified tool

geometry offset number 02)

N2 Z200.0 ;

N3 X100.0 Z250.0 T0000 ; Cancels offset

Offset cancel

Tool path after offset

Offset

Programmed

path after work

coordinate

system shift

D Offset cancel

Examples
