MAINTENANCE1. METHOD OF REPLACING BATTERY

B–64134EN/01

712

One battery unit can maintain current position data for six absolute pulse

coders for a year.

When the voltage of the battery becomes low, APC alarms 3n6 to 3n8 (n:

axis number) are displayed on the LCD display. When APC alarm 3n7

is displayed, replace the battery as soon as possible. In general, the battery

should be replaced within one or two weeks, however, this depends on the

number of pulse coders used.

If the voltage of the battery becomes any lower, the current positions for

the pulse coders can no longer be maintained. Turning on the power to

the control unit in this state causes APC alarm 3n0 (reference position

return request alarm) to occur. Return the tool to the reference position

after replacing the battery.

Therefore, FANUC recommends that the battery be replaced once a year

regardless of whether APC alarms are generated.

See Section 7.1.3 for details of connecting the battery to separate absolute

pulse coders.

Obtain four commercially available alkaline batteries (size D).

(1)Turn on the power of the machine (turn on the servo amplifier).

(2)Loosen the screws of the battery case, and remove the cover.

(3)Replace the dry batteries in the case.

Note the polarity of the batteries as shown in the figure below (orient

two batteries one way and the other two in the opposite direction).

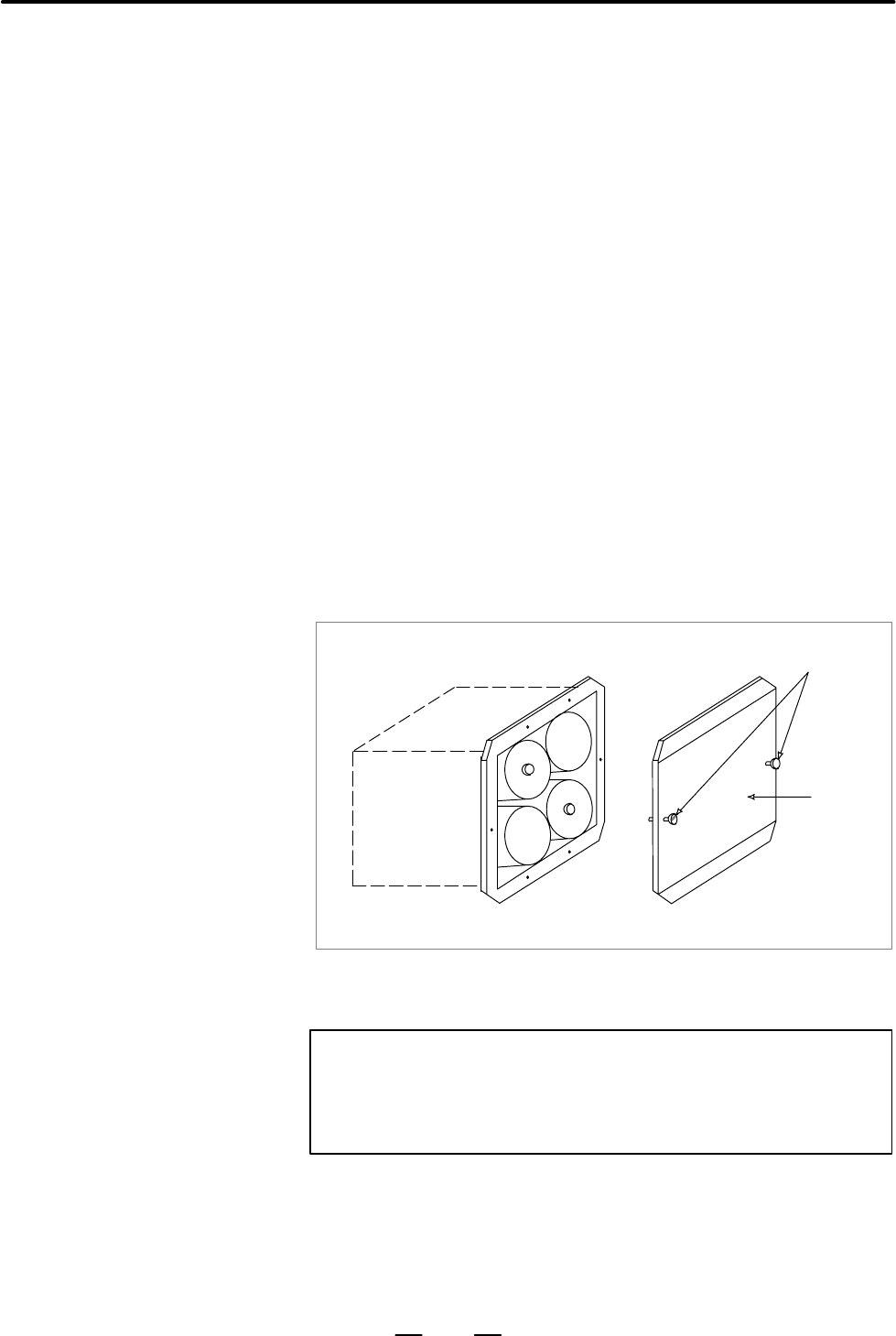

Screws

Cover

(4)After installing the new batteries, replace the cover.

(5)Turn off the power to the machine.

WARNING

If the batteries are installed incorrectly, an explosion may

occur. Never use batteries other than the specified type

(Size D alkaline batteries).

1.2

BATTERY FOR

SEPARATE

ABSOLUTE PULSE

CODERS (6VDC)

Replacing batteries
