FANUC Series 30i/31i/32i -MODEL A
Composite control
swa
pp
in
g
axis data

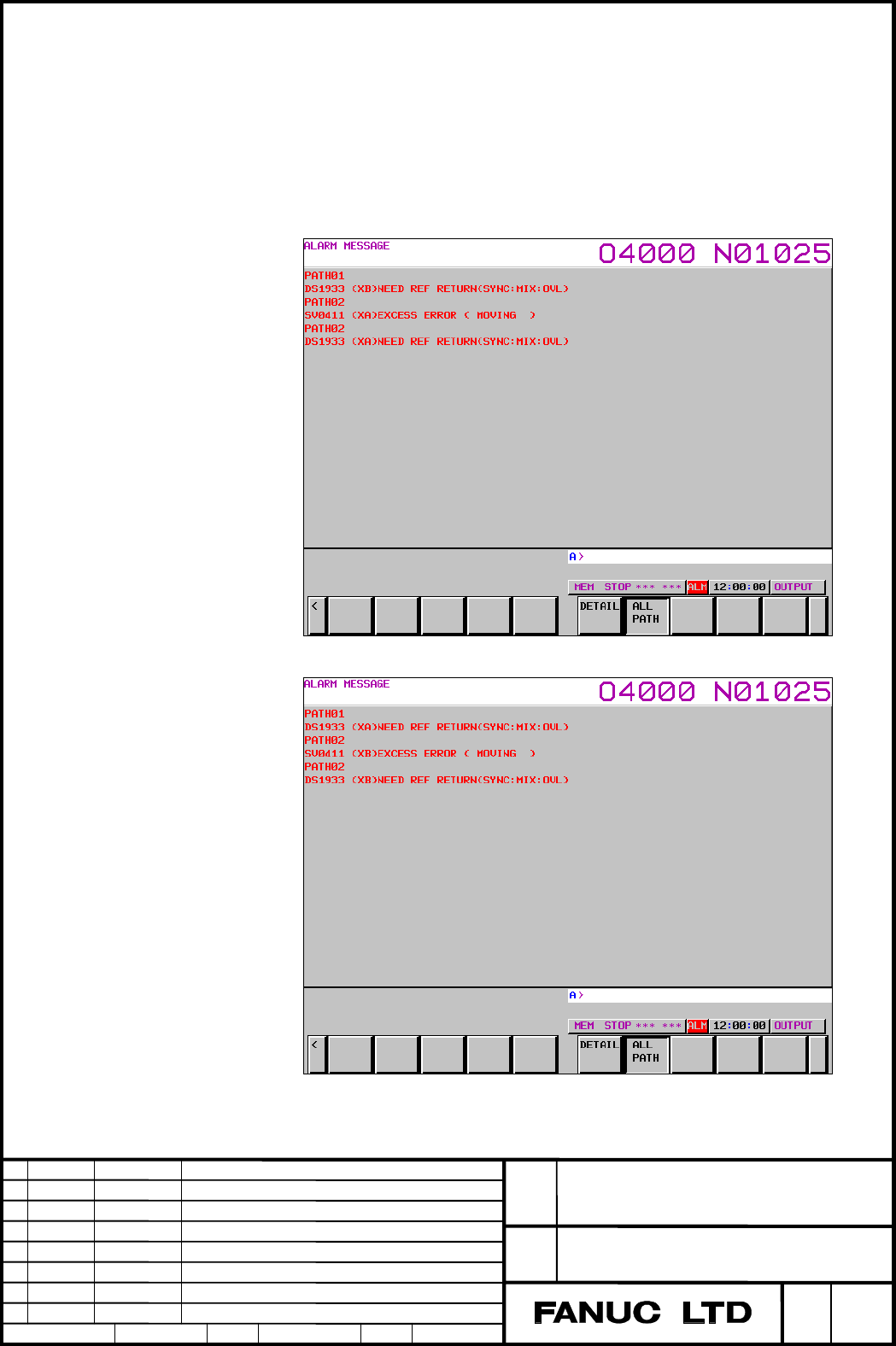

- Alarm screen
When the axis name is swapped by G10, non-Swapped axis name can be displayed in the
alarm screen by setting the parameter MALx(No.8169#4) to 1.
Following is the example when axis name is swapped by G10.
SV alarm 411 occurs to XB axis in composite control when it moves according to the
command on Path-1.
*When MALx(No.8169#4) is equal to 0, axis name displayed in the alarm screen is ‘XA’.
*When MALx(No.8169#4) is equal to 1, axis name displayed in the alarm screen is ‘XB’.
2)
