Changing of the gas piping for Fanuc Laser C1000-Model E Additional Manual Page 2
Additional Manual
TITLE
DRAW.
No.
Changing of gas piping for
FANUC LASER C1000-MODEL E
A-81053E-015
Changing of gas piping for FANUC LASER C1000-MODEL E
【Overview】
In order to improve an operation, we changed a specification of a fitting connecting
between an oscillator and an exhaust pump, used on the exhaust pump side.
We would announce a new gas piping method as follow.

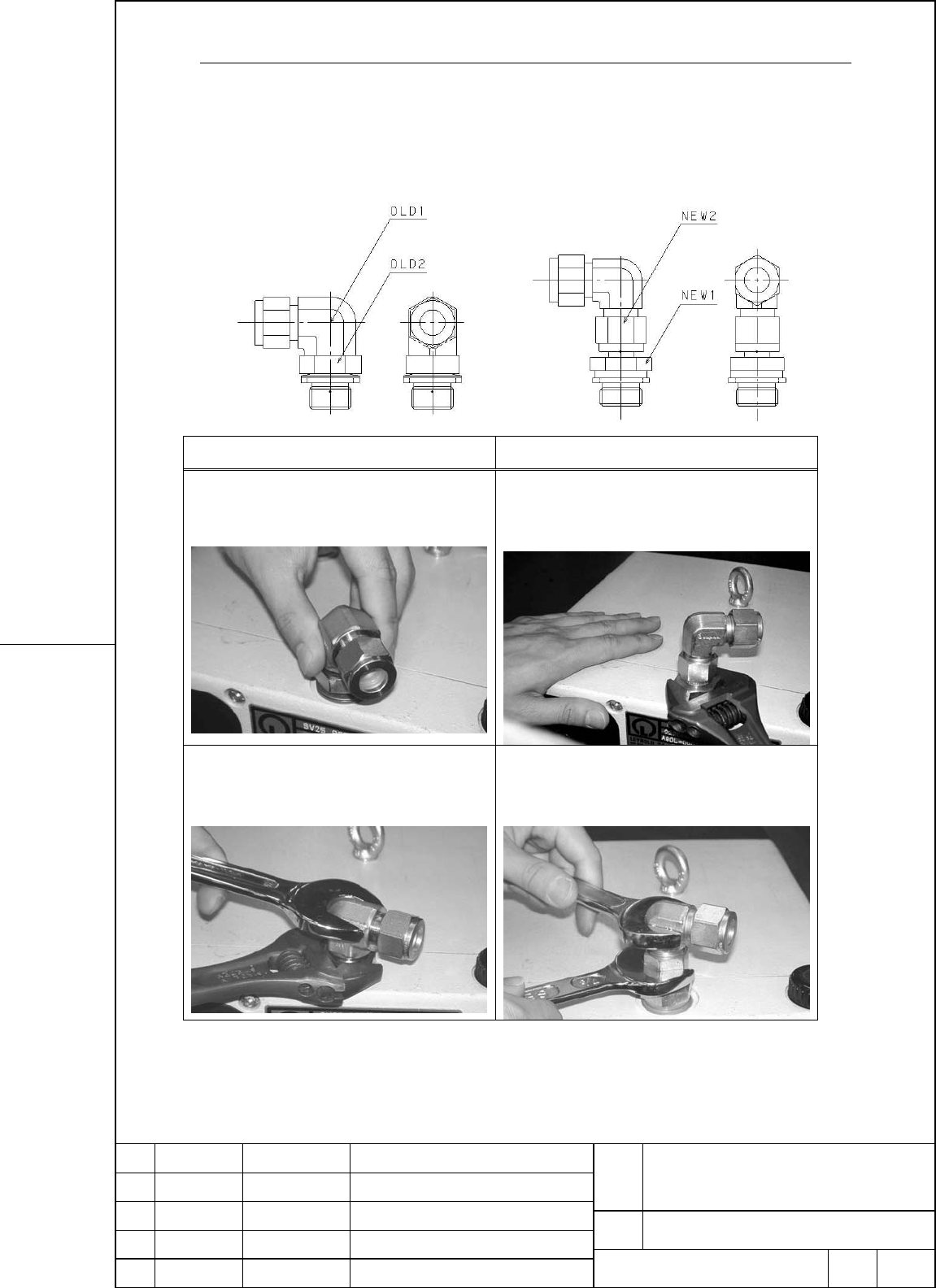

Old method New method
Tighten the "OLD1" by hand
to fix the direction of fitting
temporarily.
Tighten the "NEW1"
to fix the main body of fitting
Keeping the fitting direction
Tighten the "OLD2"
to fix the main body and direction.
Keeping the fitting direction,
Tighten the "NEW2"
to fix the direction.
The seal method changed from an O-ring to a seal washer. The seal washer can avoids the
possibility that a thread damages an O-ring.
1 / 2
Page
FANUC LTD
DESCRIPTION DESIGN DATE
EDIT
New registration MIYAKE 20010803 01
Contents Summary of Changing of the gas piping for Fanuc Laser C1000-Model E Additional Manual
- Page 1TECHNICAL REPORT (MANUAL) NO. TML01/006E Date: Aug/16 /2001 General Manager of LASER Laboratory Changing of the gas piping for FANUC LASER C1000-MODEL E 1. Communicate this report to: 〇 Your information only 〇 GE Fanuc-N, GE Fanuc-E FANUC Robotics MILACRON Machine tool builder Sales agency End user
- Page 2Changing of gas piping for FANUC LASER C1000-MODEL E 【Overview】 In order to improve an operation, we changed a specification of a fitting connecting between an oscillator and an exhaust pump, used on the exhaust pump side. We would announce a new gas piping method as follow. Old method New method Ti
- Page 3【Note】 Clean the seal surface, and check that there are no scratches on the surface. The torque tightening the "NEW1" is about 45[N m] The torque tightening the "NEW2" is about 40[N m] (These data are adapted only to the first tightening) Tightening with a quite weak torque, it would make a seal per
