  2. Series 30i-Model A, Live Tool Control with Servo Motor

Series 30i-Model A, Live Tool Control with Servo Motor Additional Manual Page 25

Additional Manual
A-79595E
Title
Draw
No.
Ed. Date Design Description
Date May.24.’04 esig. Apprv.
25/33
Sheet
FANUC Series 30i-MODEL A
Live Tool Control With Servo Motor

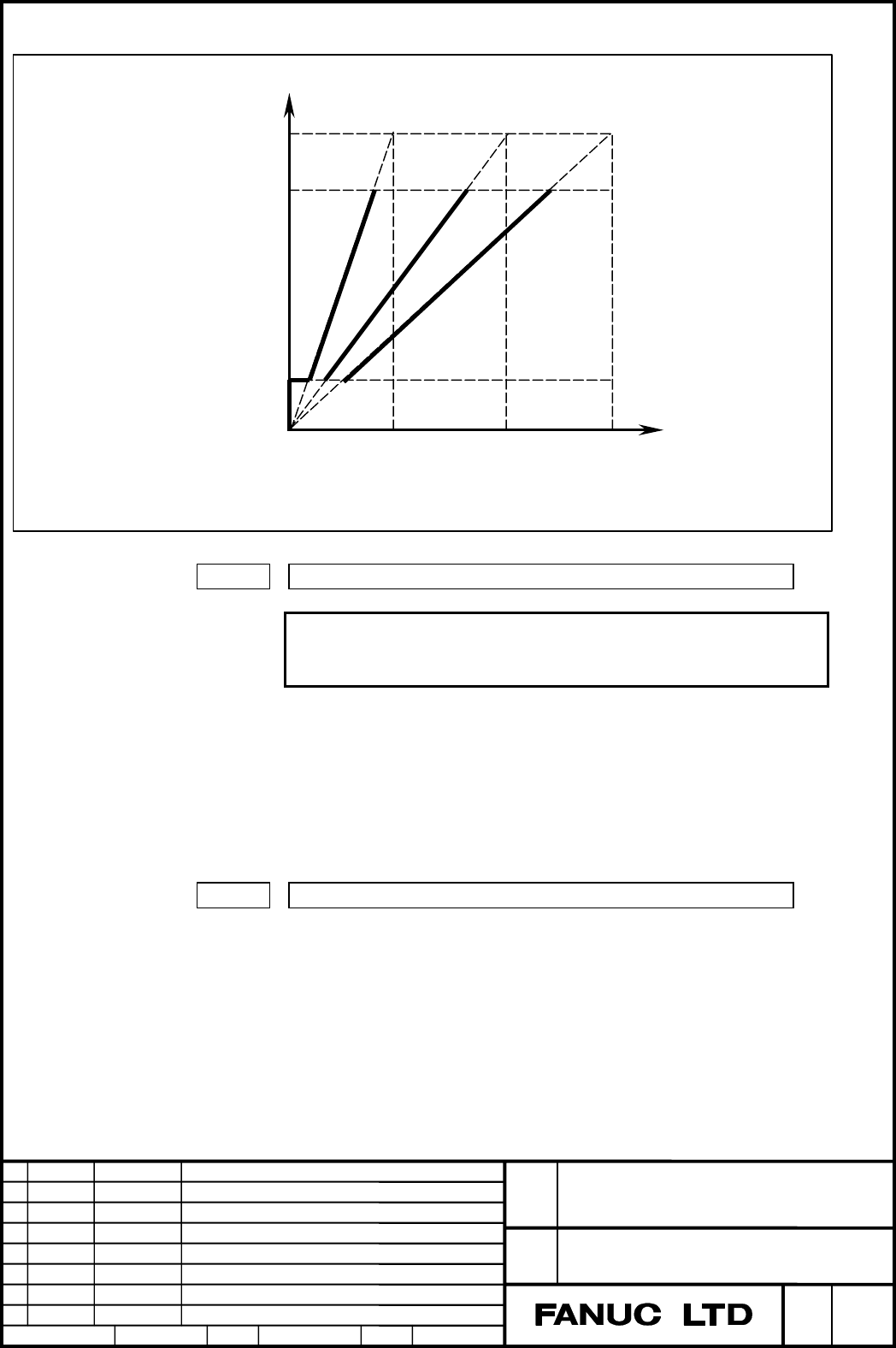

Spindle motor max. clamp speed
(Parameter No.3736)
Spindle speed command
(S command)
Max. speed (4095, 10V)
Spindle motor minimum clamp speed
(Parameter No.3735)
Spindle motor speed
Gear 1
Max. speed
(Parameter
No.3741)
Gear 2
Max. speed
(Parameter
No.3742)
Gear 3
Max. speed
(Parameter
No.3743)
3775 Default P command value for spindle selection in multi-spindle control
NOTE
When this parameter is set, the power must be turned
off before operation is continued.
[Input type] Parameter input
[Data type] Word path
[Valid data range] 0, 1 to 32767
When bit 3 (MPP) of parameter No.3703 is set to 1 and bit 2 (MPA) of
parameter No.3706 is set to 1 in multi-spindle control, set a default P
command value applicable if S_ P_ is not specified even once after
power-up.
3781 P code for selecting the spindle in multi-spindle control
[Input type] Parameter input
[Data type] Word spindle
[Valid data range] 0 to 32767
If bit 3 (MPP) of parameter No. 3703 is set to 1, set the P code to select each
spindle under multi-spindle control. Specify the P code in a block containing
the S command.
Example)
If the P code value for selecting the second spindle is set to 3, S1000 P3;
causes the second spindle to rotate at S1000.
