Series 0i Mate - MB Operators manual Page 278

Operators manual

Page of 842

/ 842

PROGRAMMING14. COMPENSATION FUNCTION

B–63864EN/03

254

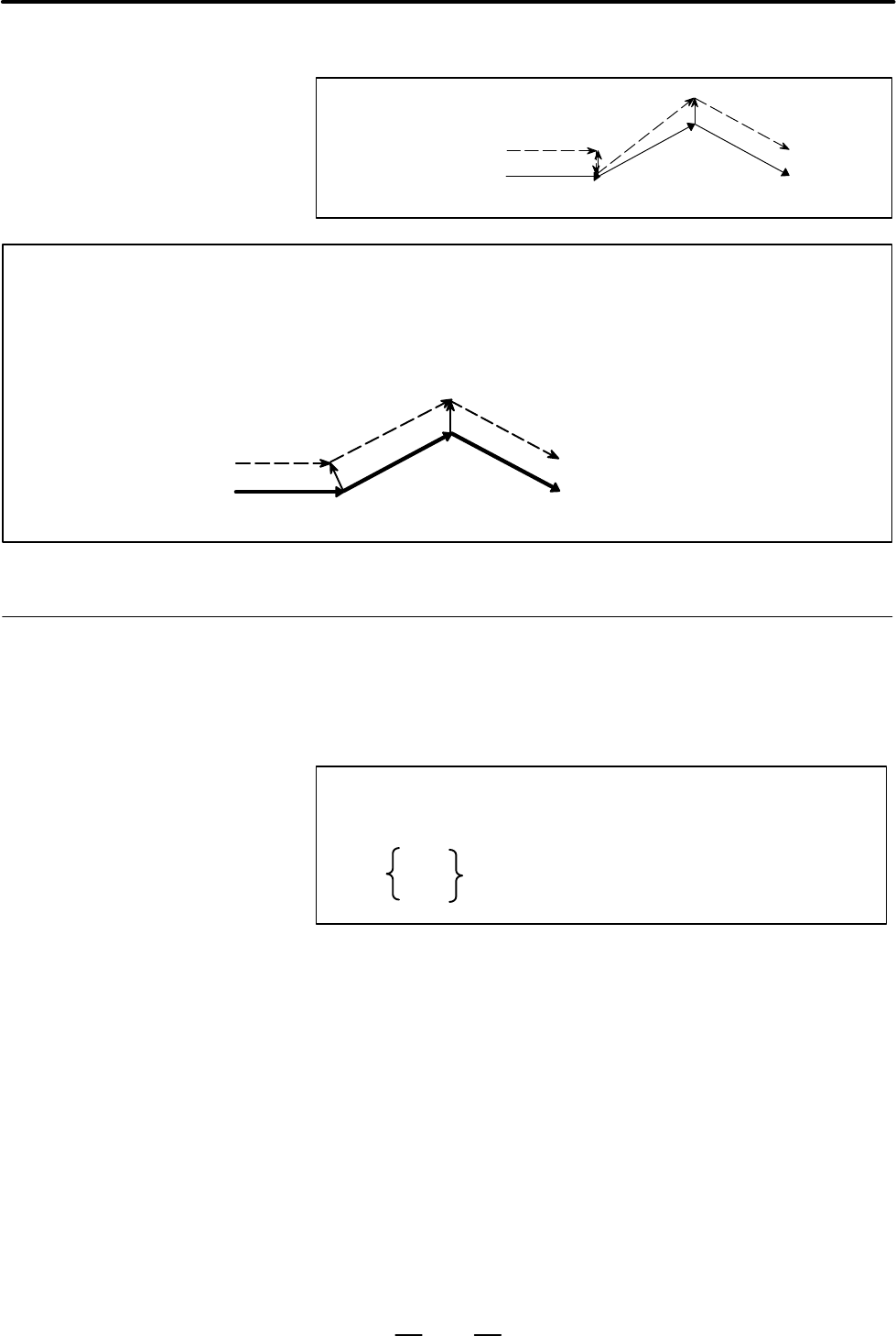

When CCN (bit 2 of parameter No.5003)=1

[FS15 Type]

(G41G01)

G01

G29

Intermediate position=return position

NOTE

When a G29 command is specified for an axis that is not in the cutter compensation C plane

in cutter compensation C mode, a perpendicular vector is generated at the end point of the

previous block, and the tool does not move. In the next block, an intersection vector is

generated (in the same way as when two or more continuous blocks do not specify any move

commands).

G29Z__

(G41G01X_Y_)

G01G01

By specifying G39 in offset mode during cutter compensation C, corner

circular interpolation can be performed. The radius of the corner circular

interpolation equals the compensation value.

In offset mode

G39 ;

;

I_J_

I_K_

J_K_

G39

When the command indicated above is specified, corner circular

interpolation in which the radius equals compensation value can be

performed. G41 or G42 preceding the command determines whether the

arc is clockwise or counterclockwise. G39 is a one–shot G code.

When G39; is programmed, the arc at the corner is formed so that the

vector at the end point of the arc is perpendicular to the start point of the

next block.

When G39 is specified with I, J, and K, the arc at the corner is formed so

that the vector at the end point of the arc is perpendicular to the vector

defined by the I, J, and K values.

14.5.9

Corner Circular

Interpolation (G39)

Format

Explanations

D Corner circular

interpolation

D G39 without I, J, or K

D G39 with I, J, and K
