2. OPERATIONAL DEVICES
409

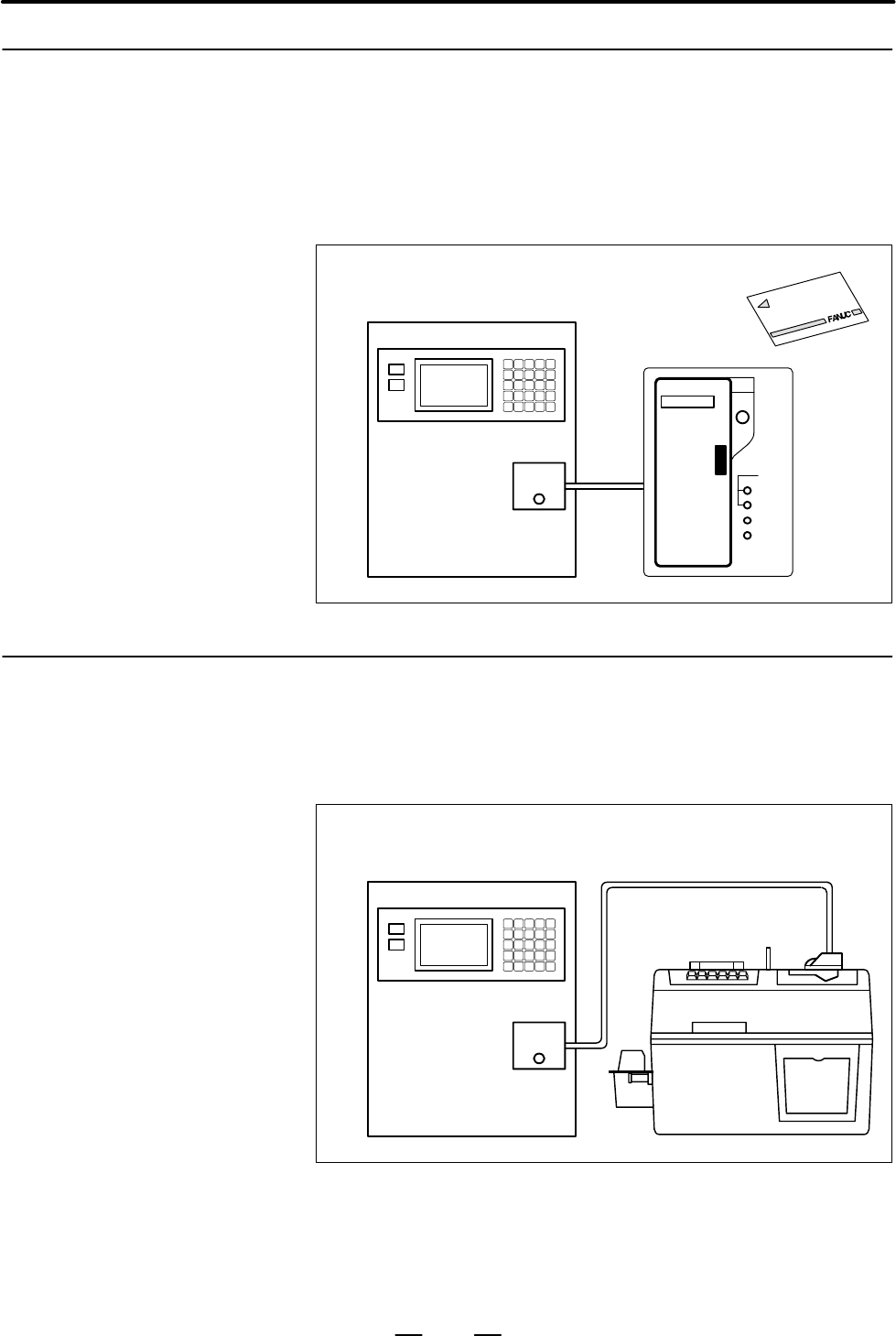

An FA Card is a memory card used as an input medium in the FA field.
It is a card–shaped input/output medium featuring a high reliability, small
size, high capacity, and maintenance–free operation.
When an FA Card is connected to the CNC via the card adapter,
machining programs stored in the CNC can be transferred to and saved
in an FA Card. Machining programs stored on an FA Card can also be
transferred to the CNC.
RS–232–C Interface
(Punch panel, etc.)
READY
EJECT
READ
WRITE
ALARM
RESET
FANUC
The FANUC PPR consists of three units: A printer, paper tape punch, and
paper tape reader.
When the PPR is used alone, data can be read from the tape reader and
printed or punched out. It is also possible to perform TH and TV checks
on data that was read.
RS–232–C Interface
(Punch panel, etc.)
2.4.3
FANUC FA Card
2.4.4
FANUC PPR
