1.MANUAL GUIDE 0i MANUAL GUIDE 0i B-63864EN/03
- 712 -

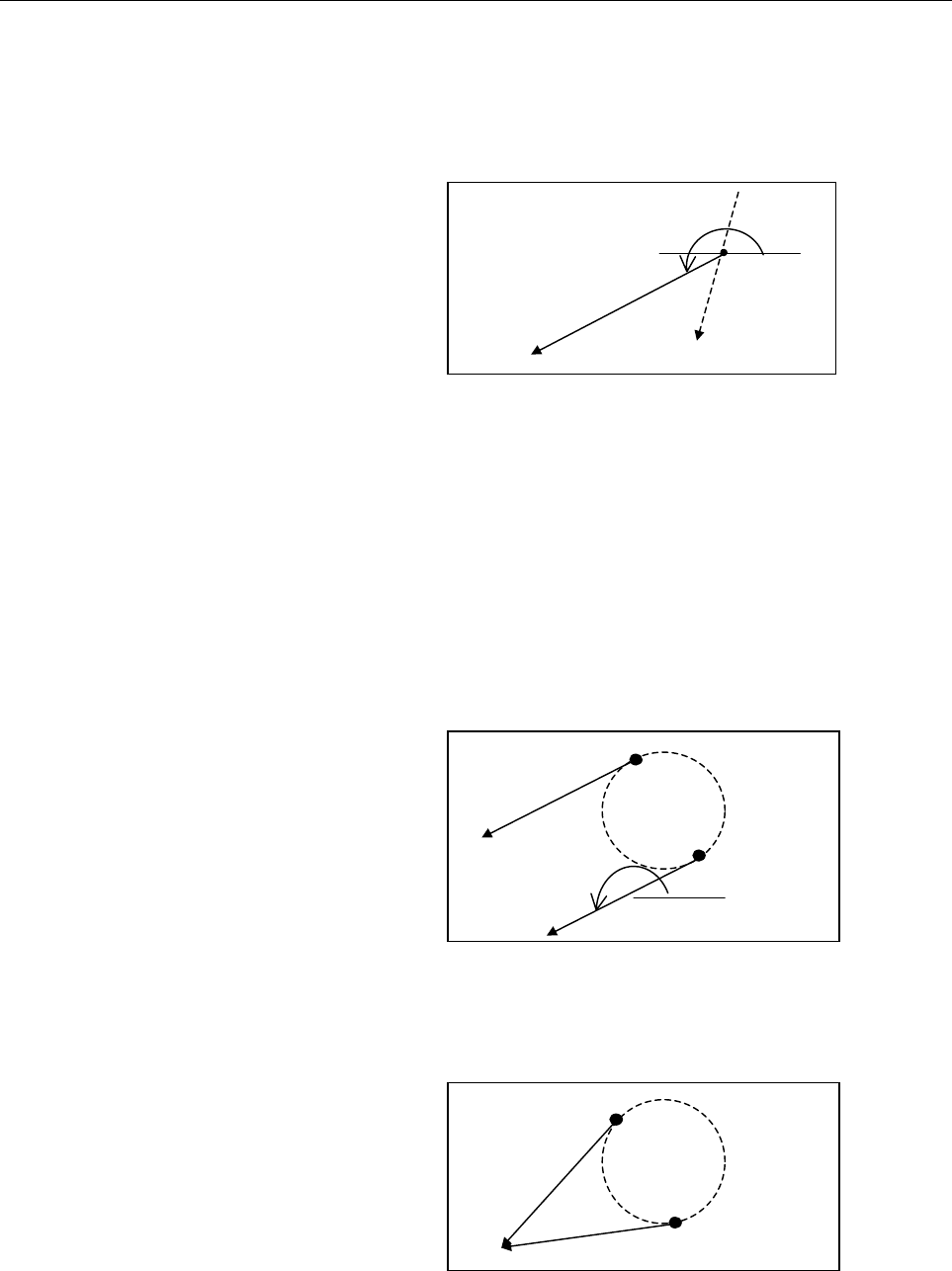

(3) When the preceding figure is pending, and "TOUCH LAST" is
specified in the line.
(a) Both X and Y, and A are inputted
-> The cross point between the preceding figure is
calculated.
When the preceding figure is an arc, the cross point
selection screen is displayed, so select a necessary
one.
(4) When the preceding figure is pending arc, and "TOUCH LAST"
is specified in the line.
It is assumed that the radius and the center point coordinate (I,J)
of arc have already inputted.
(a) Only A is inputted
-> The tangential point selection screen is displayed, so
select a necessary one.
This line will be pending.
(b) Both X and Y are inputted
-> The tangential point selection screen is displayed, so
select a necessary one.
This line will be determined.
A
(X,Y)
Cross point
Tangential point
A
Tangential point
Tangential
point
Tangential
point
Previous page
Next page
