Connection between alpha i series amplifiers and Power Failure Backup Modul Additional Manual Page 4
Additional Manual
01
Ed. Date
S.Hanyu
Name
Newly designed
Detail of modification
Subject
DWG.No
Connection between
α
i series amplifiers
and Power Failure Backup Module
A-53866E-405
FANUC LTD
FANUC LTDFANUC LTD
FANUC LTD
Page
3/
5
21.Sept.’01
3. Detailed connection of cables
3. Detailed connection of cables3. Detailed connection of cables
3. Detailed connection of cables

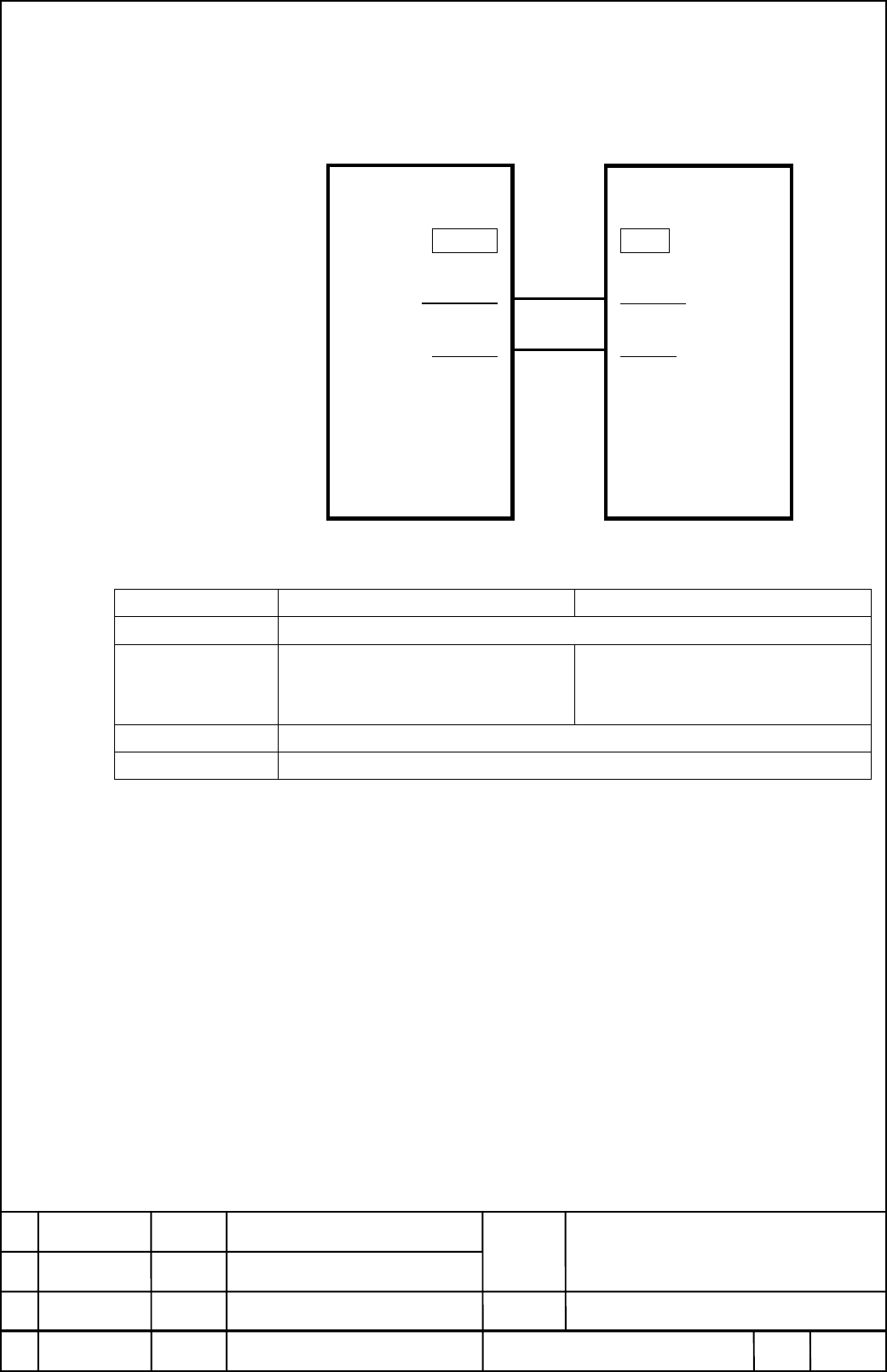

(1) Cable K75
Cable K75 is for supplying the control power (DC24V) to Power Failure Backup Module.
Connector specification
CXA2A CX14
Manufacturer tyco Electronics AMP
Specification
D-2100 series
Receptacle housing 1-1318119-4
Receptacle contact 1318107-1
D-3100 series
Receptacle housing 1-178288-3
Receptacle contact 1-175218-1
Cable size 0.5mm
2
,
AWG20
Cable sheath size 1.08-2.83 mm
(2) About the detailed connection for the other cable, refer to the following document.
For Power Failure Backup Module A06B-6077-H001 : B-65162/03-01
For Power Failure Backup Module A06B-6077-H002 : B-65162/03-08
SVM
CXA2A
24V (A1)
24V (A1)24V (A1)
24V (A1)
24V (B1)
0V (A2)
0V (A2)0V (A2)
0V (A2)
0V (B2)
MIFA (A3)
BATL (B3)
*ESP (A4)
XMIFA (B4)
K75
CX14
