FANUC Series 30i-MODEL A
Tool Axis Direction Tool Length
Compensation
Ed. Date Design Description
Date
Jan.16.’04 Design. Apprv.
- Spindle center compensation
Compensation of the spindle center is performed.
The amount of spindle center compensation is set in parameter No. 19662.
Since parameter No. 19662 is an axis type parameter, the compensation
amount for three axes (X, Y, and Z) can be set in this parameter.
Tool tip
（
p
ro
g
rammed
p
oint）
Tool length
com
p
ensation amount
Second rotation axis
center
control
oint
Rotation center compensation
vector
p
arameter
（
No.19661
）
First rotation axis center
Tool holder offset
p
arameter
（
No.19666
）
Tool mountin
g
p
osition
S
p
indle center
Spindle center compensation
vector
p
arameter（No.19662）
Machine coordinate ori
g
in
Work
p
iece coordinate ori
g
in

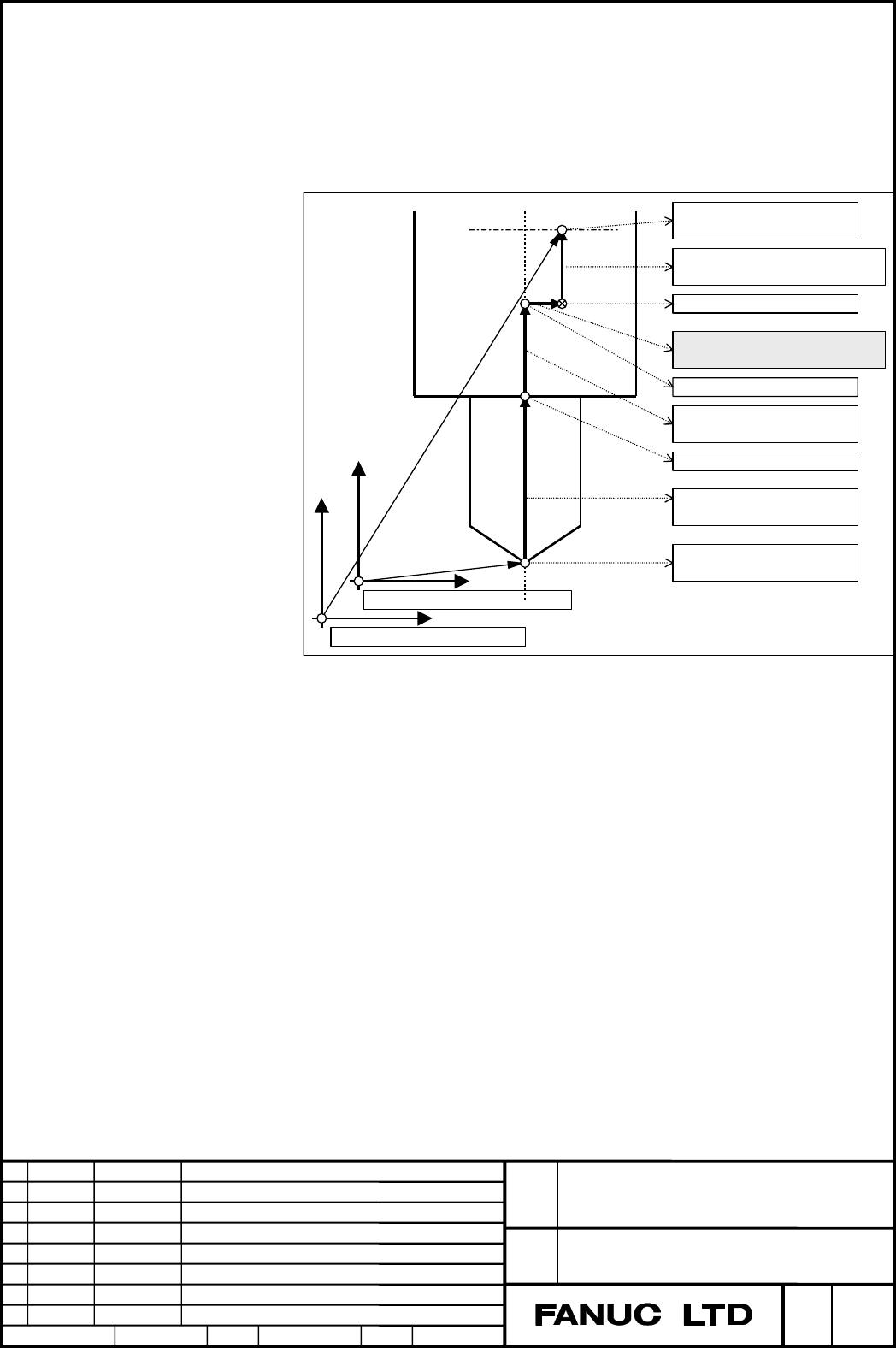

Fig. 1.2 (b) Spindle Center Compensation
