Series 30i-MODEL A, Tool axis direction tool length compensation Additional Manual Page 4

Additional Manual
A-79381E
Title
Draw
No.
2/23
page
FANUC Series 30i-MODEL A
Tool Axis Direction Tool Length
Compensation
Ed. Date Design Description
Date Jan.16.’04 Design. Apprv.
1.1 Tool Axis Direction Tool Length Compensation
General
When a five-axis machine that has two axes for rotating the tool is used,tool
length compensation can be performed in a specified tool axis direction on a
rotation axis. When a rotation axis is specified in tool axis direction tool
length compensation mode, tool length compensation is applied in a
specified tool axis direction on the rotation axis by the compensation value
specified in the H code. That is, movement is made along the three linear
axes (Xp, Yp, Zp).Unless otherwise noted in the explanation of this function,
the two rotation axes are assumed to be the B-axis and C-axis.
C
B
Z
Y
X
Workpiece
C
B
Tool axis direction

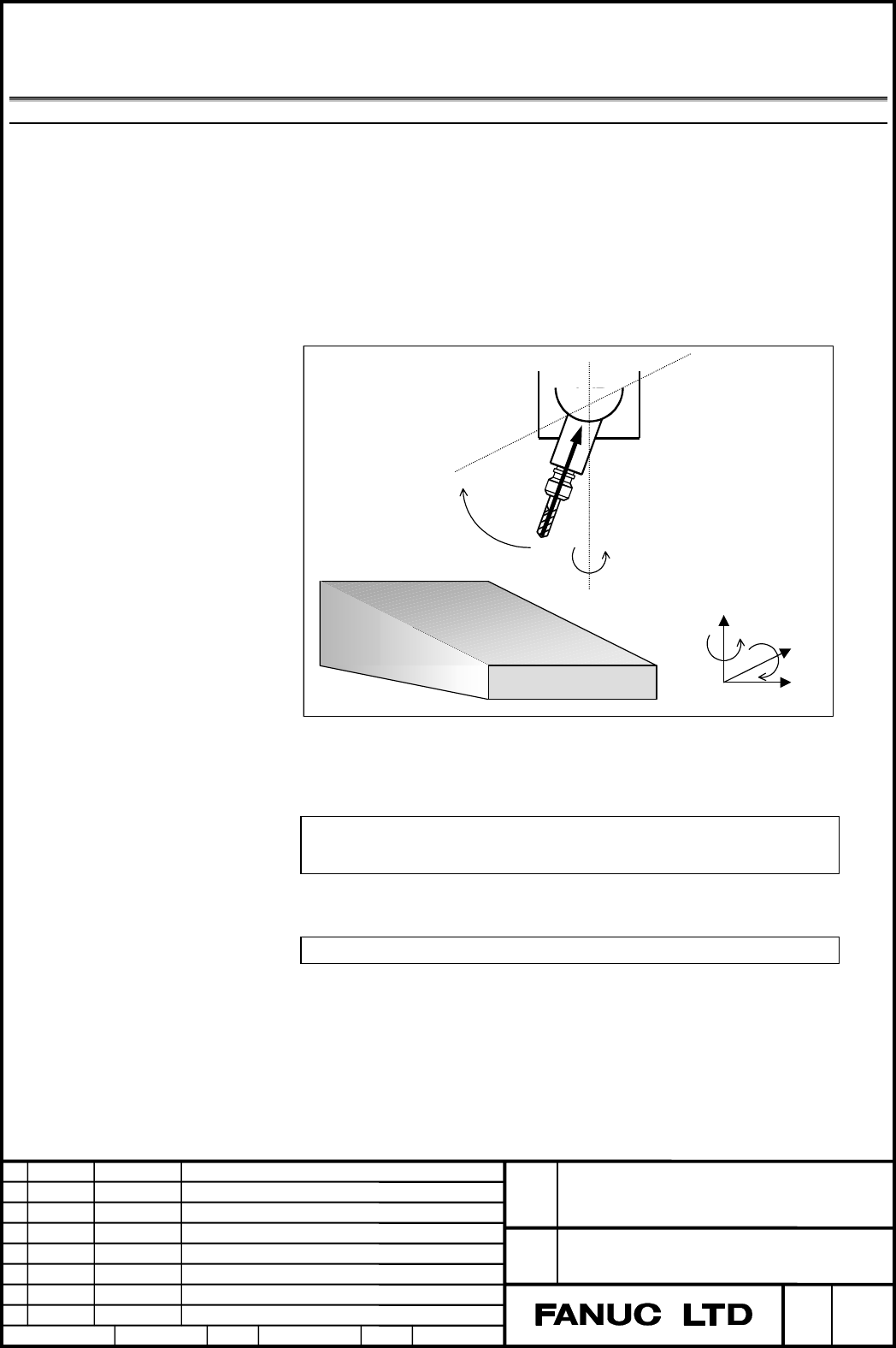

Fig. 1.1 (a) Tool Axis Direction Tool Length Compensation
Format
- Command for tool axis direction tool length compensation
G43.1 Hn；
n : Offset number
- Command for cancellation of tool axis direction tool length compensation
G49；
