Series 30i-MODEL A, Tool axis direction tool length compensation Additional Manual Page 16

Additional Manual
A-79381E
Title
Draw
No.
14/23
page
FANUC Series 30i-MODEL A
Tool Axis Direction Tool Length
Compensation
Ed. Date Design Description
Date
Jan.16.’04 Design. Apprv.
Limitation
- Automatic reference position return command (G28, G29, G30)
Never specify an automatic reference position return command (G28, G29,
or G30) in tool axis direction tool length compensation mode.
If an automatic reference position return command is specified in tool axis
direction tool length compensation mode, the compensation vector is
cancelled at the time of reference position return. So, correct tool axis
direction tool length compensation is not performed in subsequent
movement along linear axes.

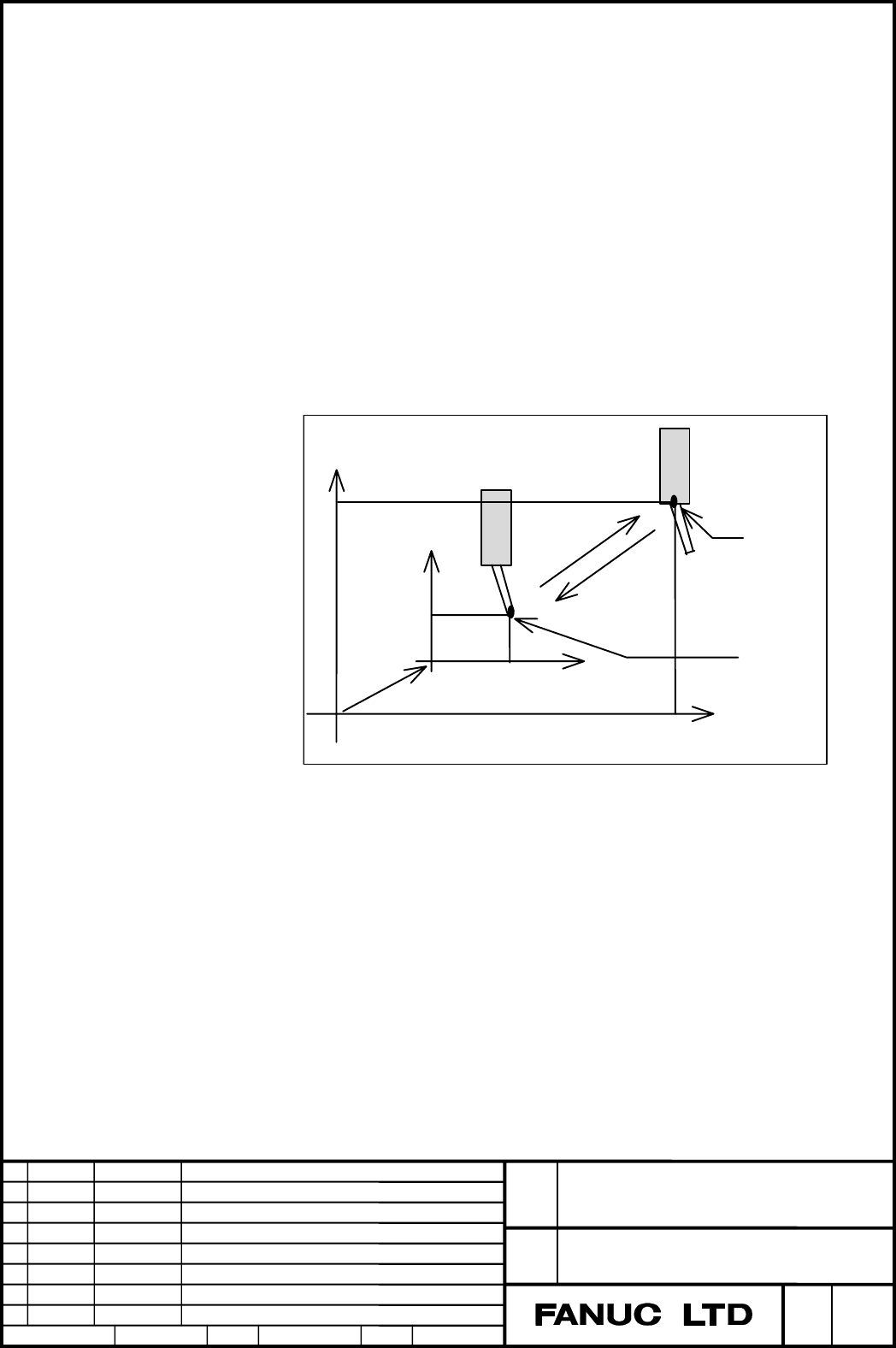

- Machine coordinate system positioning (G53)
When machine coordinate system positioning (G53) is performed, the
compensation vector is temporarily cancelled in the block, but is applied
when movement is next performed.
Workpiece coordinate
system origin
Machine coordinate system origin
◎
◎
G00
G53
Specified
point
Specified
point
