- Rewind of a drawing target program
If the execution of drawing of a selected program has ended or is stopped halfway, press the
[REWIND] soft key to restart drawing from the beginning of the program.
- Starting/ending drawing
To draw the tool path of a program selected for drawing, press one of the following soft keys
displayed by step 3 mentioned above:
・ [START] soft key
This soft key starts drawing from the head of the program.
・ [1 BLOCK] soft key
This soft key executes the program for drawing and stops temporarily on a
block-by-block basis as with ordinary single block stop operation.
If a program is executed with a soft key above, the soft key display is changed to the
following:

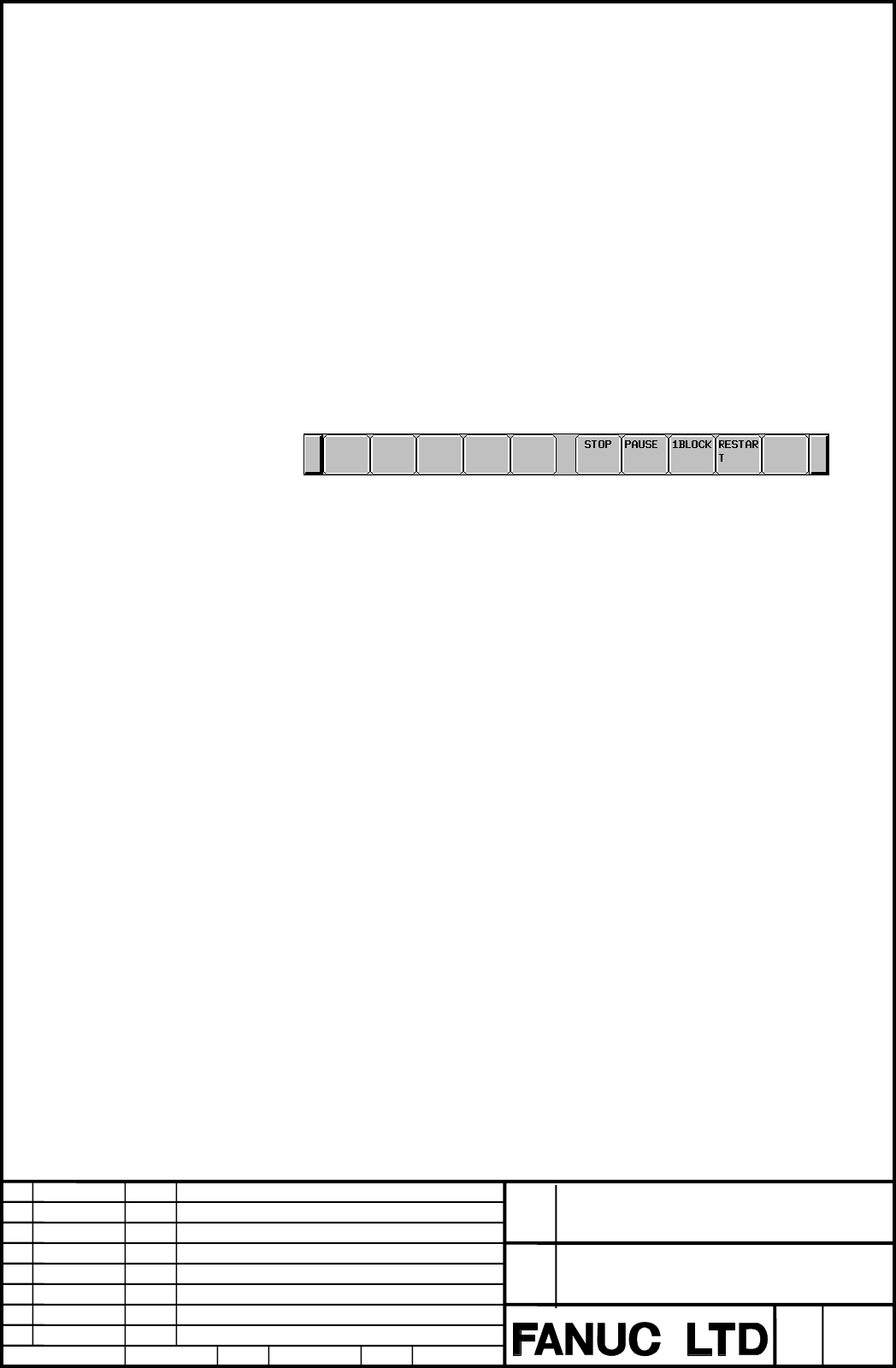

Fig. 1.1.1.2 (f) Soft keys displayed during drawing execution
The operations of these soft keys are as follows:
・ [STOP] soft key
This soft key terminates the execution of the drawing target program to stop drawing.
・ [PAUSE] soft key
This soft key temporarily stops the execution of the drawing target program to stop
drawing temporarily.
・ [1 BLOCK] soft key
This soft key executes the program for drawing and stops drawing temporarily on a
block-by-block basis as with ordinary single block stop operation.
・ [RESTART] soft key
If the [RESTART] soft key is pressed in the stop state set by the [PAUSE] soft key or
the [1 BLOCK] soft key, the execution of drawing can be restarted from the block where
drawing is stopped.
Previous page
Next page
